Disc Brake Hub 12 inch 6 stud TX 15123 and 30210 bearing dacromet

Disc Brake Hub 12 inch 6 stud TX 15123 and 30210 bearing dacromet

$239.99
$239.99
Tax included. Shipping calculated at checkout.

DH58LTXG

Product Information

LoadForce dacromet disc brake hub 12-inch x 5/8 inch 6 stud with TX bearing. Supplied with quality Japanese bearings and Australian made hub marine seal.

6 stud measurements:

  • Rotor diameter: 305mm (12 inch)
  • Rotor thickness: 16mm (5/8 inch)
  • Rotor hat height: 80mm
  • Spigot diameter: 105mm
  • Stud diameter: 1/2 inch
  • PCD (Pitch circle diameter): 139.7mm (5.5 inches).
  • Stud distance: 70mm.
  • Bearing: TX: Inner 30210/10; Outer 15123/245.

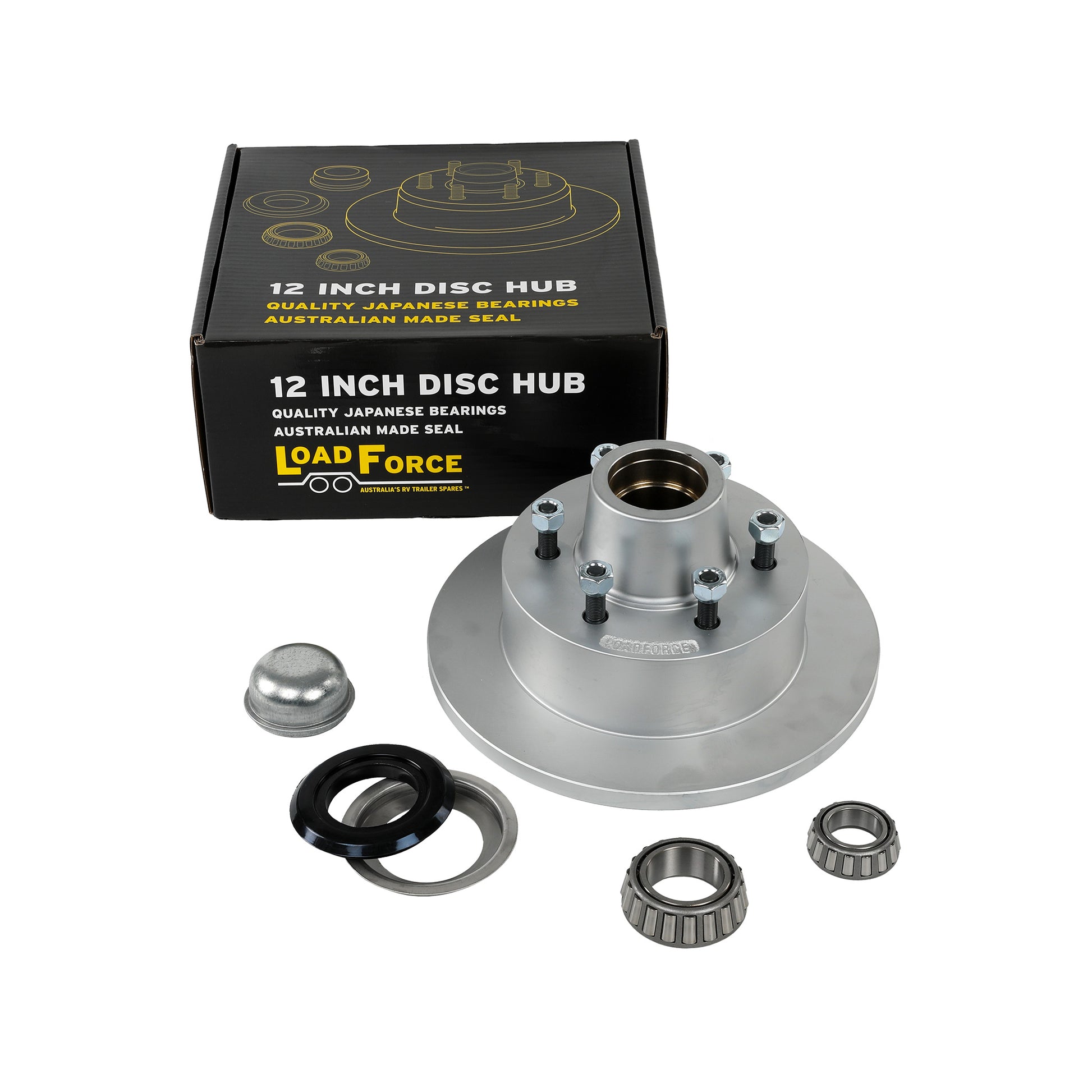

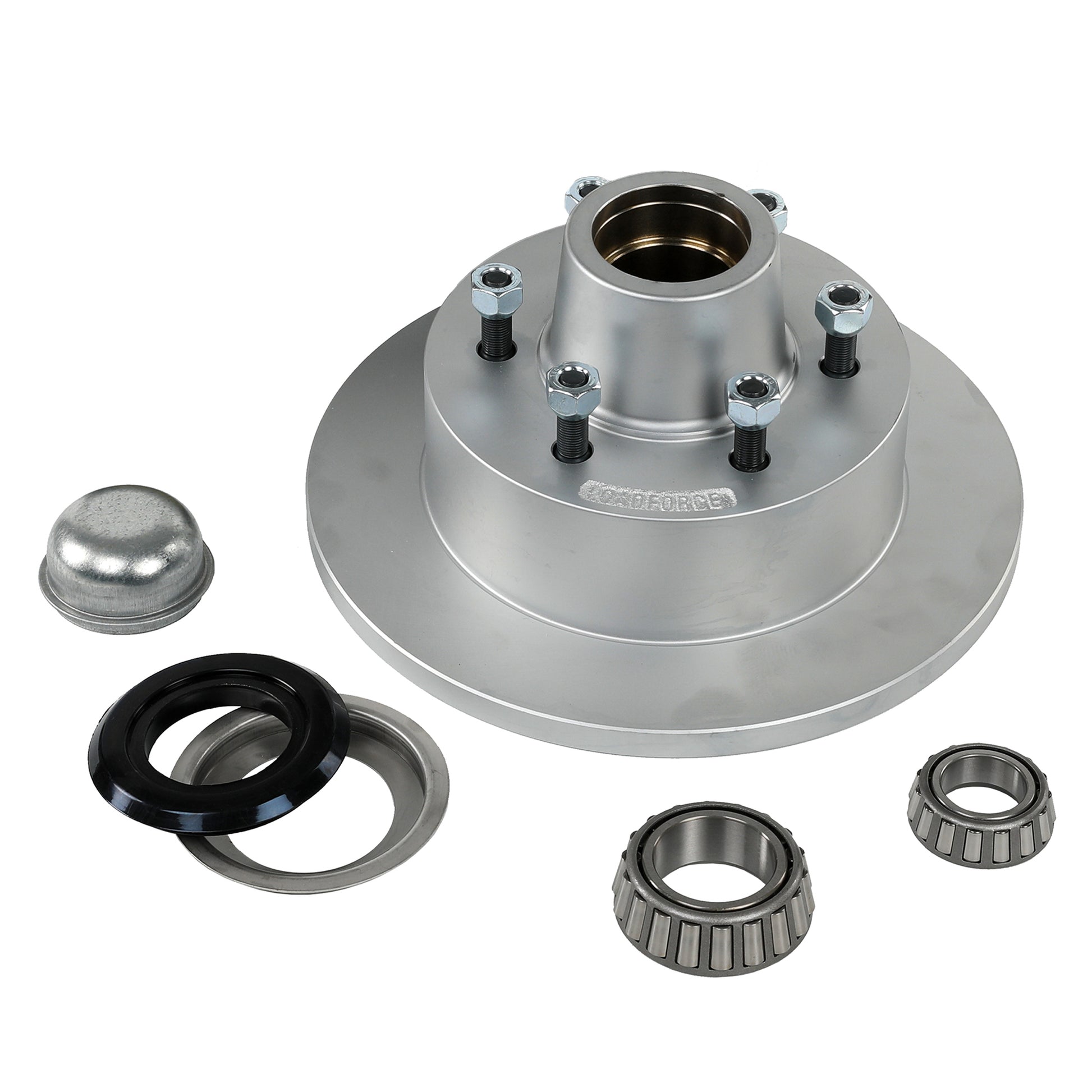

Comes boxed complete with studs, nuts, bearings, marine seal and dust cap.

5 Stud LandCruiser version can be found here.

More information on our full range of disc hub measurements and identification.

Specifications

  • Specifications:
  • Disc Diameter: 305mm (12")
  • Disc Thickness: 16mm (5/8")
  • Stud Pattern: Landcruiser 6 Stud (1/2" Stud Diameter)
  • PCD: 139.7mm
  • Stud Distance: 70mm
  • Koyo Japanese Bearings: TX/AL-KO 2T - 30210/10 & 15123/245 bearings and cones
  • High quality marine seal
  • Dust cap
  • Fitted studs & nuts
  • Finish: Dacromet Coated for Corrosion Resistance
