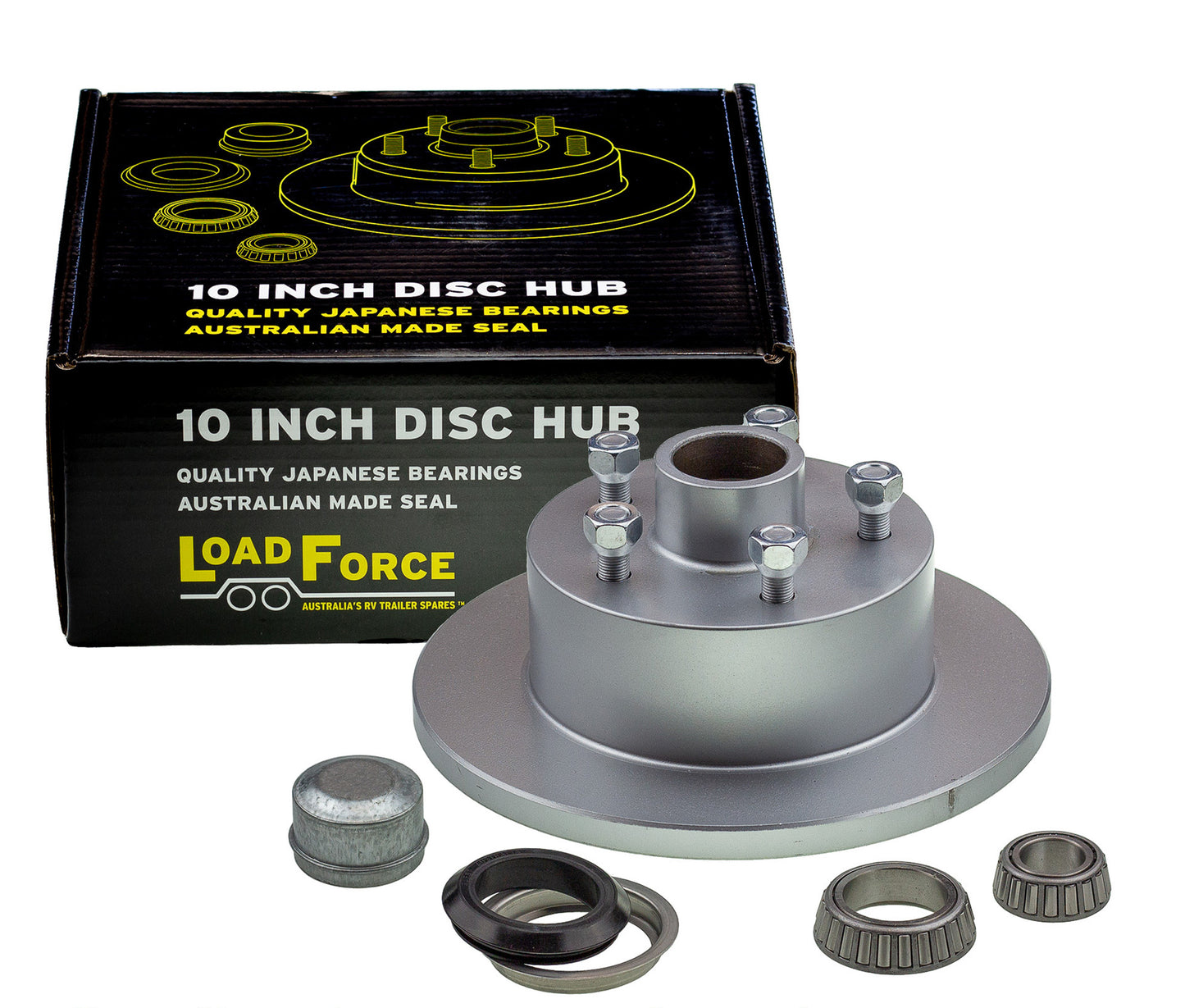

LoadForce Disc Brake Hub 10 x 5/8 inch Ford 5 stud LM (Holden) bearing galvanised

Product Description
$99.00 incl. GST
Maximum quantity available reached.

LoadForce galvanized trailer disc brake hub 10-inch x 5/8 inch Ford 5 stud with LM (Holden) bearing. Supplied with quality Japanese bearings and Australian made hub seal.

Ford 5 stud measurements:

  • Stud diameter: 1/2 inch.
  • PCD (Pitch circle diameter): 114.3mm (4.5inches).
  • Stud distance: 67mm.
  • Bearing: Slimline / Ford: Inner LM67048/10 ; Outer LM11949/10.

All disc brake hubs come boxed complete with studs, nuts, bearings, seal and dust cap.

Ford pattern with SL (Ford) bearings can be found here.

More information on our full range of disc hub measurements and identification.

Part no.: DH58FHG-10
