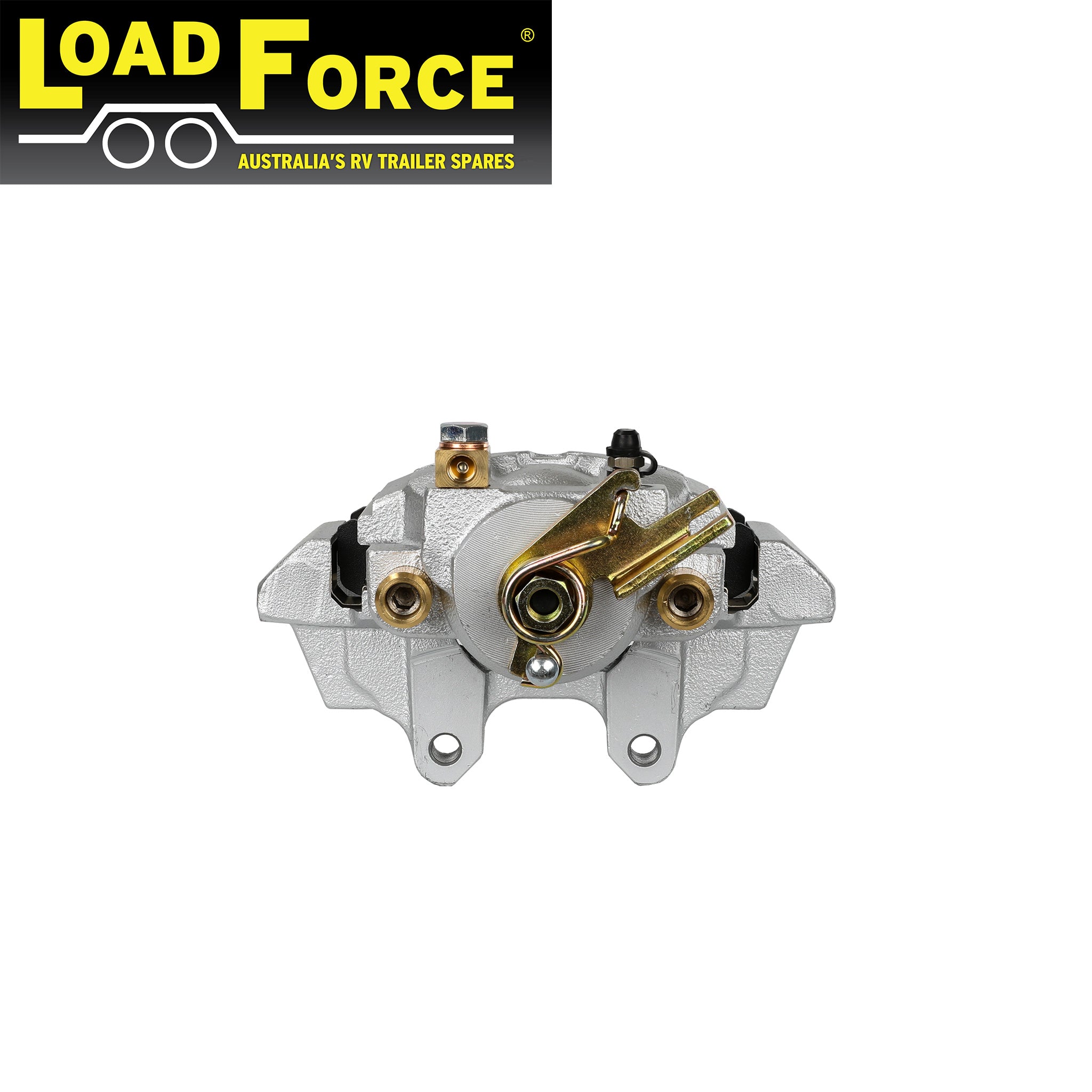

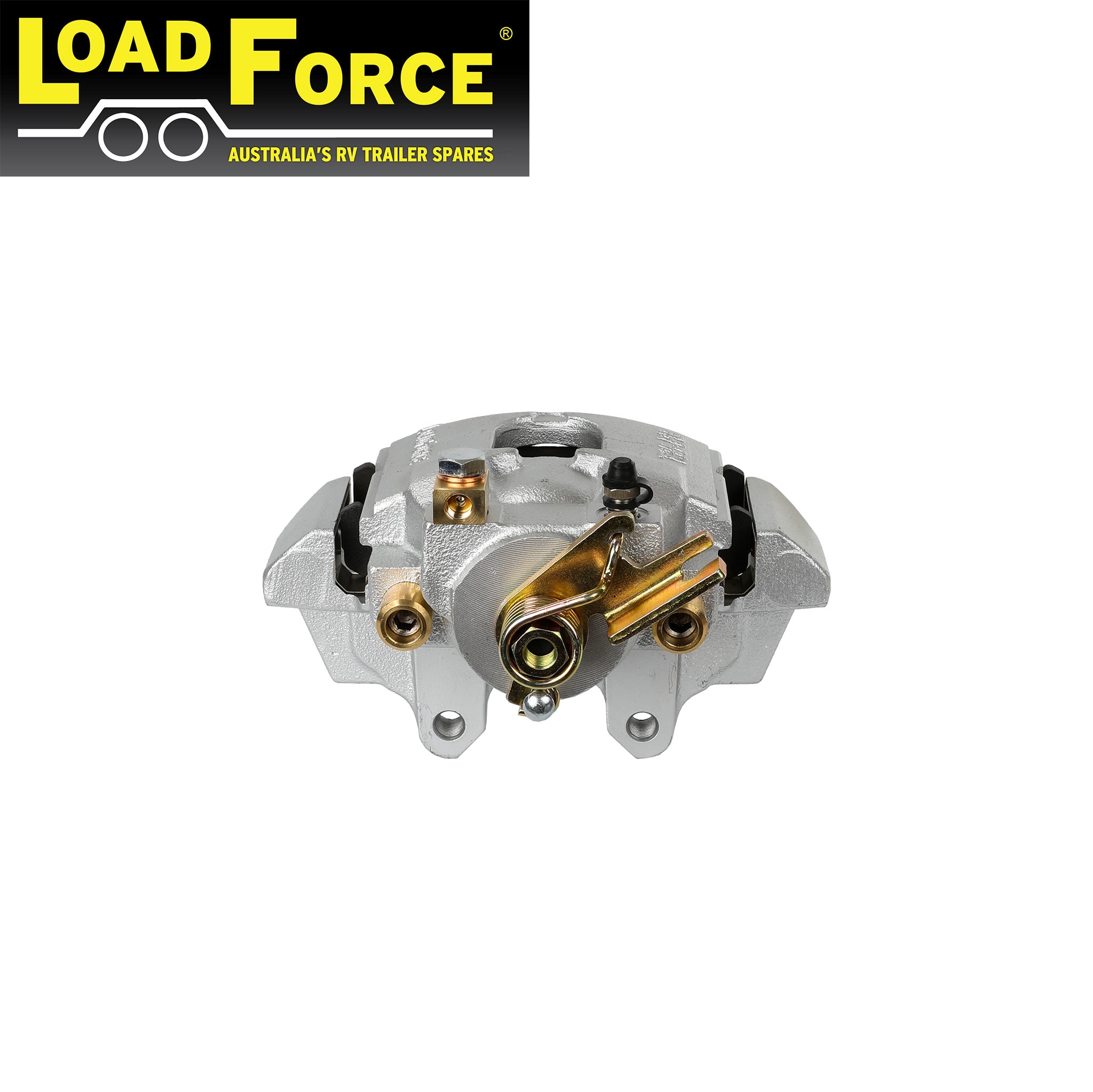

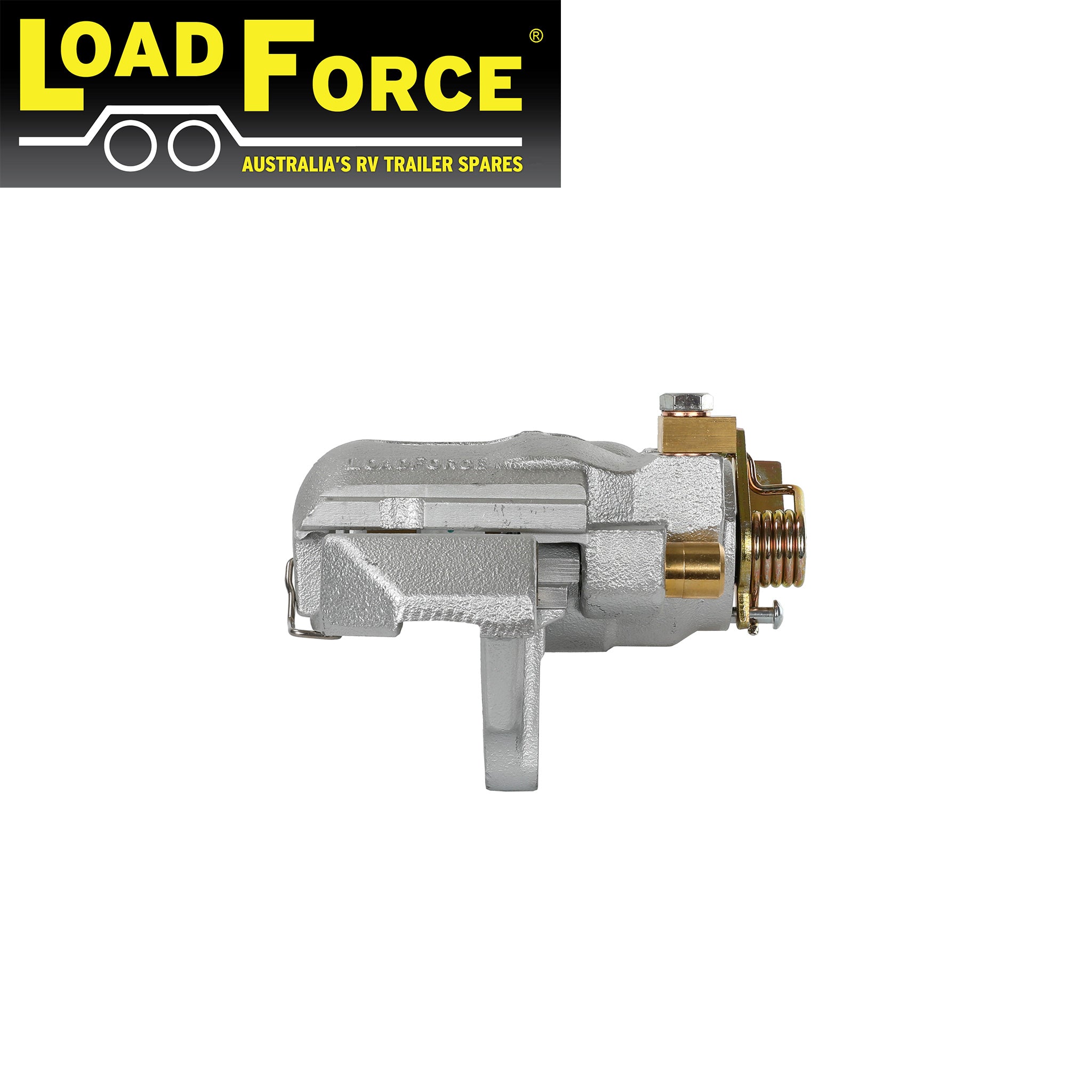

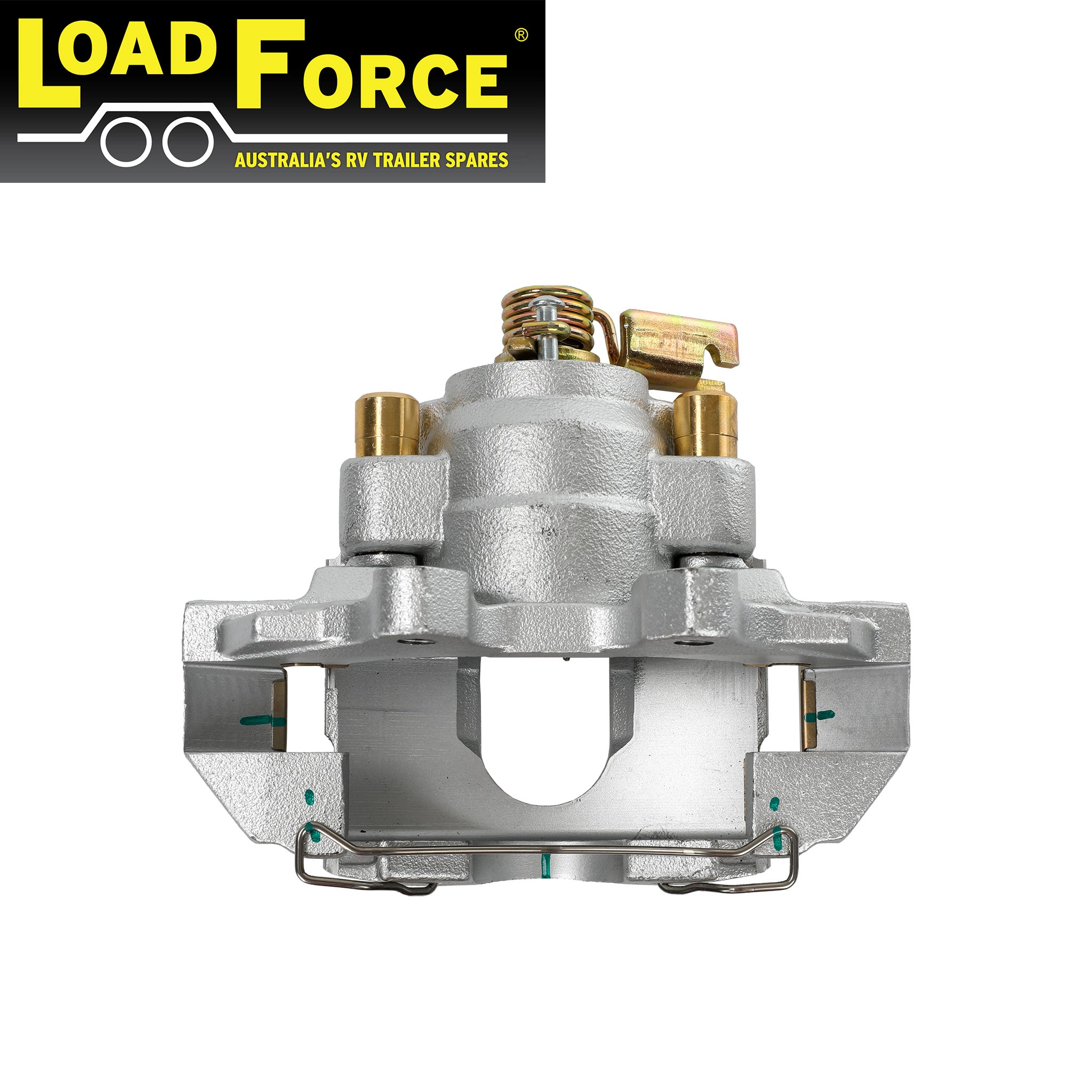

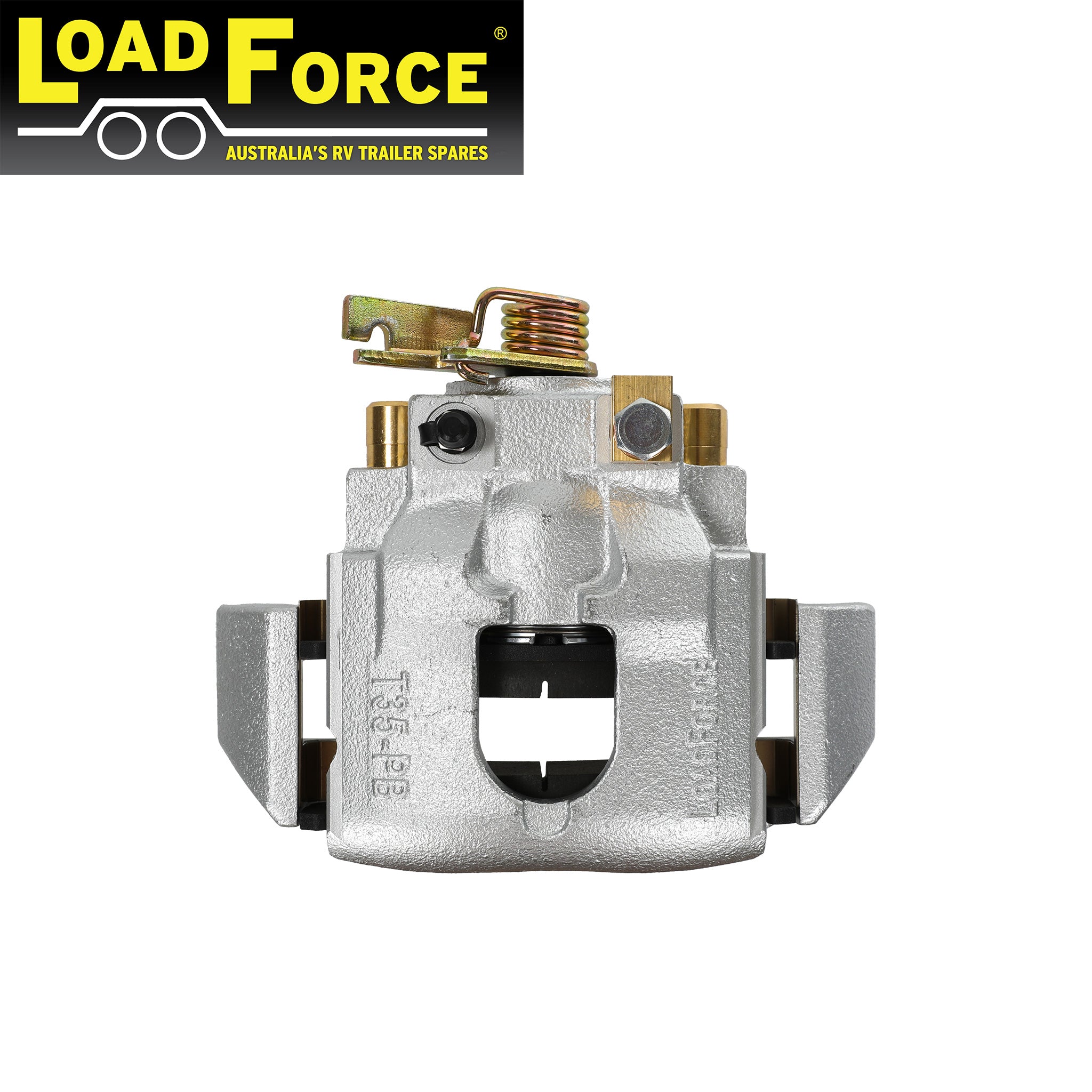

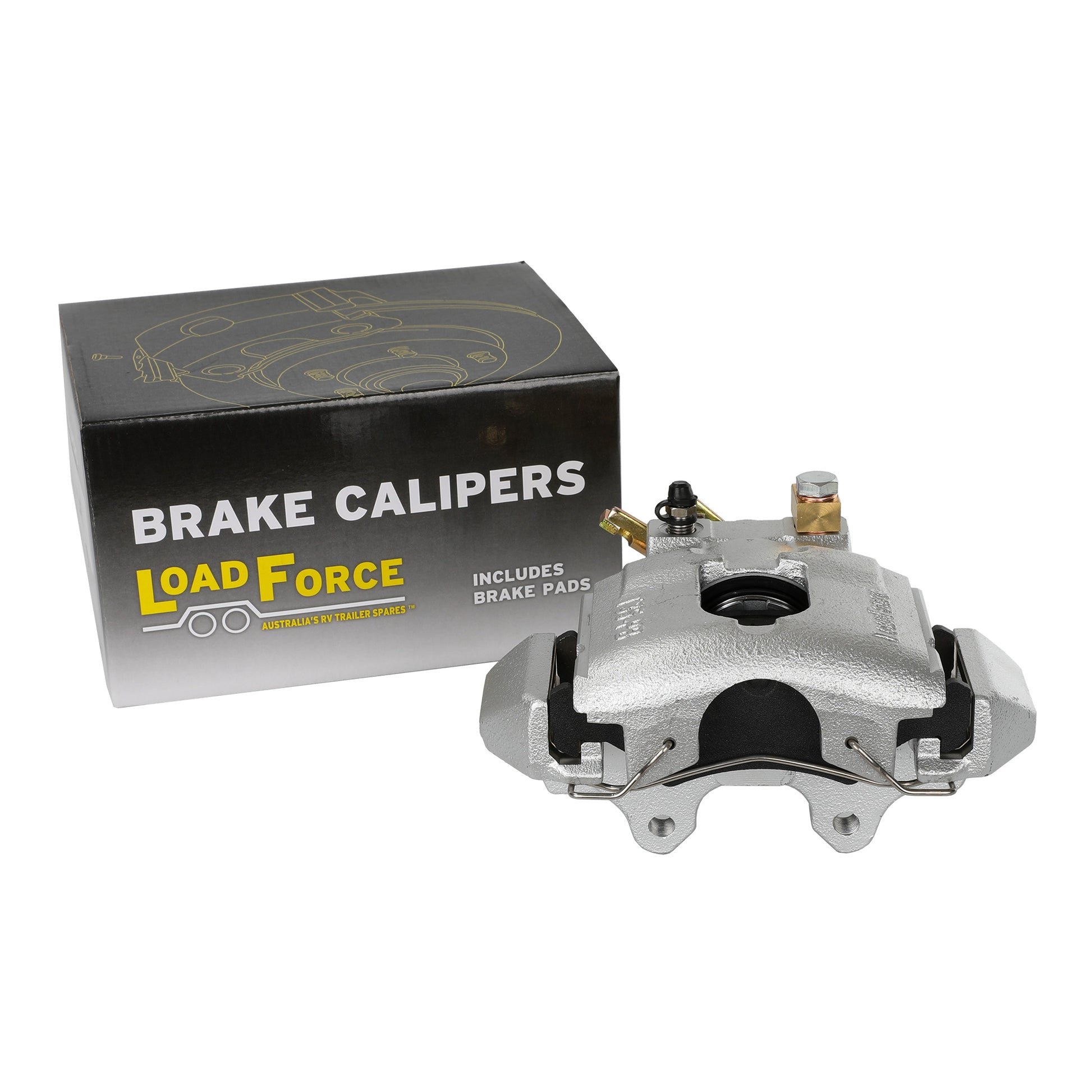

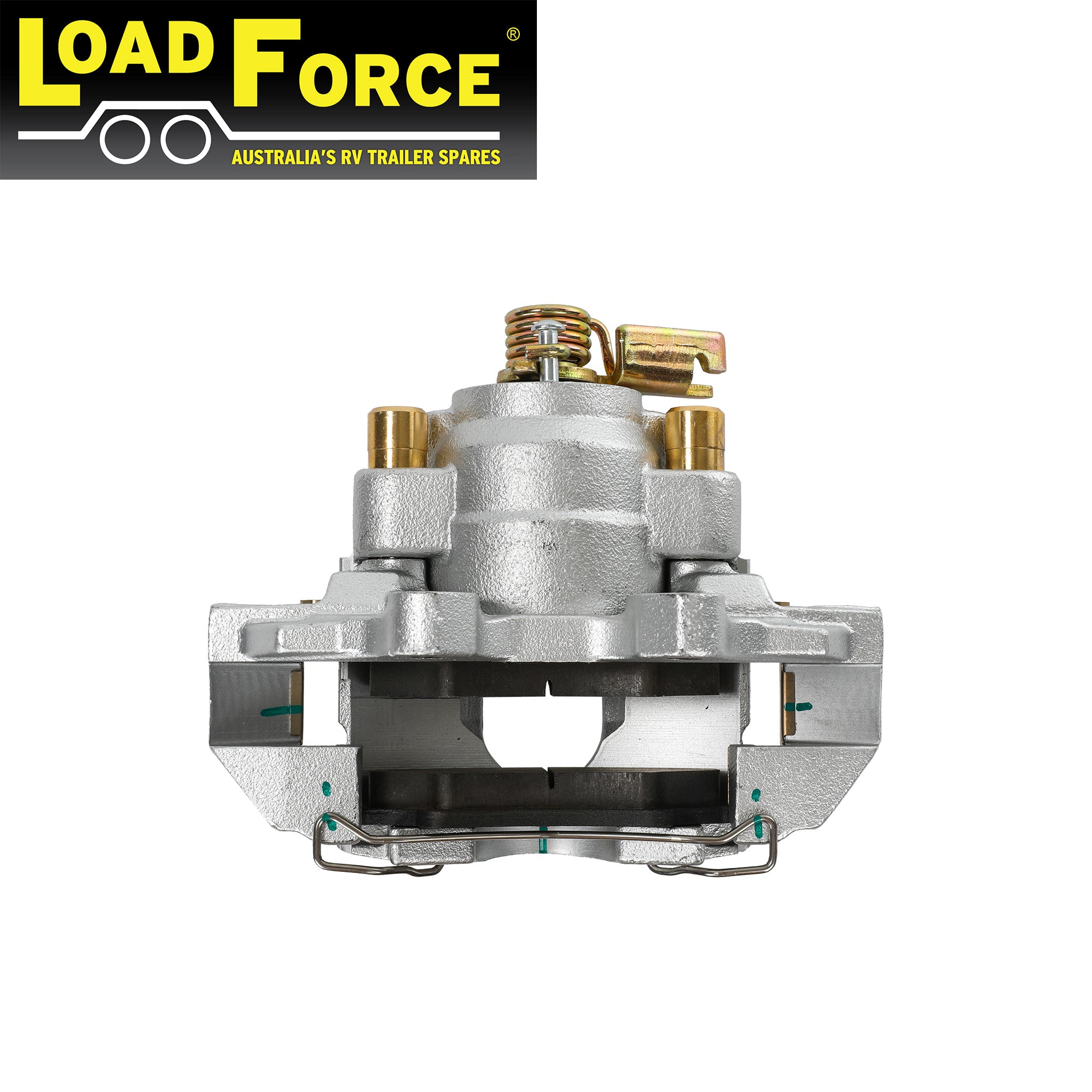

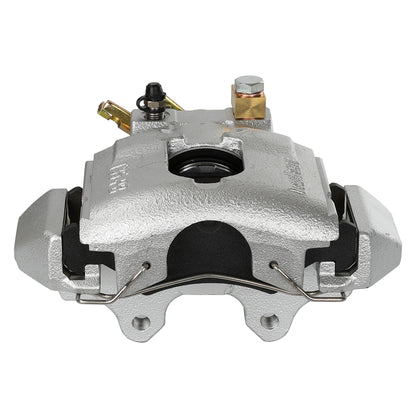

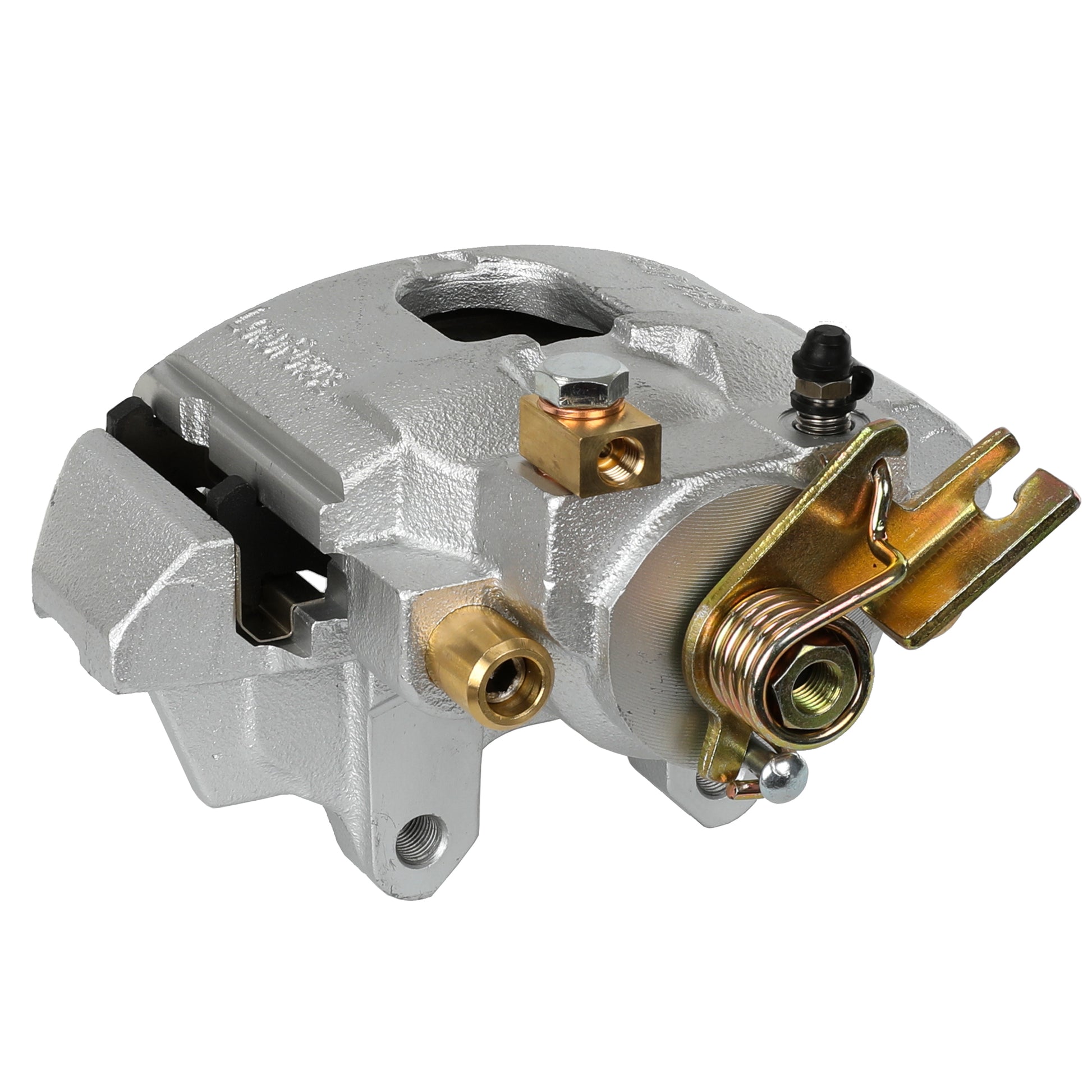

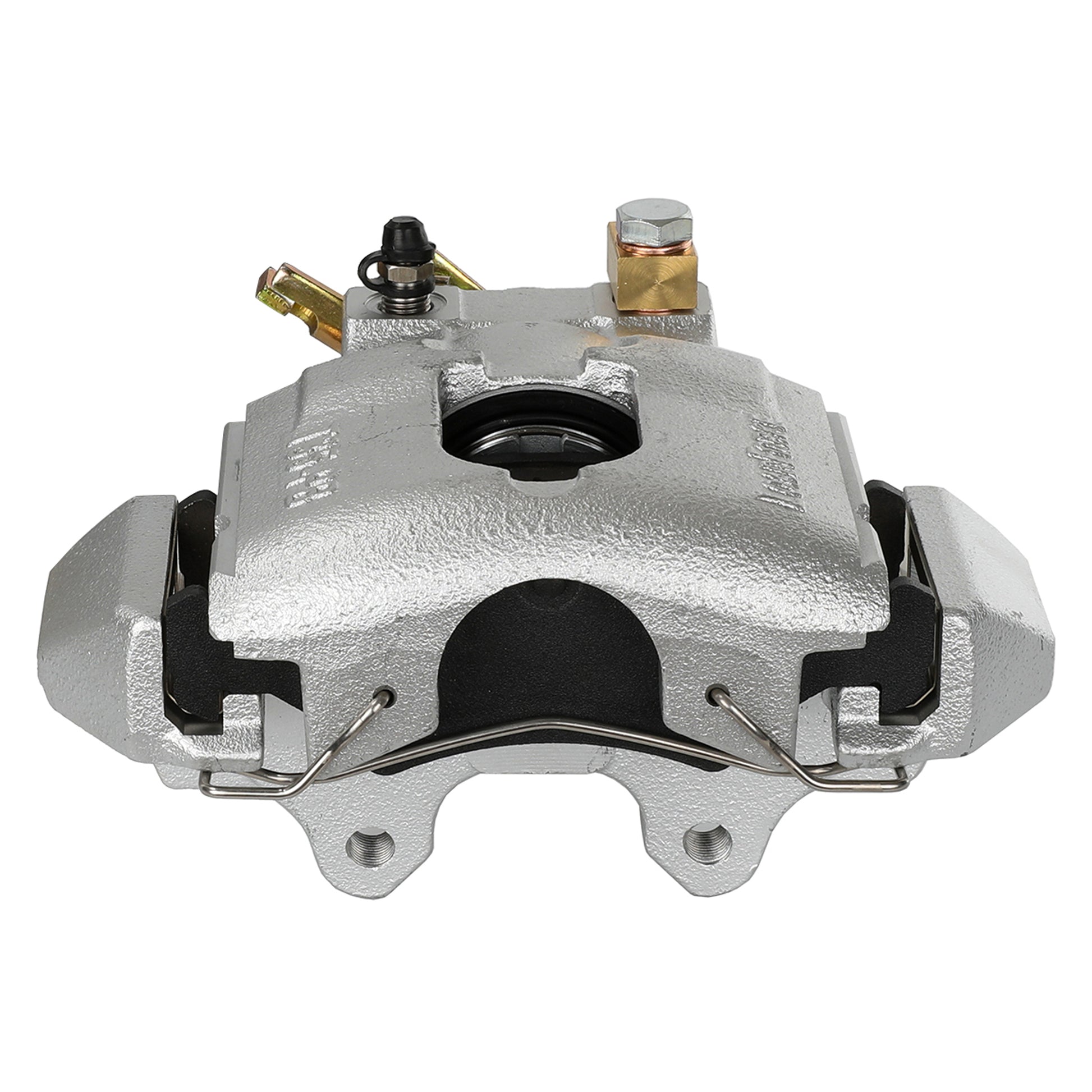

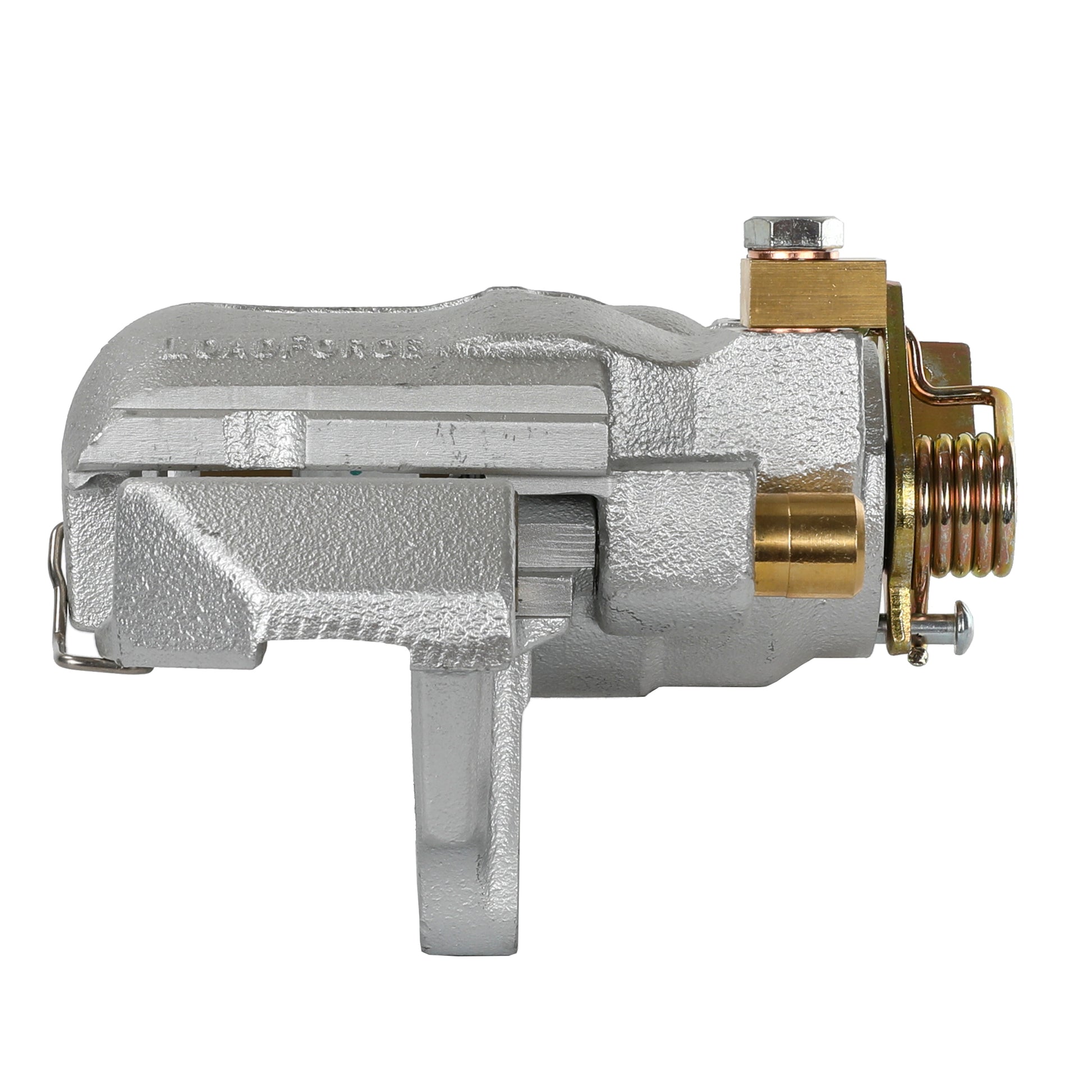

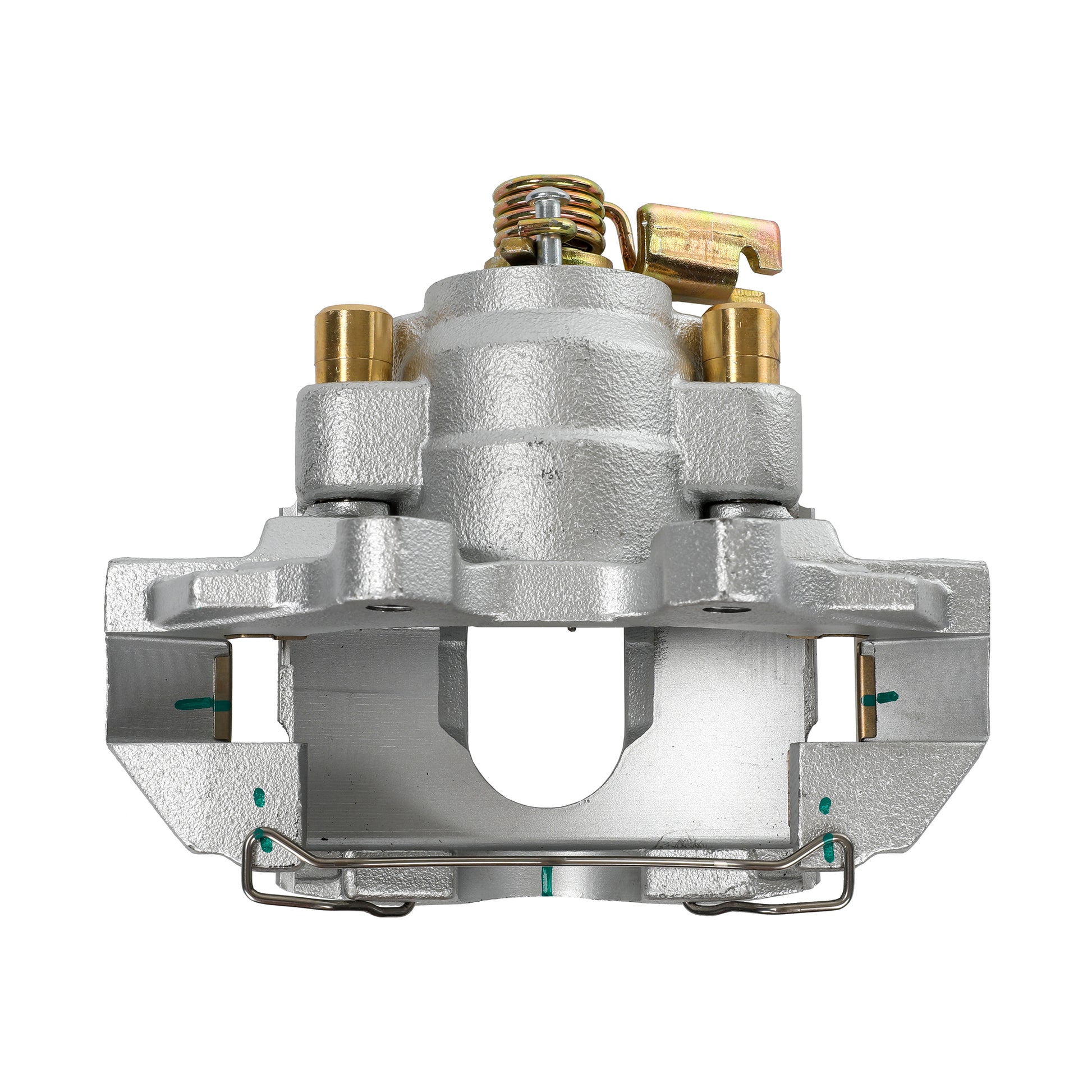

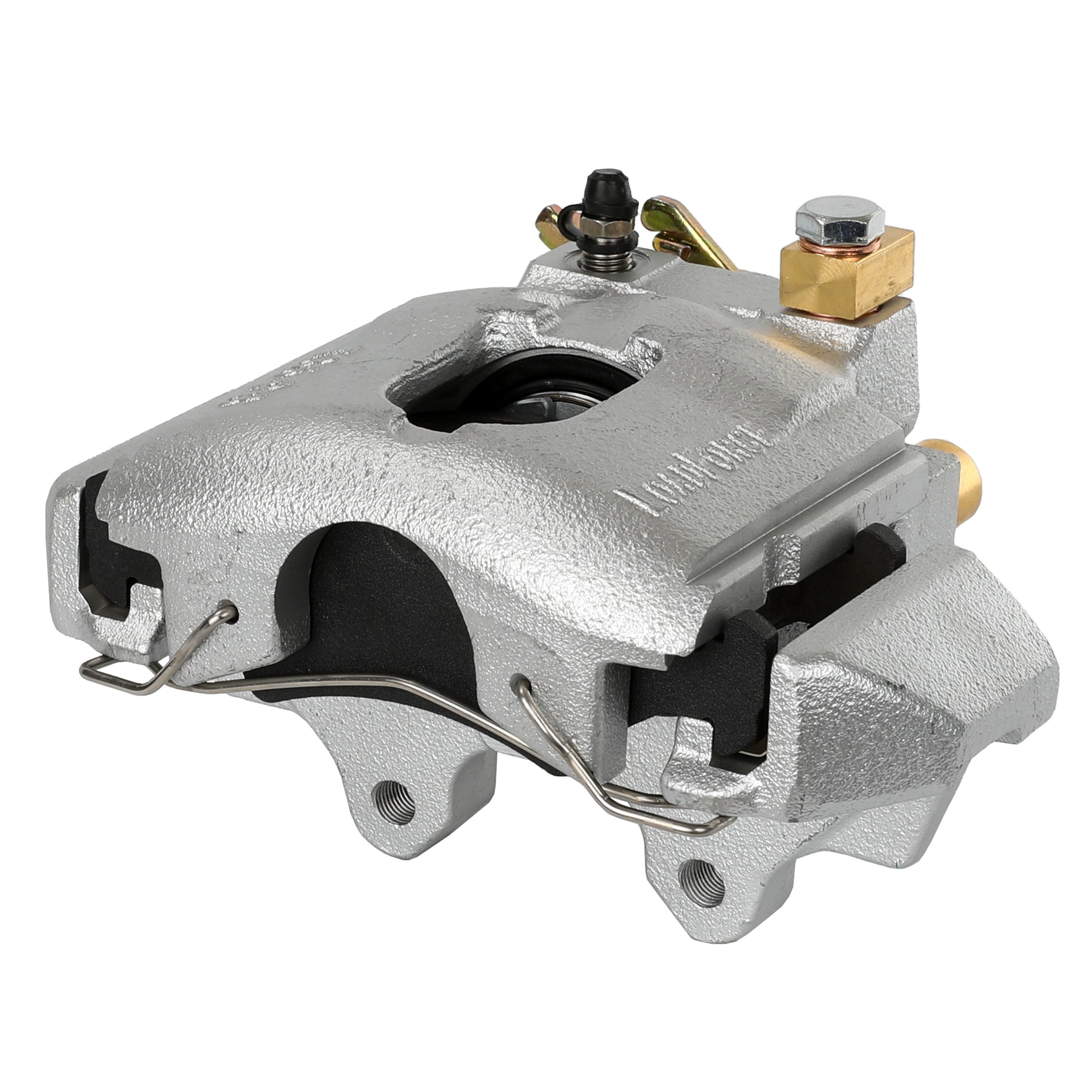

T35 brake caliper left side with park brake

Name: T35 brake caliper left side with park brake
Brand: LoadForce
SKU: T35-PB-L
Price: 229.99 AUD
Availability: InStock

$229.99

Tax included. Shipping calculated at checkout.

T35-PB-L

Product Information

LoadForce T35 trailer brake caliper with park brake for left side of trailer (Passenger side). Replaces the UFP DB35 model. Fits on 19mm (3/4 inch) up to 24mm disc. 1 x UFPBOLTKIT required for mounting.

When connecting your new brake caliper to hydraulic brake lines you must flush out the old brake fluid from the actuator (master cylinder or electric/hydraulic pump) and brake lines before connecting this new brake caliper.

Once flushed, then connect brake lines, refresh the system with new brake fluid and bleed air from the brake system.

Compatible with Dot 3 and Dot 4 brake fluid, however we do recommend using Dot 4 Brake fluid as it has higher moisture resistance.

Failure to flush the system could void warranty.

Specifications

Replacement for: UFP DB35 PB (commonly found on imported American trailers)
Park brake version, Left-Hand Side
Disc compatibility: 19mm (3/4") to 24mm
Piston: Billet stainless steel (upgraded from anodised aluminium to prevent corrosion)
Mounting: 1 × UFPBOLTKIT required

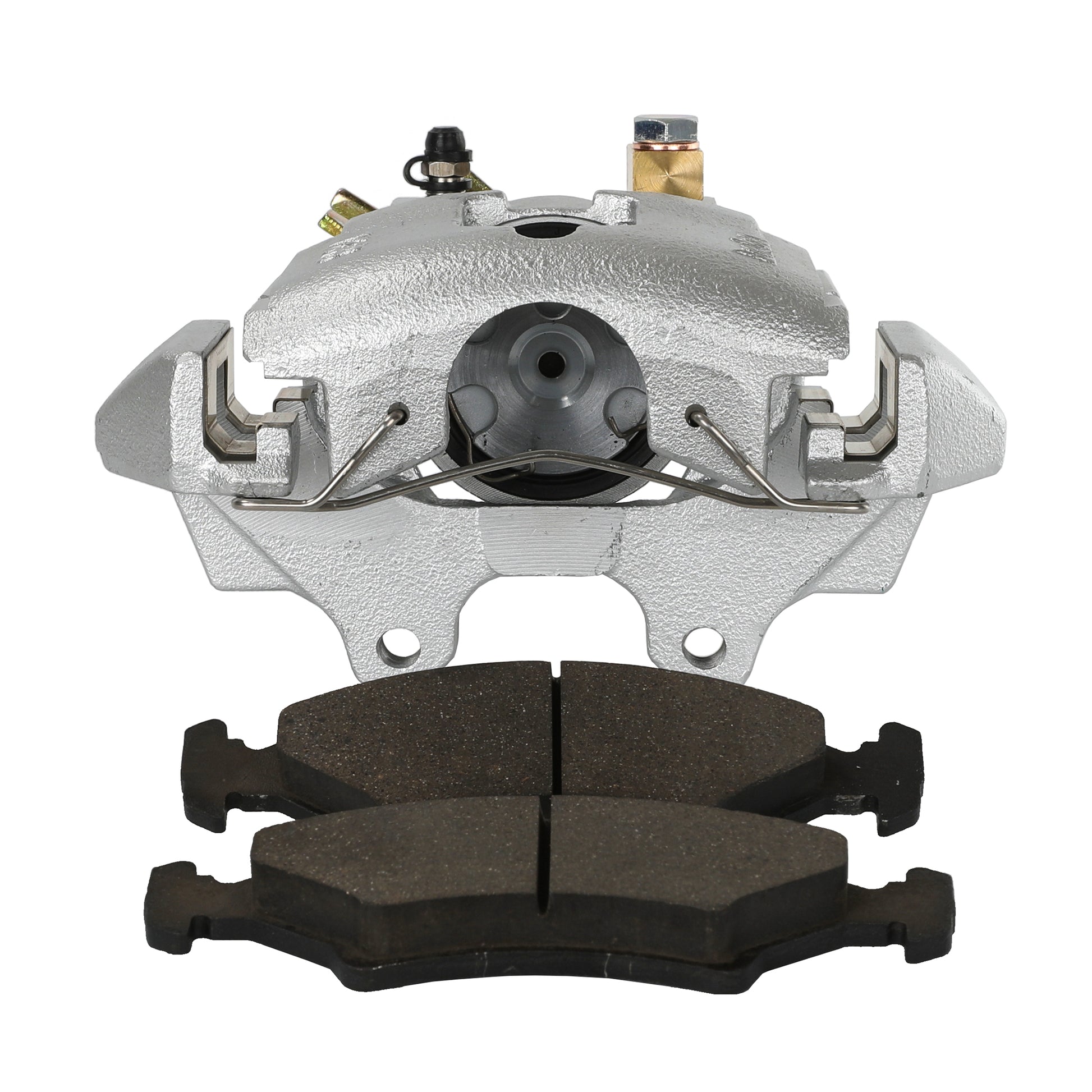

Included: Asbestos-free brake pads (spare pads: DPUFP35)
Bleed screw and union (interchangeable for left or right side mounting)
