Rated 1/2in U-bolt 50mm square x 165mm long - Yellow

Product Description
$12.10 incl. GST
Maximum quantity available reached.

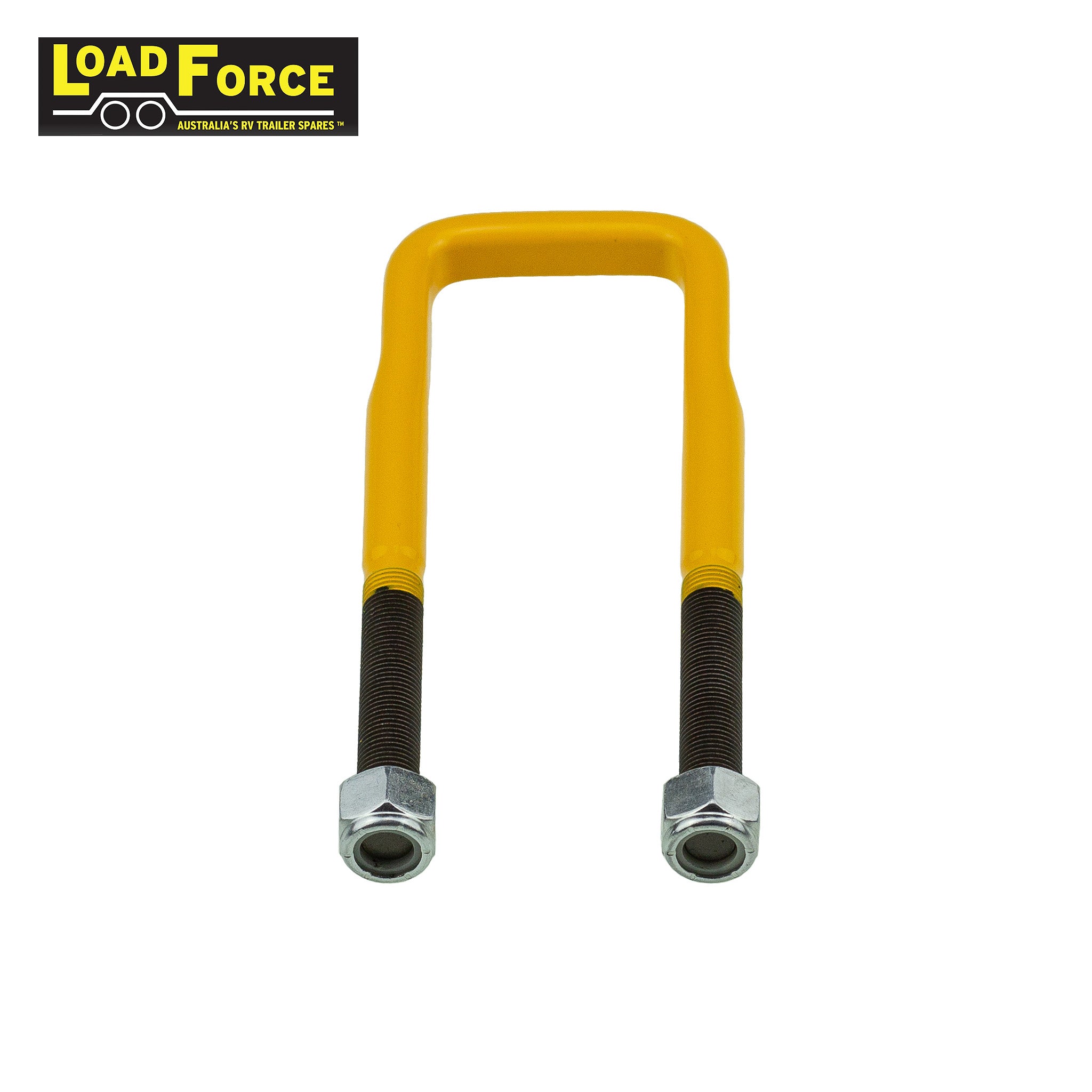

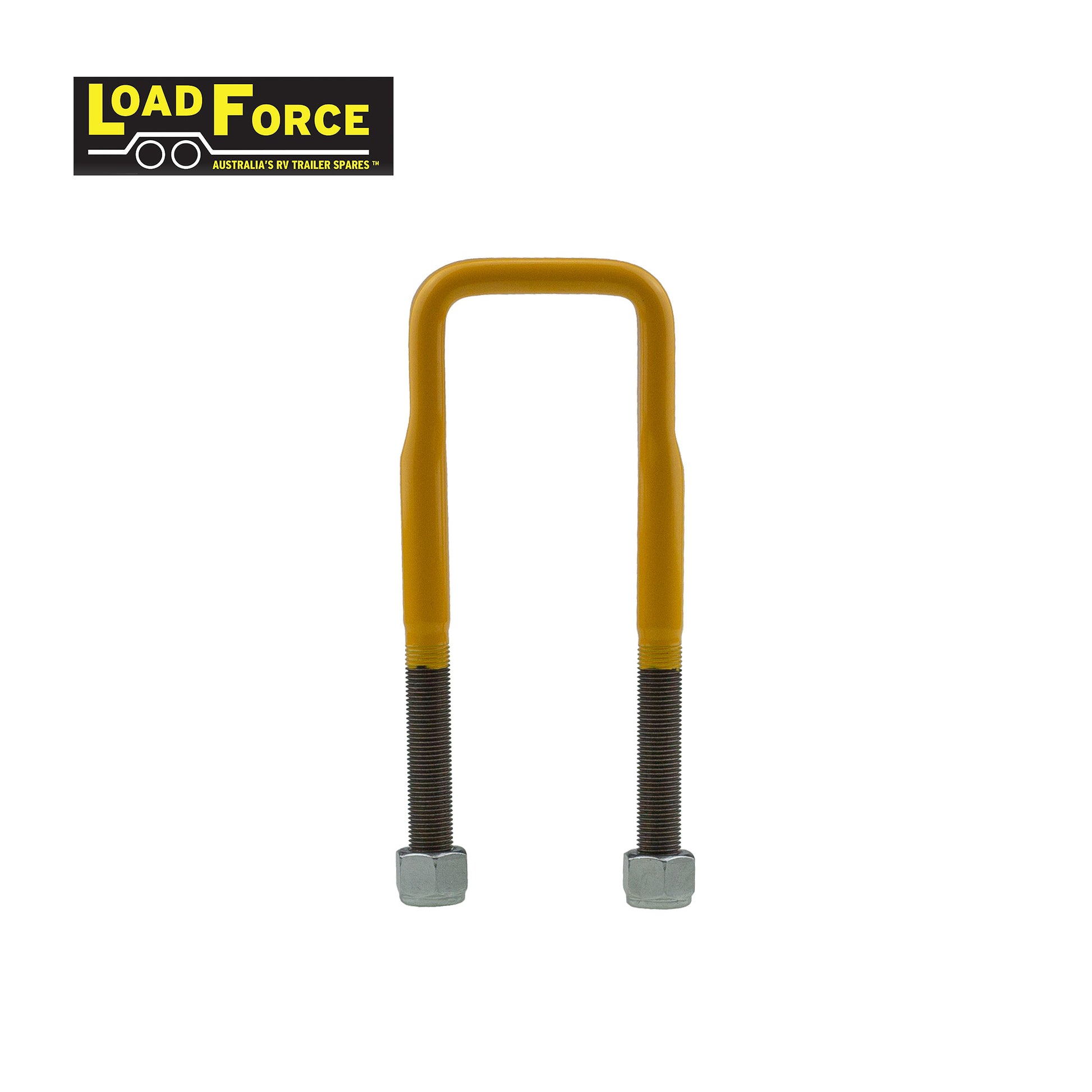

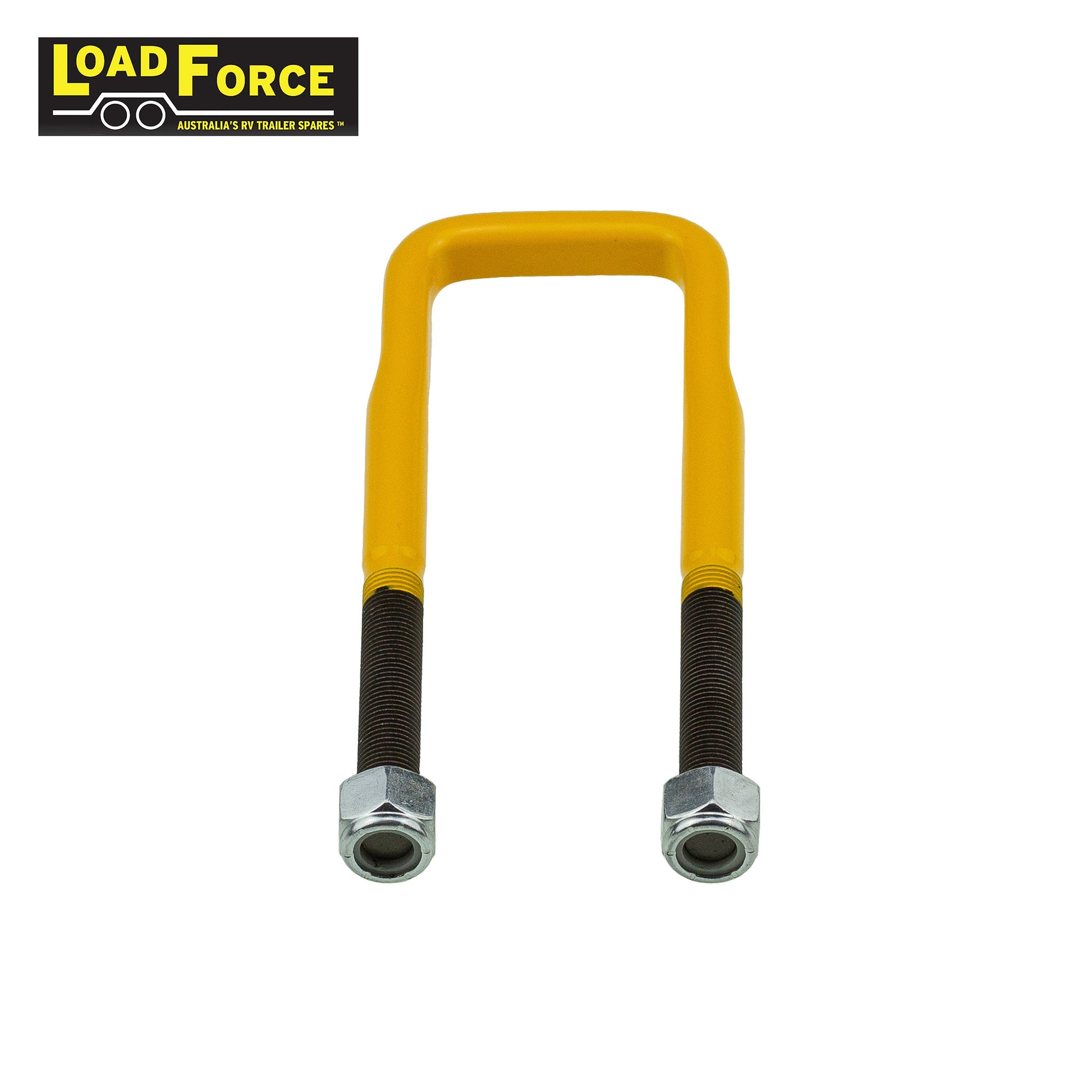

S50X165 U-bolt is:

  • 50mm square
  • made from 12.7mm (1/2 inch) material.
  • 165mm long
  • 70mm thread length
  • Yellow baked painted finish

Warning: Hand tighten U-bolt evenly. Do not use air impact wrench (rattle gun).

Introducing the new standard in U-bolts

  • Stronger, Safer, Quality
  • flat band design for increased surface area grip on axles
  • 1045 grade tensile steel AS1442-1992 1045
  • 12.7mm 1/2 inch or 15.88mm 5/8 inch true diameter
  • tensile strength tested up to 840 mpa
  • fine thread for extra strength cut from the true diameter of material
  • nyloc nuts for a stronger bind
  • LoadForce U-bolts come in Dacromet or Baked yellow paint

View the full range of LoadForce u-bolts for Caravans, campers, boat trailers and other trailer types

The LoadForce brand is committed to bringing quality products to the trailer and RV market in Australia.

Part no. : S50X165
