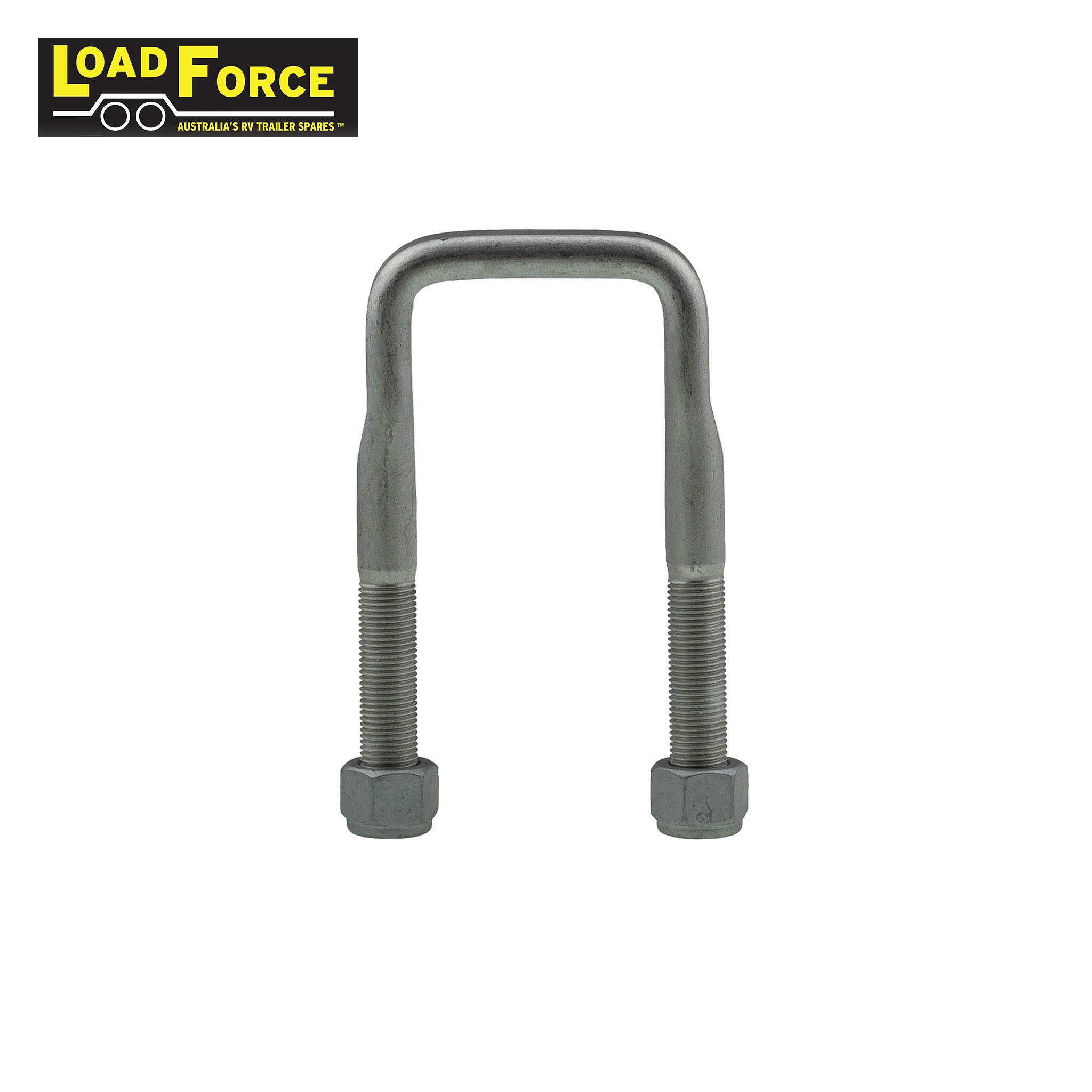

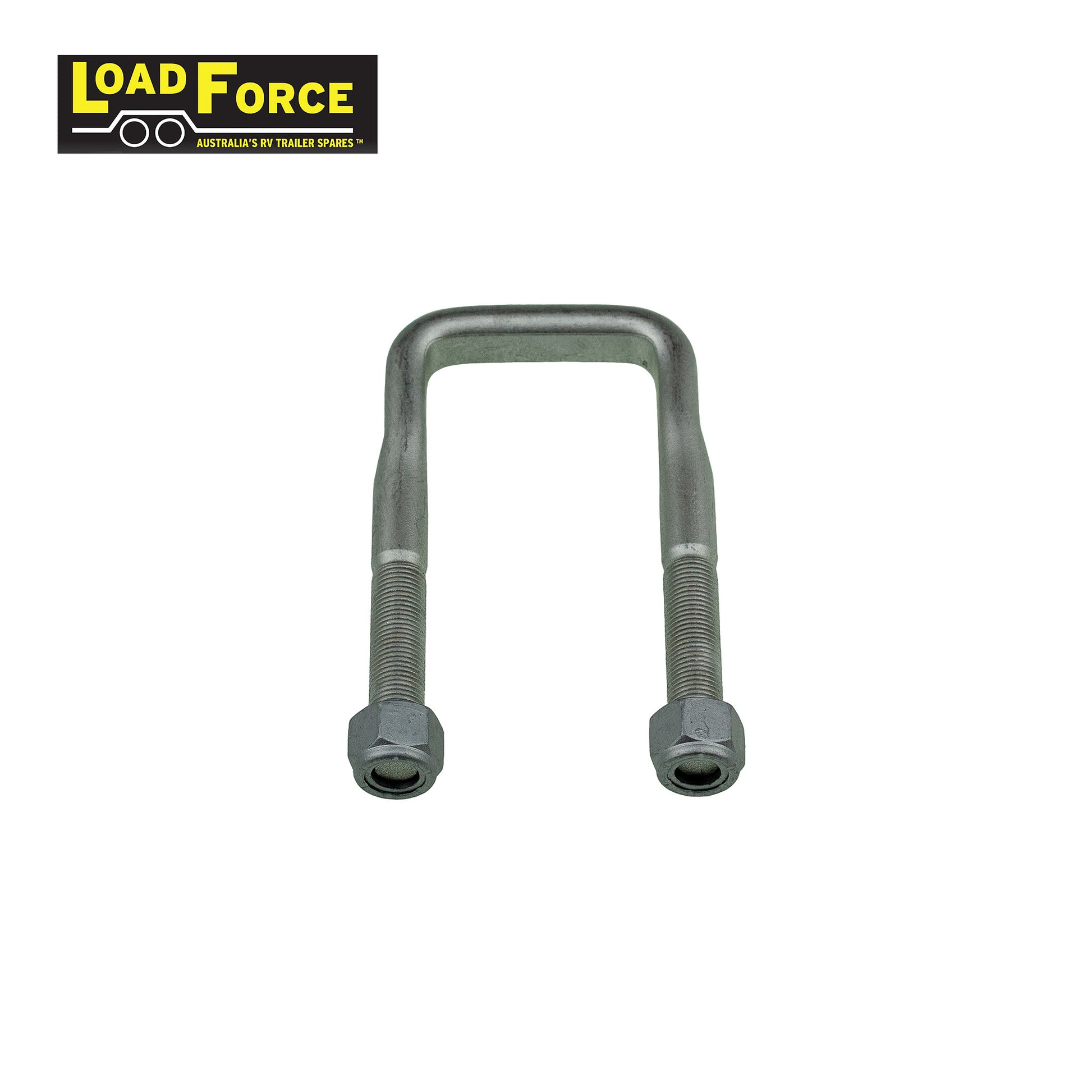

Rated 1/2in U-bolt for 50mm square axle x 115mm long dacromet

R50X115-D U-bolt is:

• 50mm square
• made from 12.7mm (1/2 inch) material.
• 115mm long
• 50mm thread length
• Dacromet finish.

Warning: Hand tighten U-bolt evenly. Do not use air impact wrench (rattle gun).

Introducing the new standard in U-bolts

• Stronger, Safer, Quality
• flat band design for increased surface area grip on axles
• 1045 grade tensile steel AS1442-1992 1045
• 12.7mm 1/2 inch or 15.88mm 5/8 inch true diameter
• tensile strength tested up to 840 mpa
• fine thread for extra strength cut from the true diameter of material
• nyloc nuts for a stronger bind
• LoadForce U-bolts come in Dacromet or Baked yellow paint

View the full range of LoadForce u-bolts for Caravans, campers, boat trailers and other trailer types

The LoadForce brand is committed to bringing quality products to the trailer and RV market in Australia.
