5.5 inch (140mm) Lazy hub assembly galvanised HT stud LM bearing for 8 inch alloy rims

5.5 inch (140mm) Lazy hub assembly galvanised HT stud LM bearing for 8 inch alloy rims

$65.99
$65.99
Tax included. Shipping calculated at checkout.

HT140G

Product Information

LoadForce 5.5 inch (140mm) diameter lazy hub assembly with HT 5 stud pattern and LM (Holden) bearing. For use with 8 inch aluminium rims (RIM8HT). Galvanised finish ideal for marine applications, boat trailers.

HT Holden stud measurements:

  • Stud diameter: 7/16 inches.
  • PCD (Pitch circle diameter): 108mm (4.251 inches).
  • Stud distance: 63mm.
  • Bearing: LM / Holden: Inner LM67048/10 ; Outer: LM11949/10.

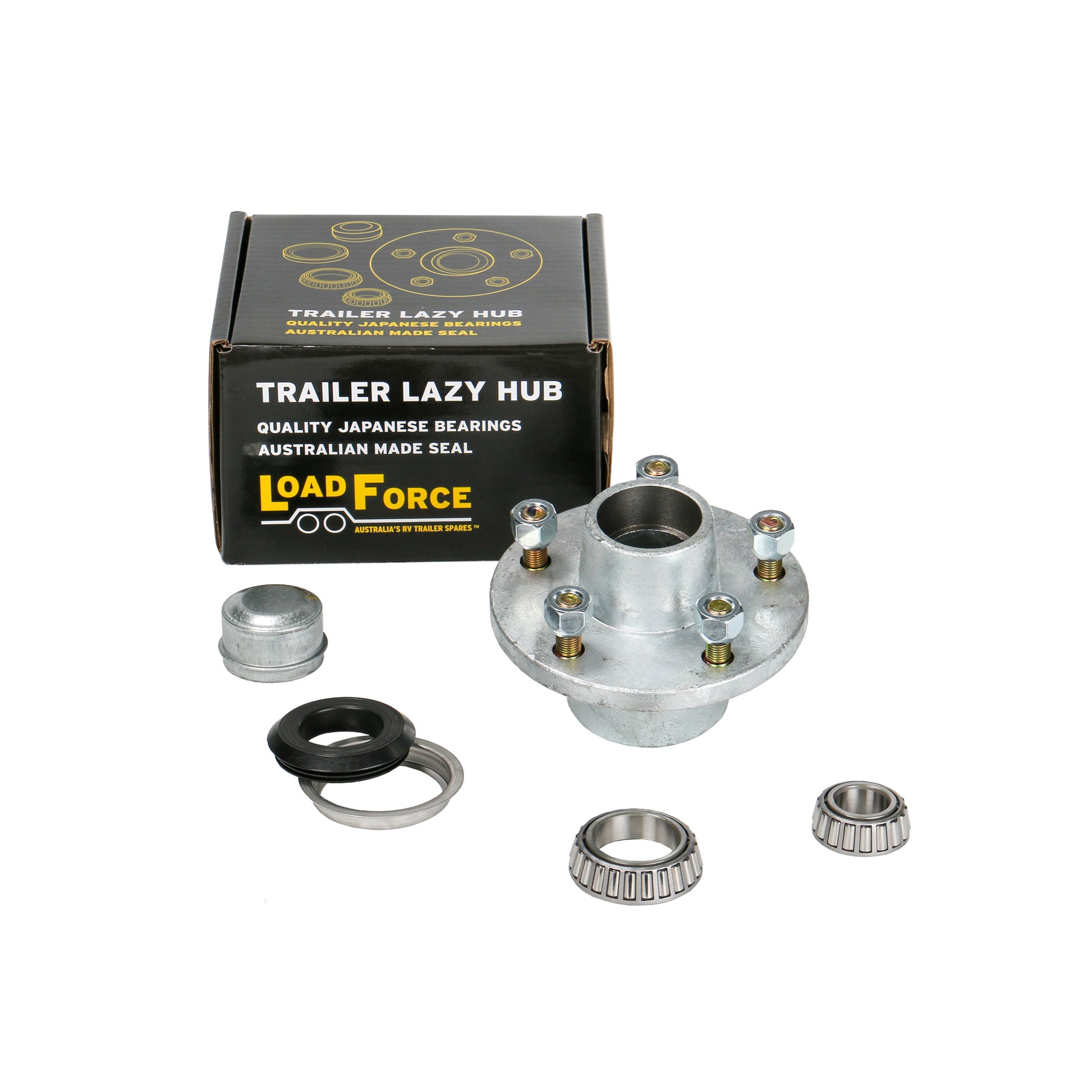

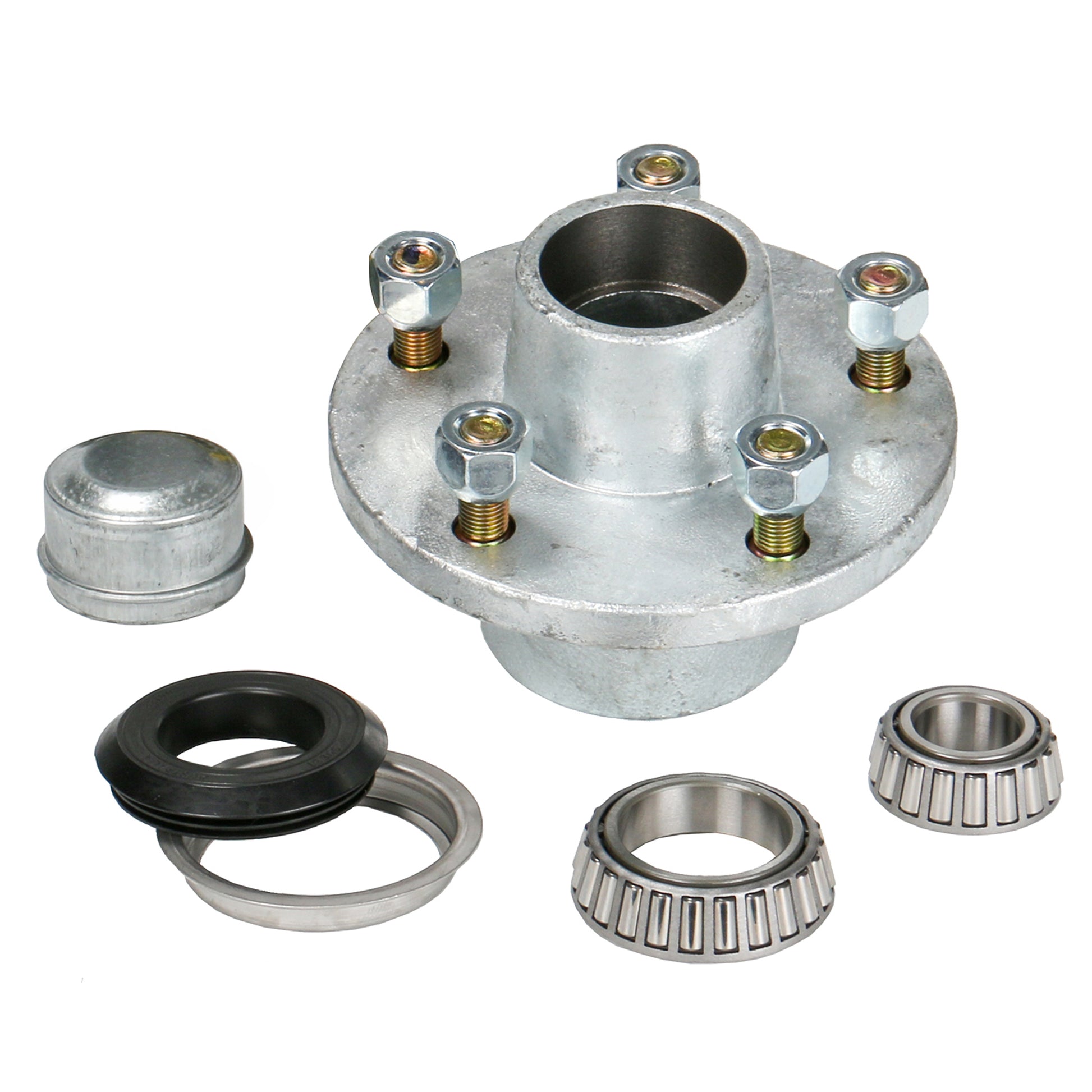

All hub assemblies come complete with studs, nuts, Japanese bearings, Australian hub seal and dust cap.

Specifications

  • Specifications:
  • Size: 140mm Hub - Slightly smaller than usual. These hubs are designed to be used with small 8 inch alloy rims such as our ART8HT
  • Compatibility: Holden Type Bearings, 39mm Round & 40mm Square Axles
  • Studs: 5 x 7/16"
  • PCD 108mm
  • 63mm Stud-to-Stud
  • Included Components:
  • Koyo Japanese Bearings: 11949/10 & 67048/10 bearings and cones
  • High quality marine seal
  • Dust cap
  • Fitted studs & nuts
  • Material: Galvanised steel. Corrosion resistance for marine applications.
