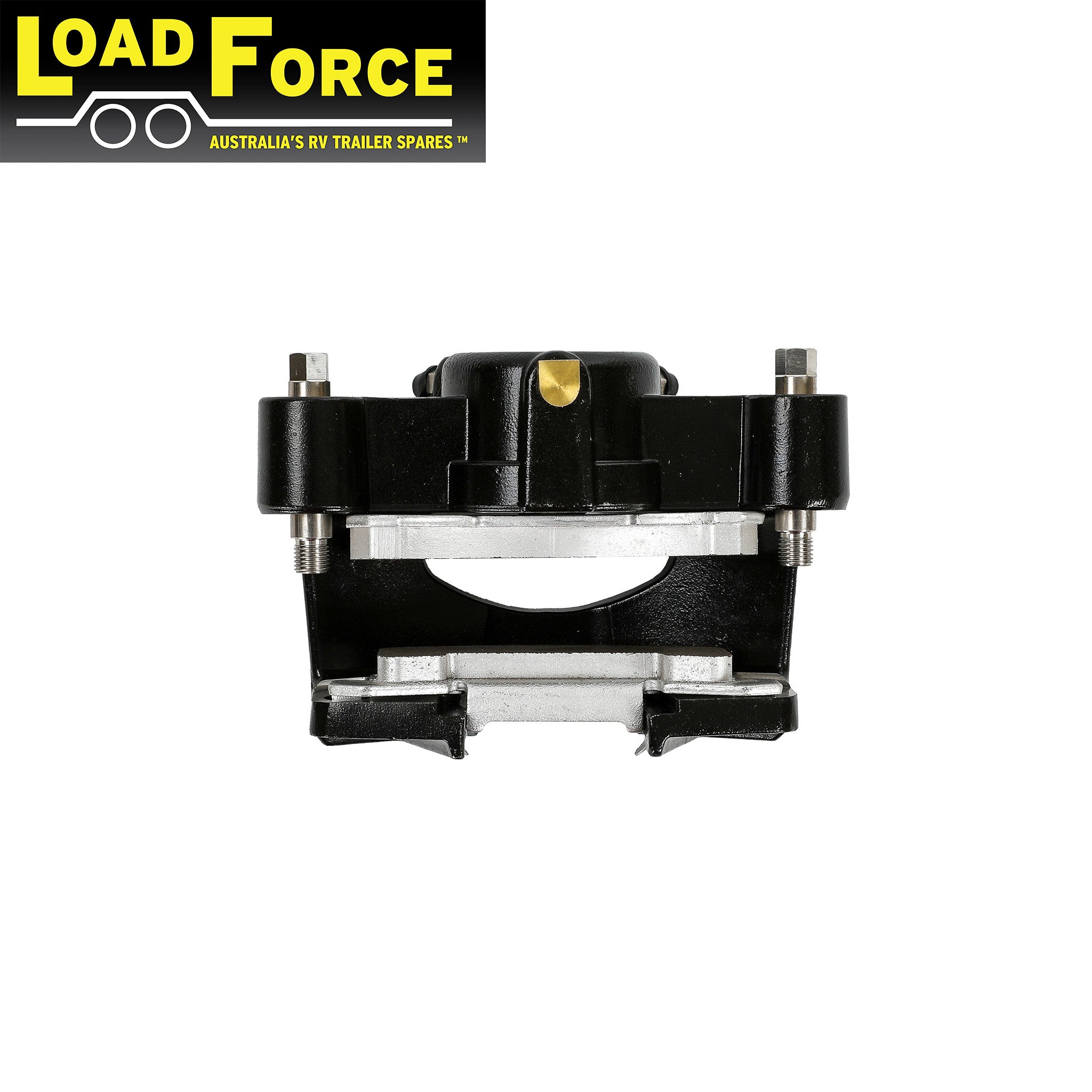

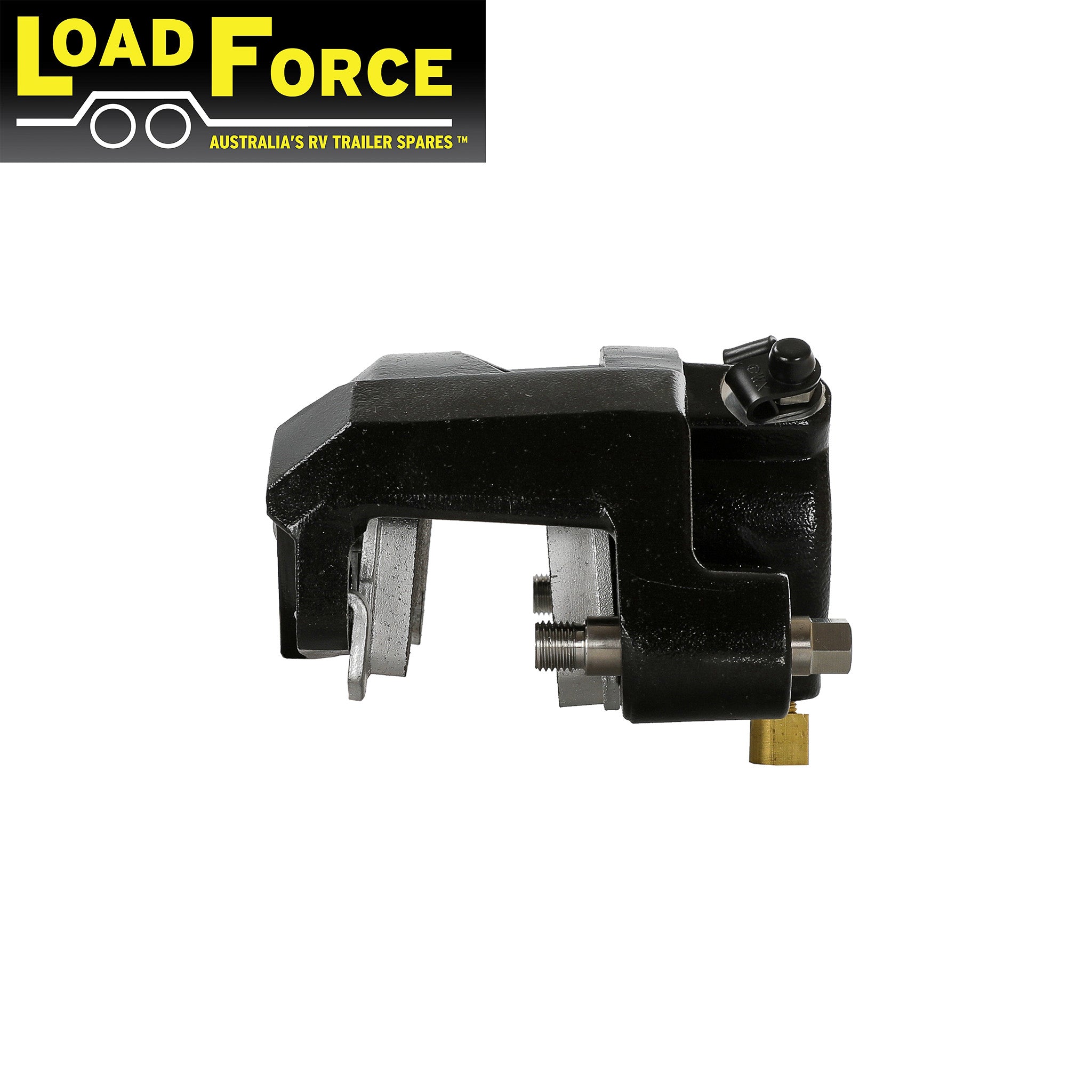

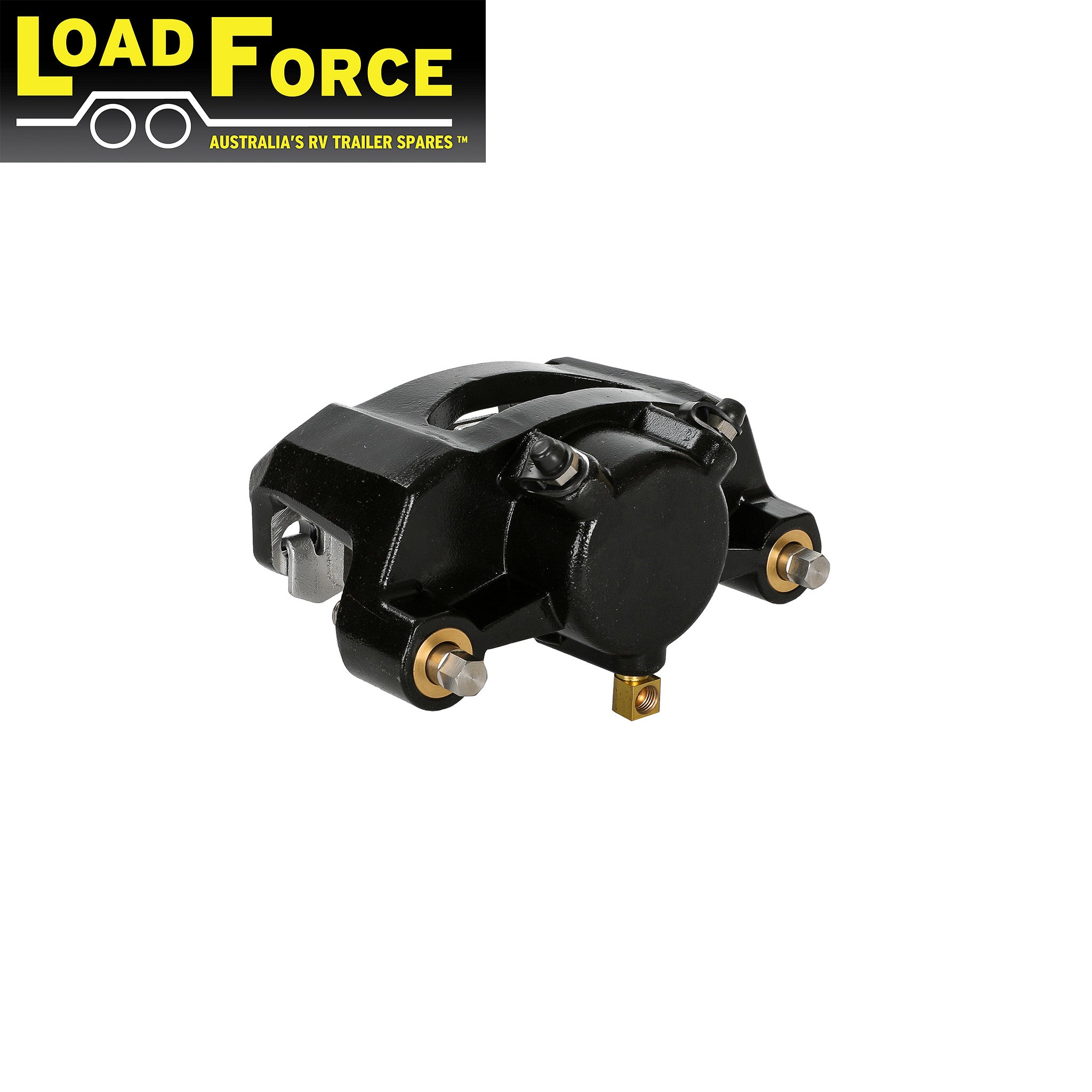

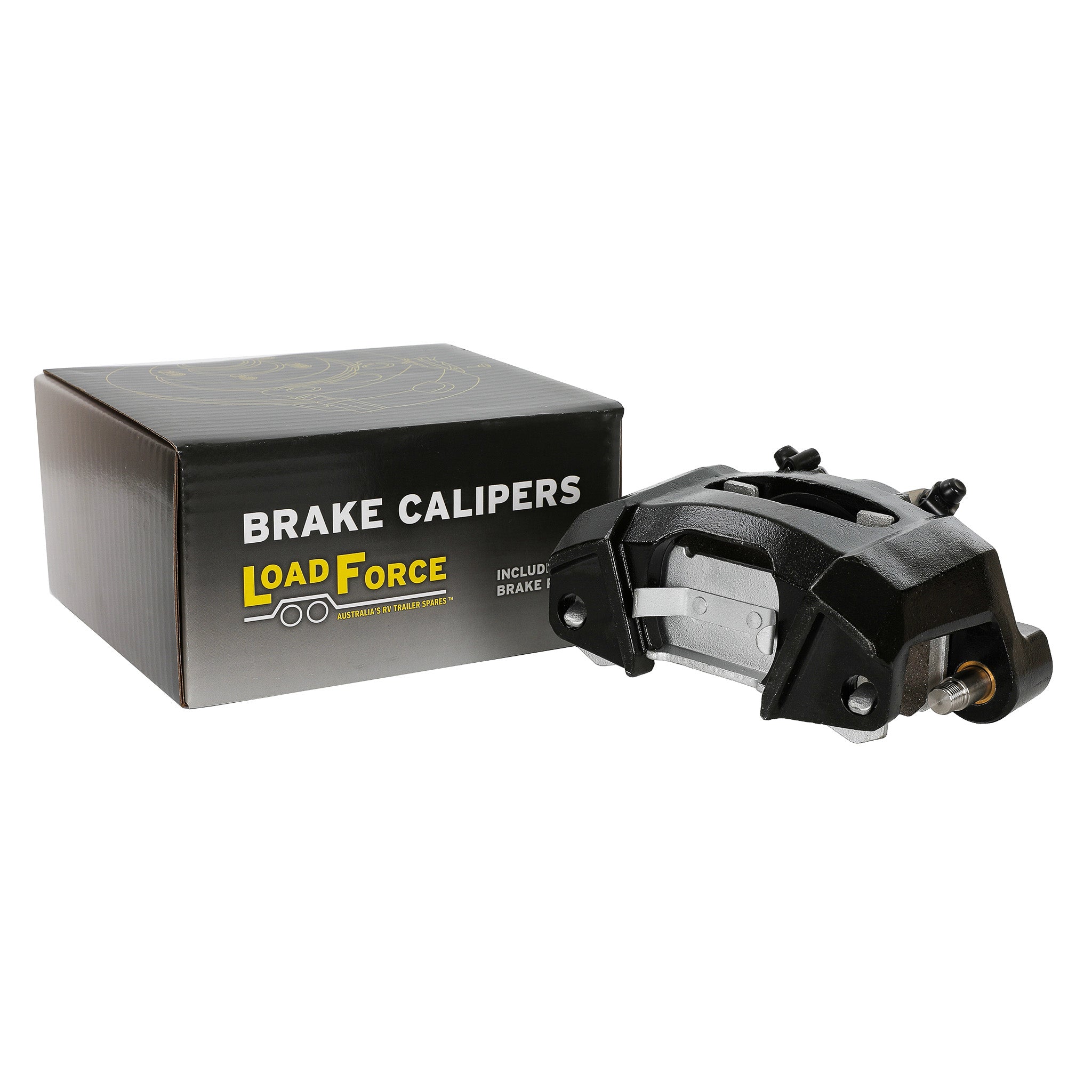

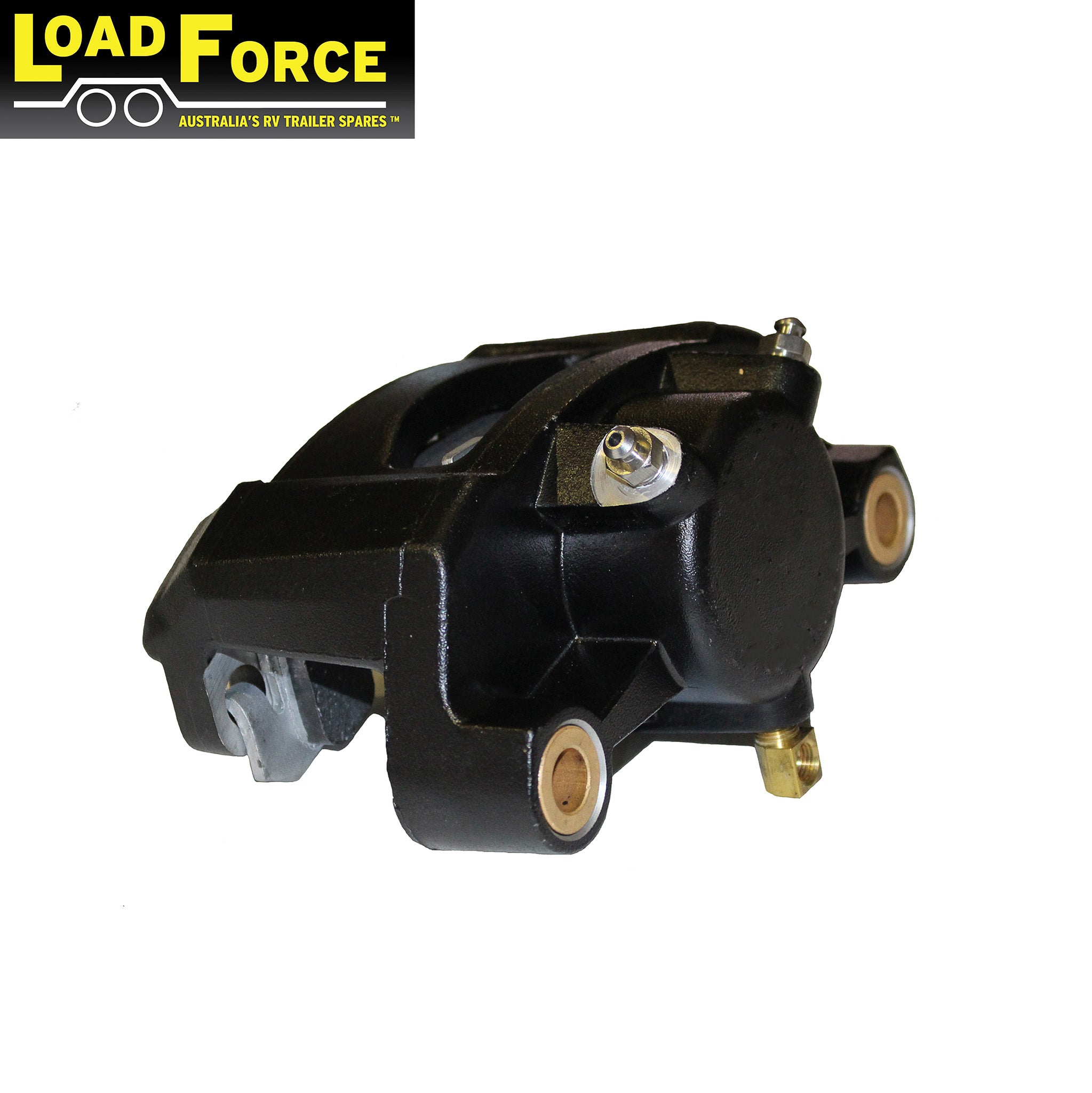

LoadForce 46304 aluminium brake caliper replaces Tie Down

LoadForce 46304 aluminium trailer brake caliper suits ventilated rotors. Replaces Tie Down Engineering 46304 found on imported American trailers. Caliper comes with brake pads and hydraulic union. Mounting slide bolts not included but are available separately. Part number for slide bolts: SPTD

When connecting your new trailer brake caliper to hydraulic brake lines you must flush out the old brake fluid from the actuator (master cylinder or electric/hydraulic pump) and brake lines before connecting this new brake caliper.

Once flushed, then connect brake lines, refresh the system with new brake fluid and bleed air from the brake system.

Compatible with Dot 3 and Dot 4 brake fluid, however we do recommend using Dot 4 Brake fluid as it has higher moisture resistance. Failure to flush the system could void warranty.

The brake pads used in this caliper are a premium product specifically designed for trailer applications. Large trailers carrying heavy loads can generate very high brake temperatures. The heavy duty asbestos-free friction material formulation used in the LoadForce product is capable of handling high temperatures for long time periods and minimizes the chances of brake fade.

Comes with Disc pads, additional spare disc pads are available separately part number DPTD.

Ref:  Tie Down Engineering, 46304A
