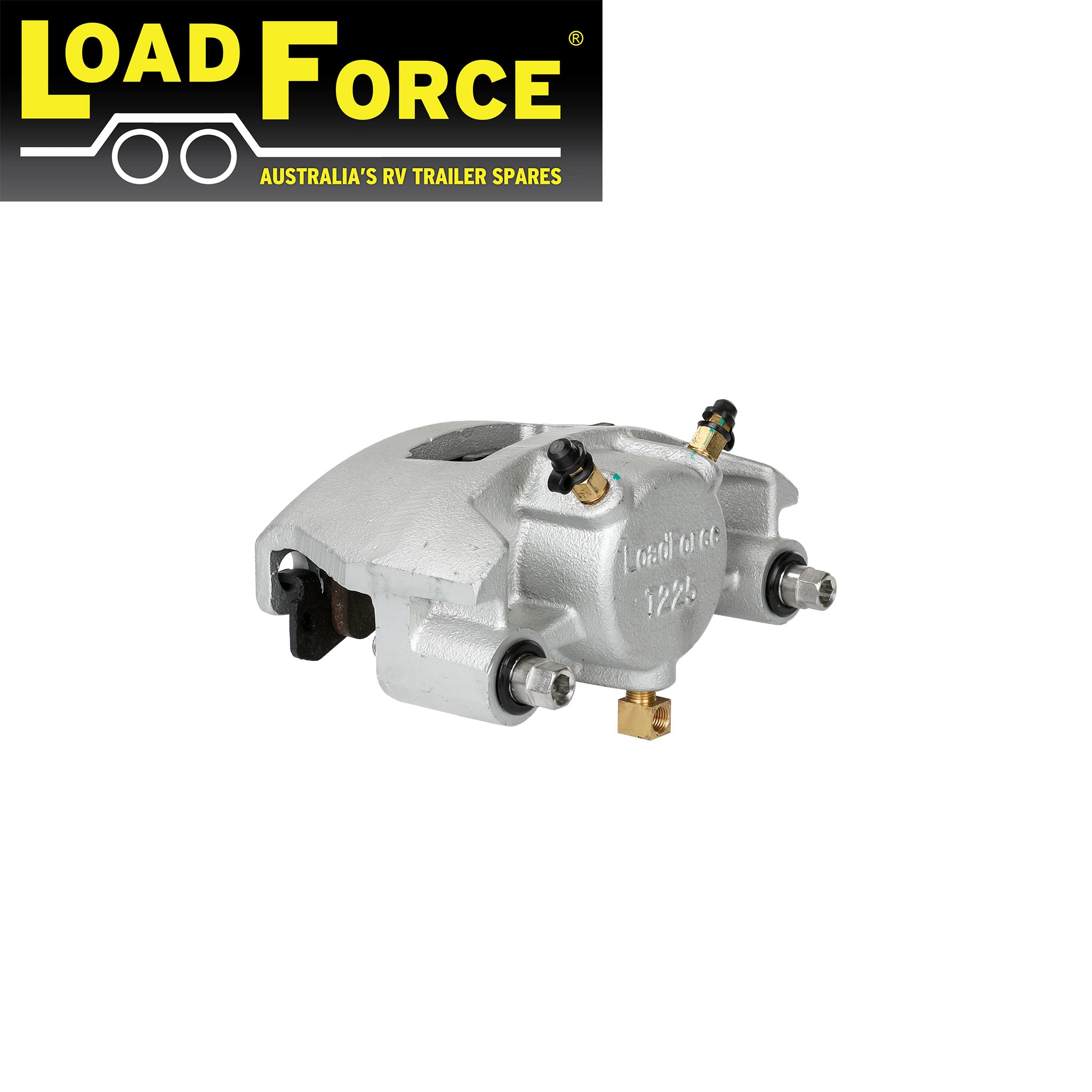

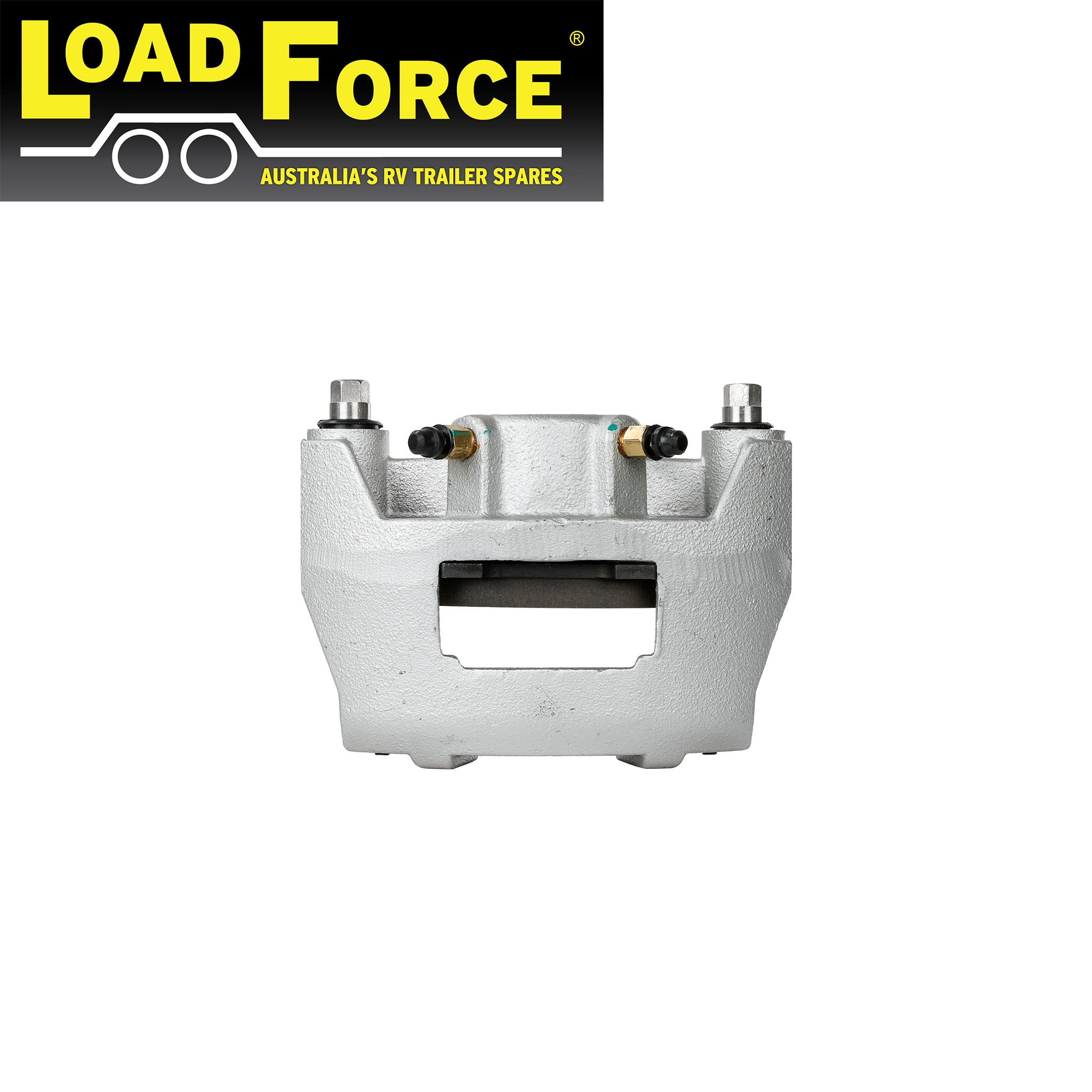

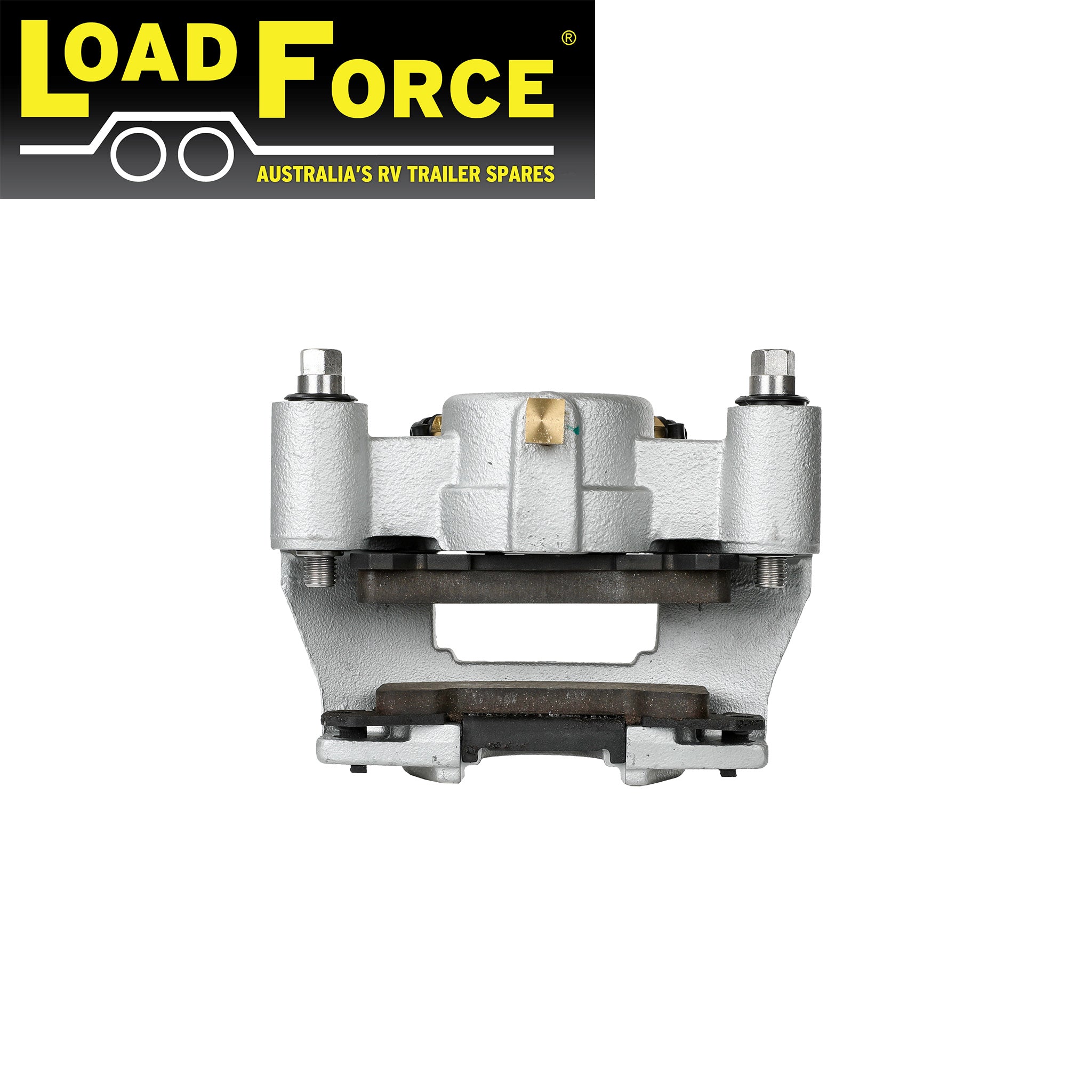

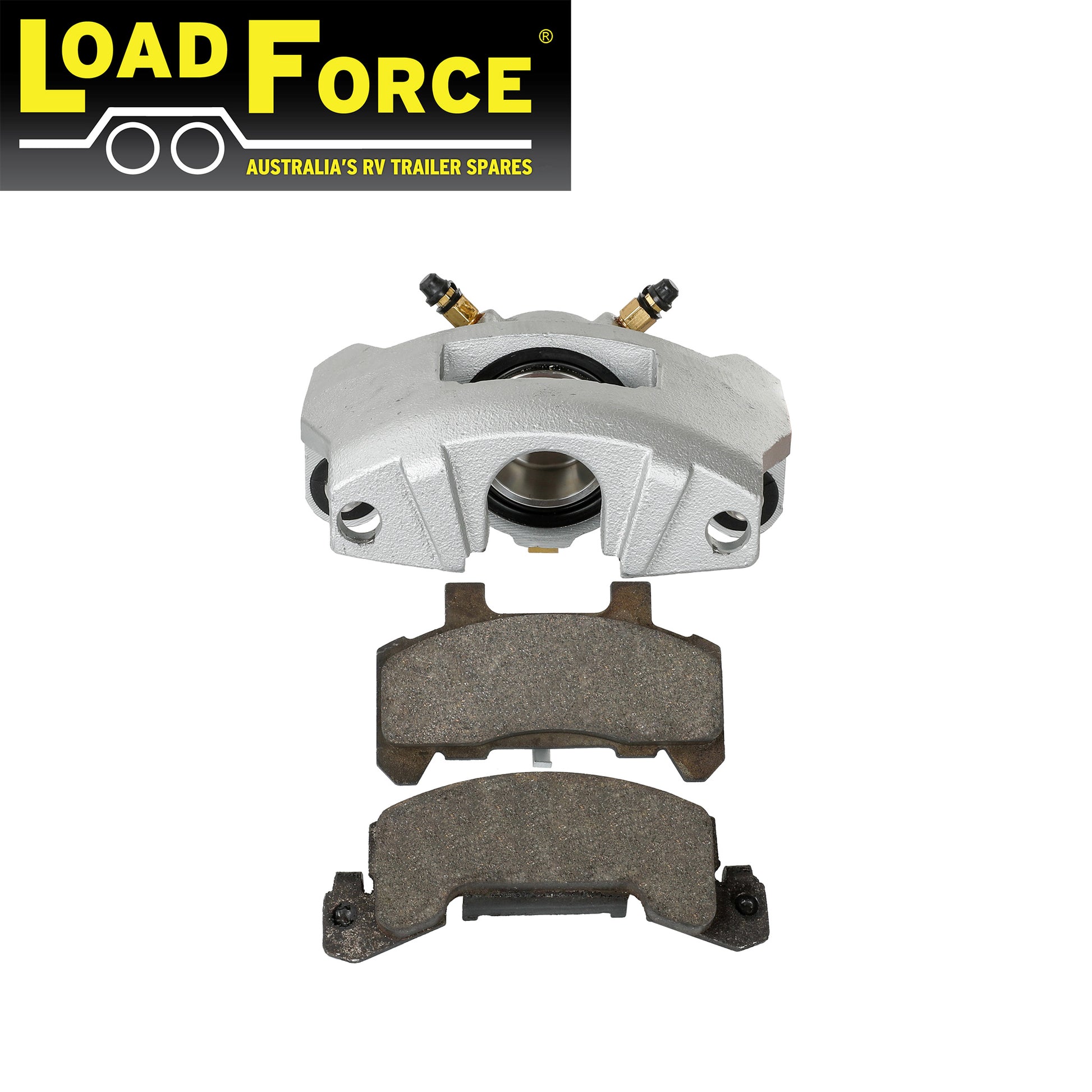

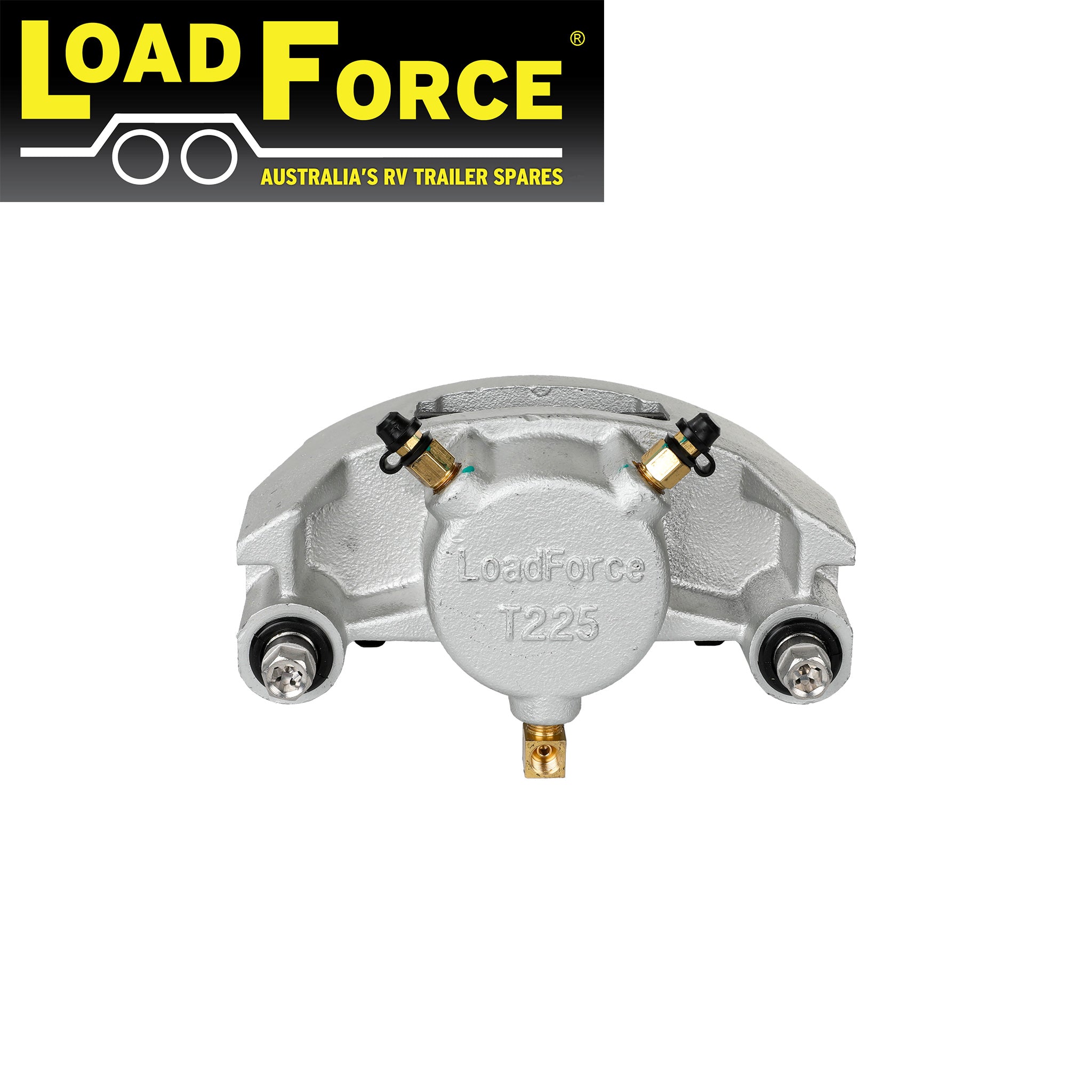

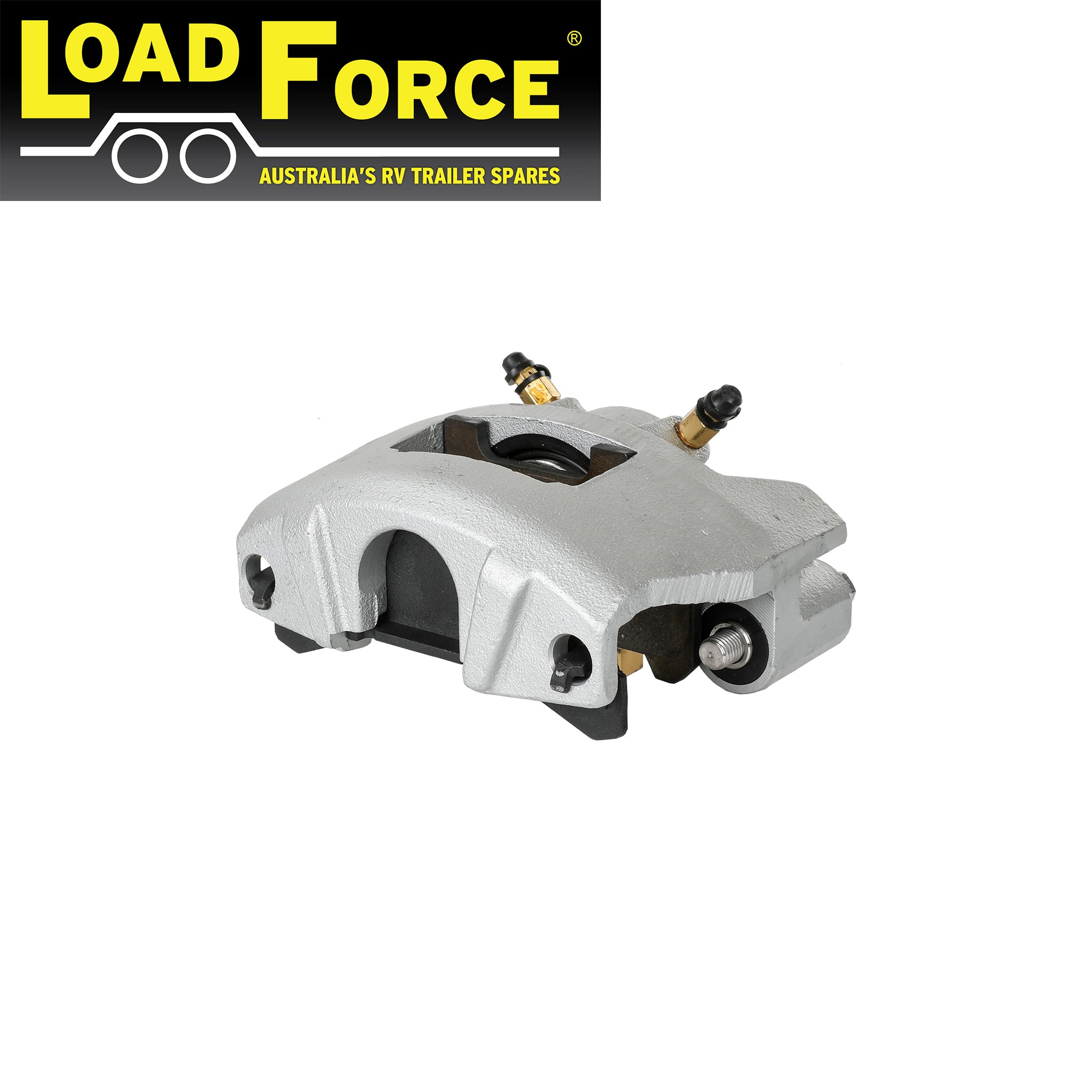

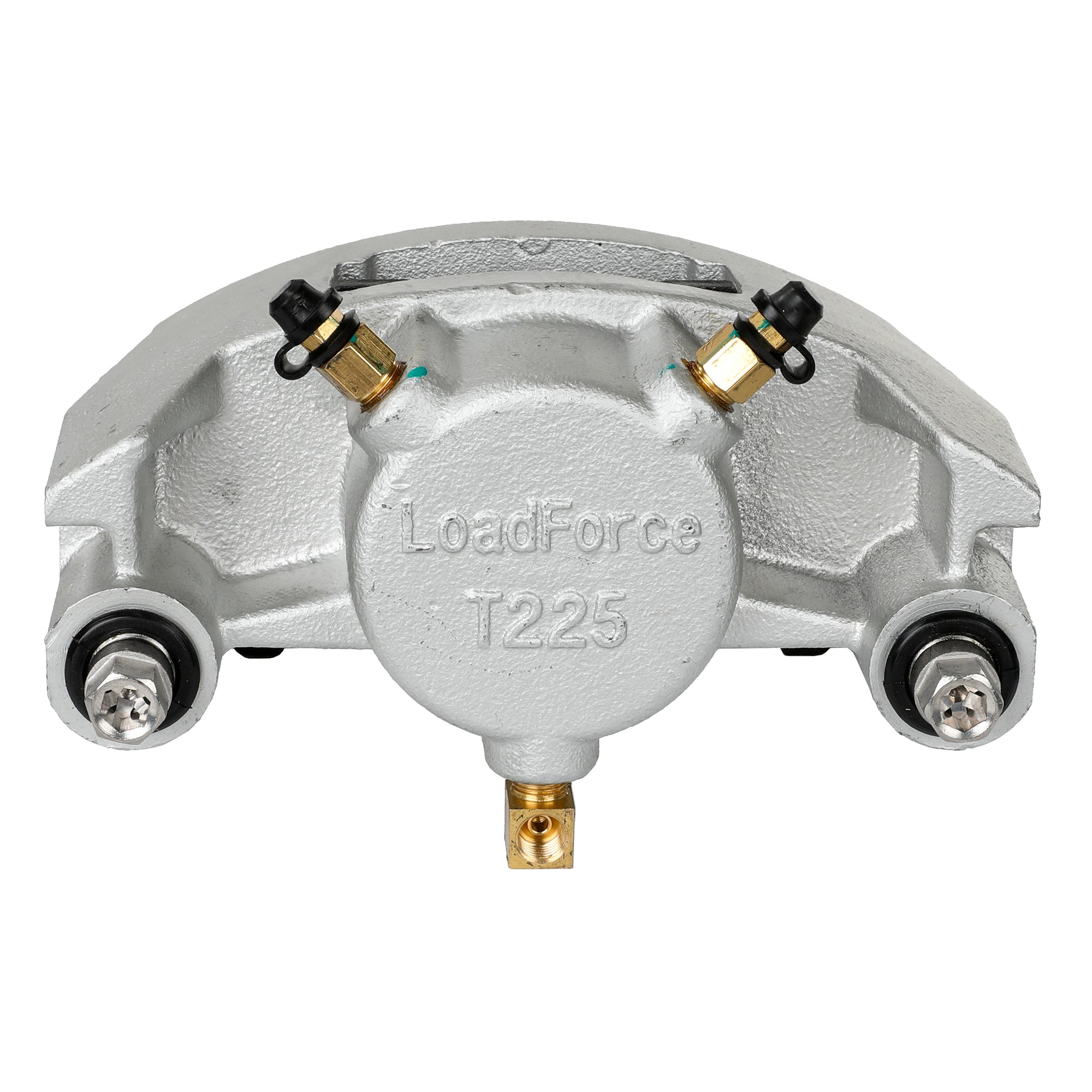

LoadForce T225 trailer brake caliper replaces Kodiak 225

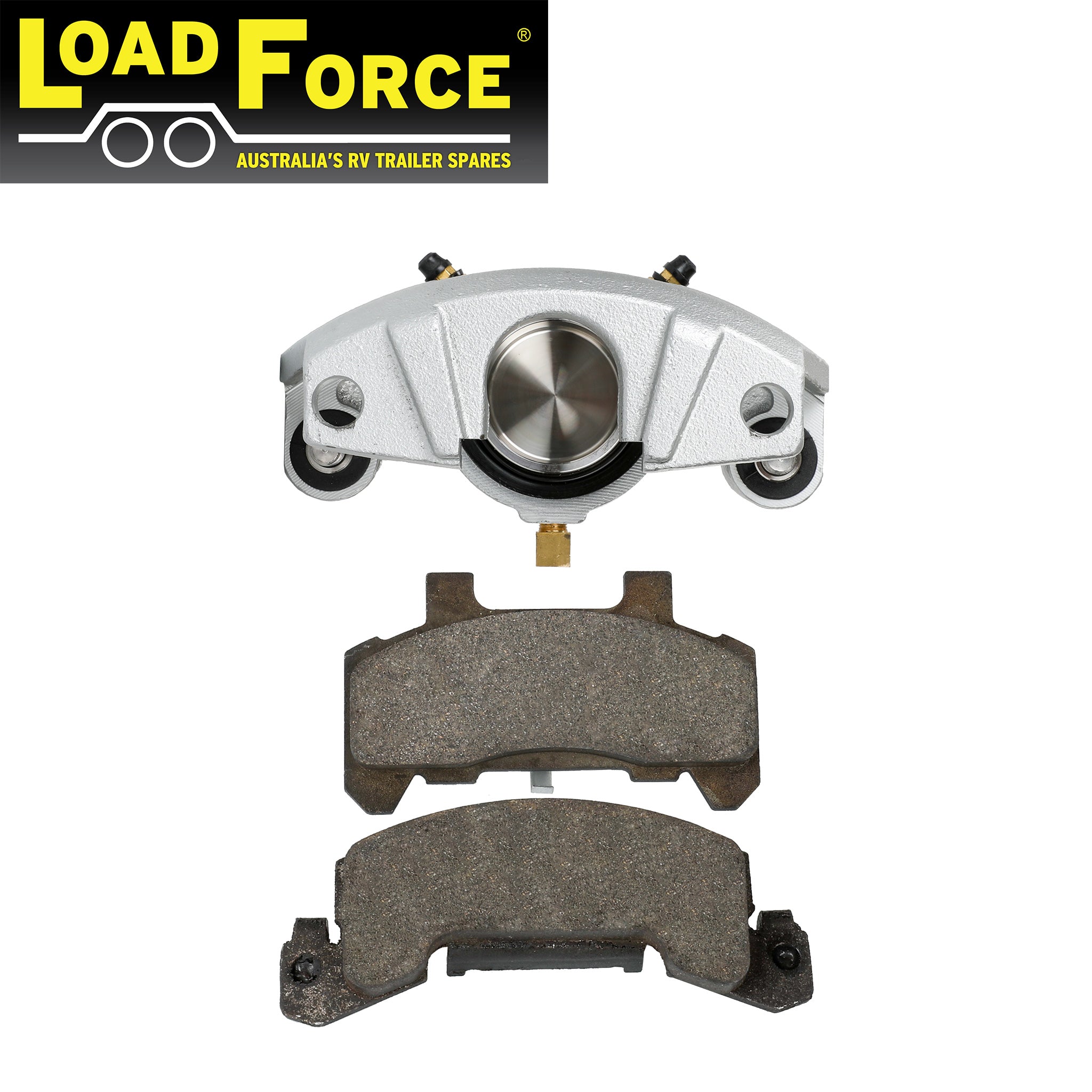

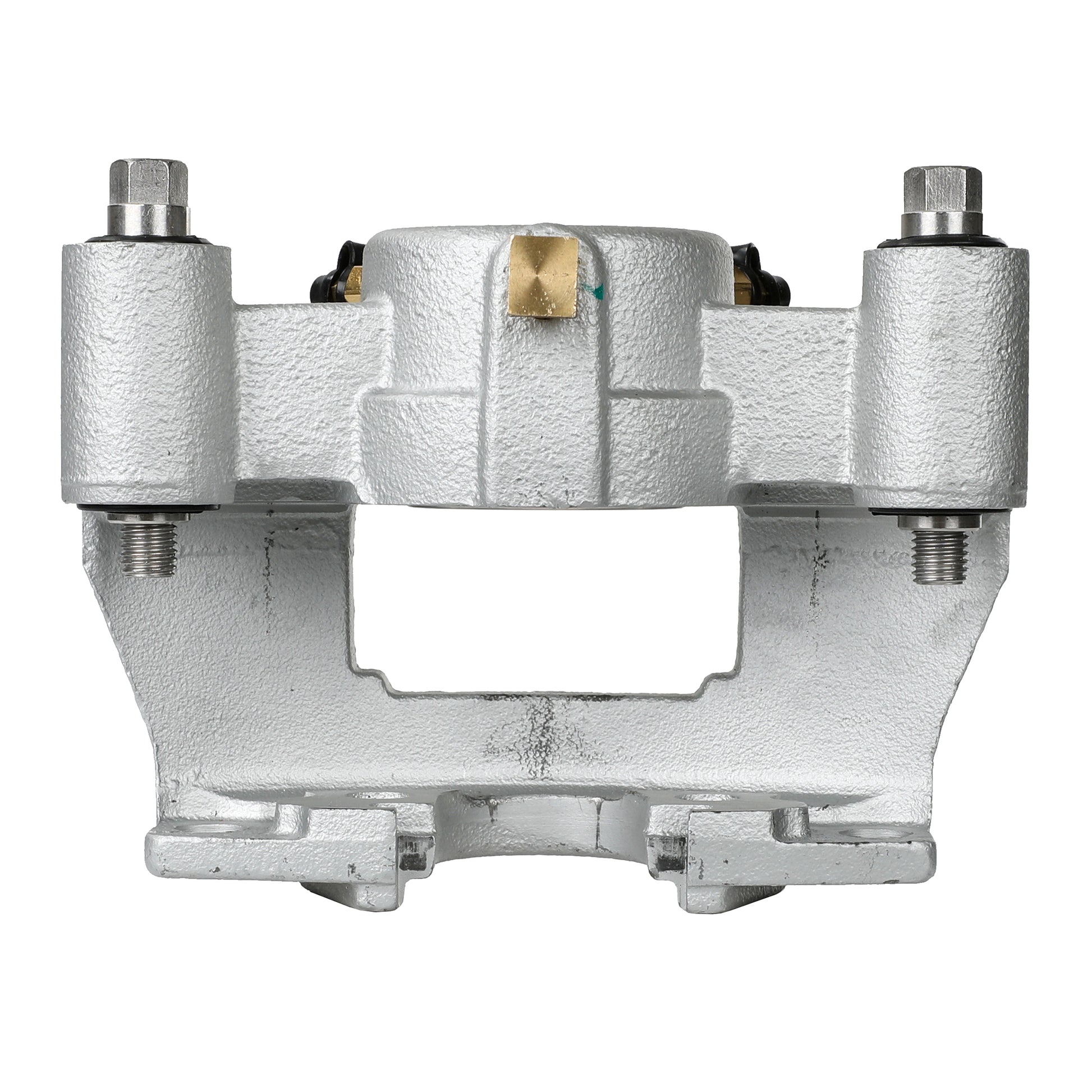

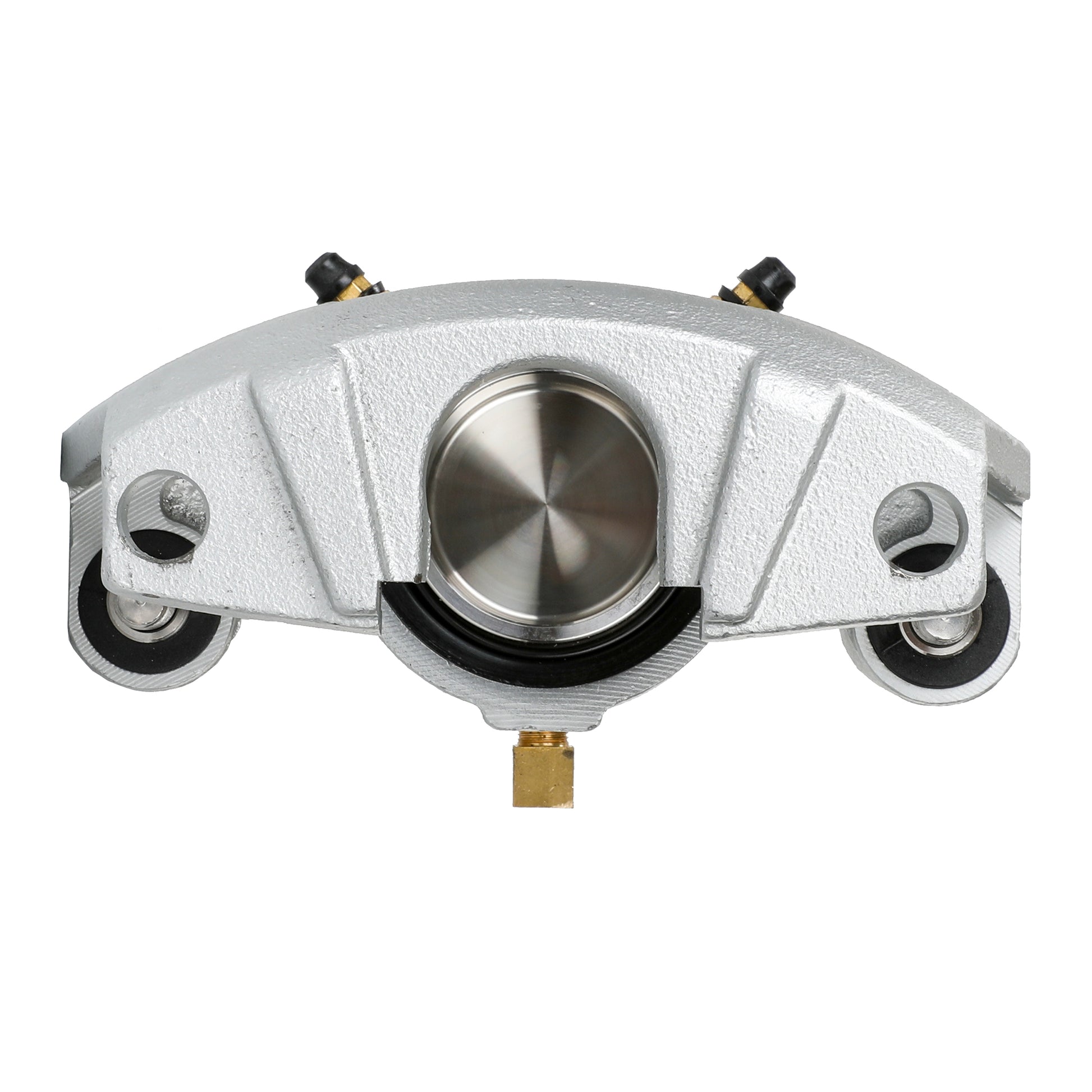

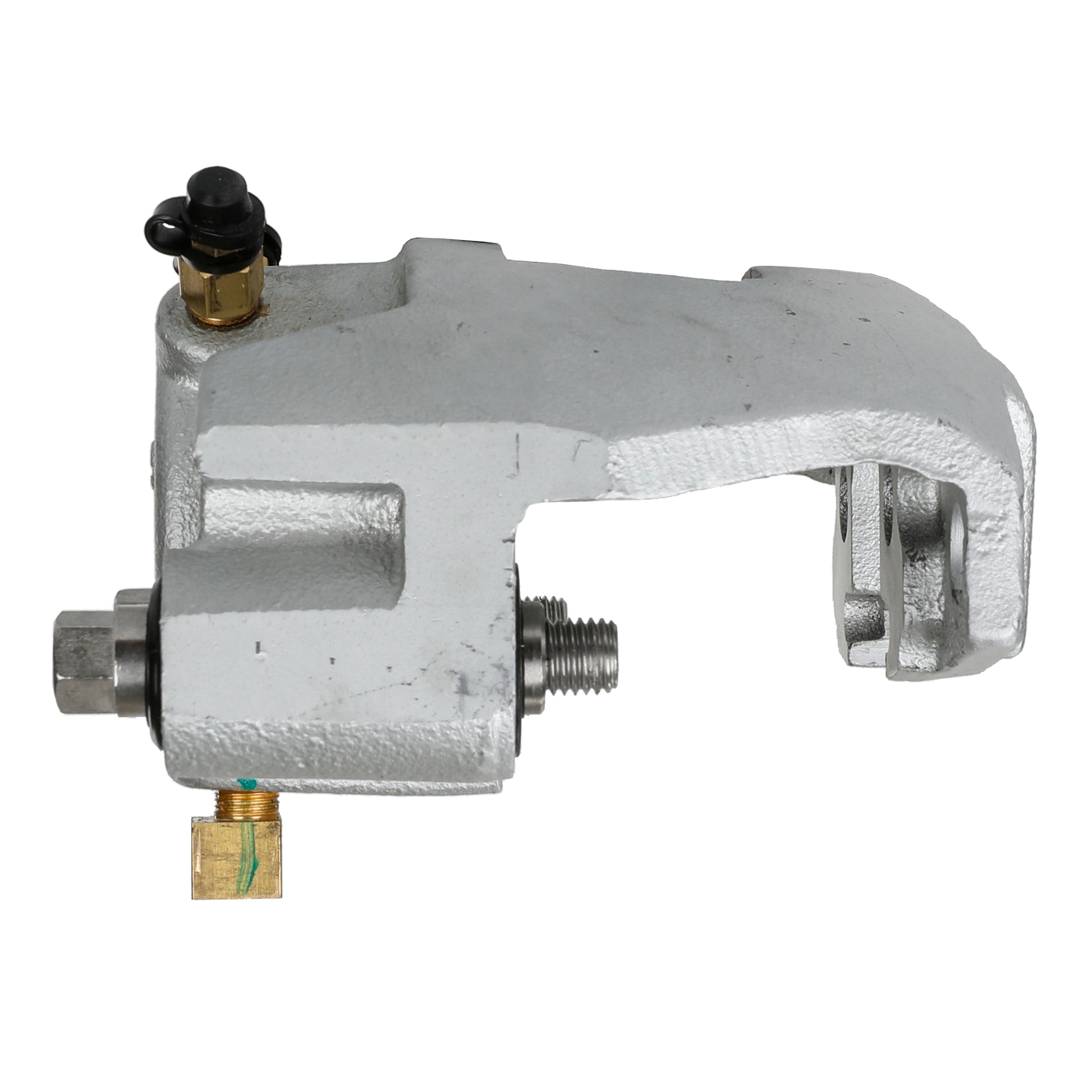

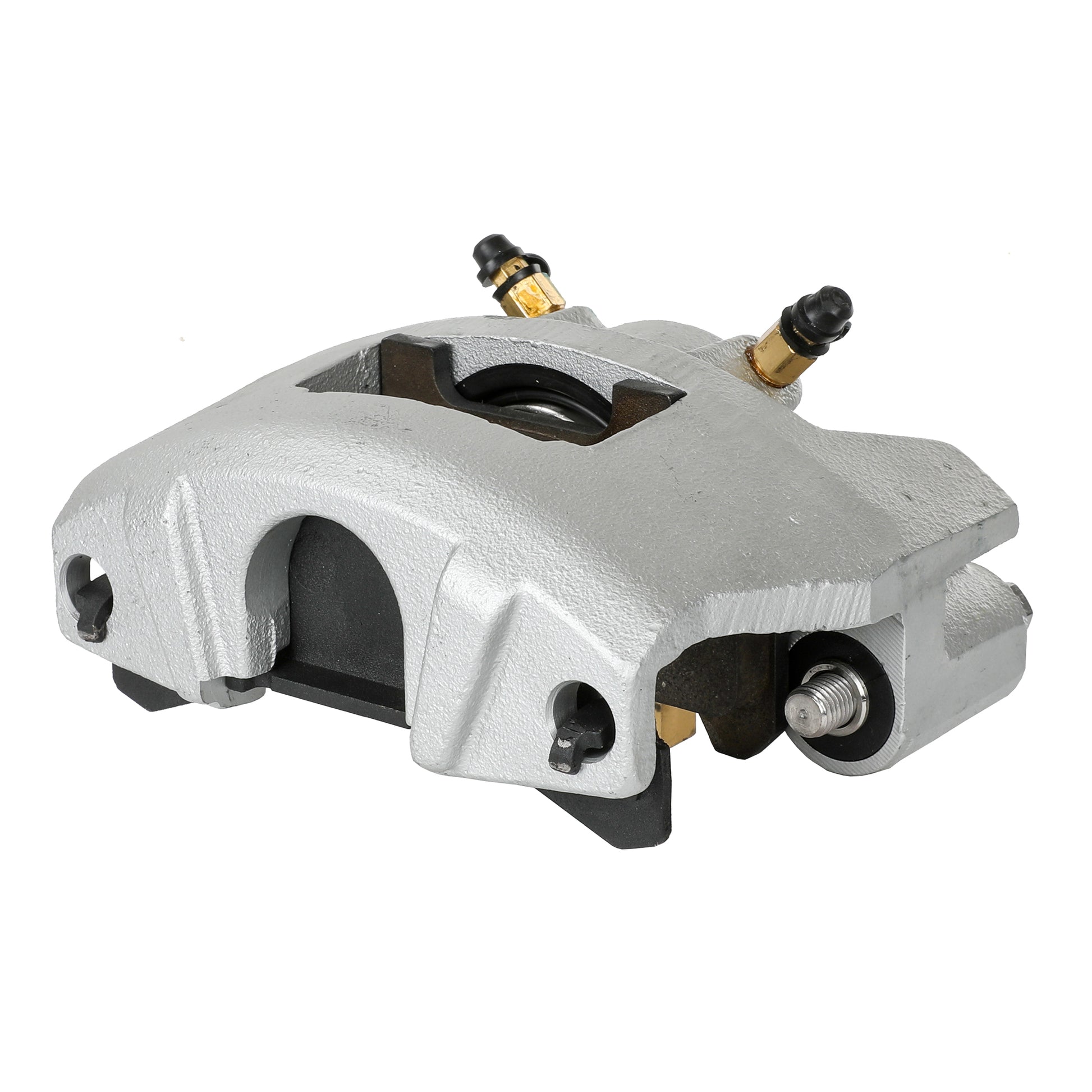

LoadForce T225 replacement for Kodiak 225 dacromet cast iron hydraulic trailer brake caliper. Found on some imported American-designed trailers, this brake caliper fits on 19mm (3/4 inch) up to 24mm disc. Fitted with a billet stainless steel caliper piston. Comes complete with brake pads, stainless slide pins, brass union and bleed screws.

When connecting your new trailer brake caliper to hydraulic brake lines, you must flush out the old brake fluid from the actuator (master cylinder or electric/hydraulic pump) and brake lines before connecting this new brake caliper.

Once flushed, connect the brake lines, refresh the system with new brake fluid, and bleed the air from the brake system.

It is compatible with Dot 3 and Dot 4 brake fluid; however, we recommend using Dot 4 Brake fluid as it has higher moisture resistance. Failure to flush the system could void the warranty.

The brake pads used in this caliper are premium products specifically designed for trailer applications. Large trailers carrying heavy loads can generate very high brake temperatures. The heavy-duty asbestos-free friction material formulation used in the LoadForce product is capable of handling high temperatures for long periods and minimizes the chances of brake fade.

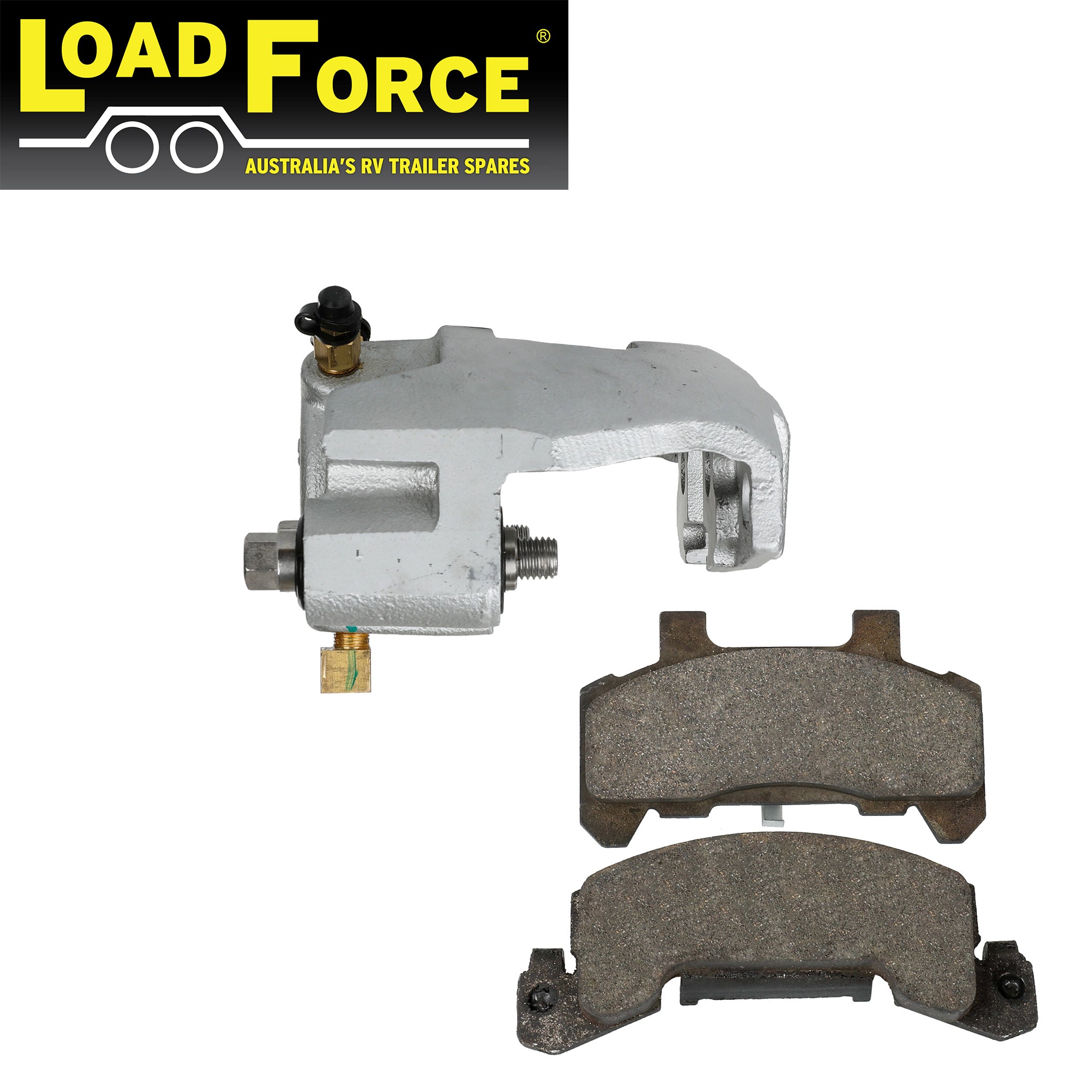

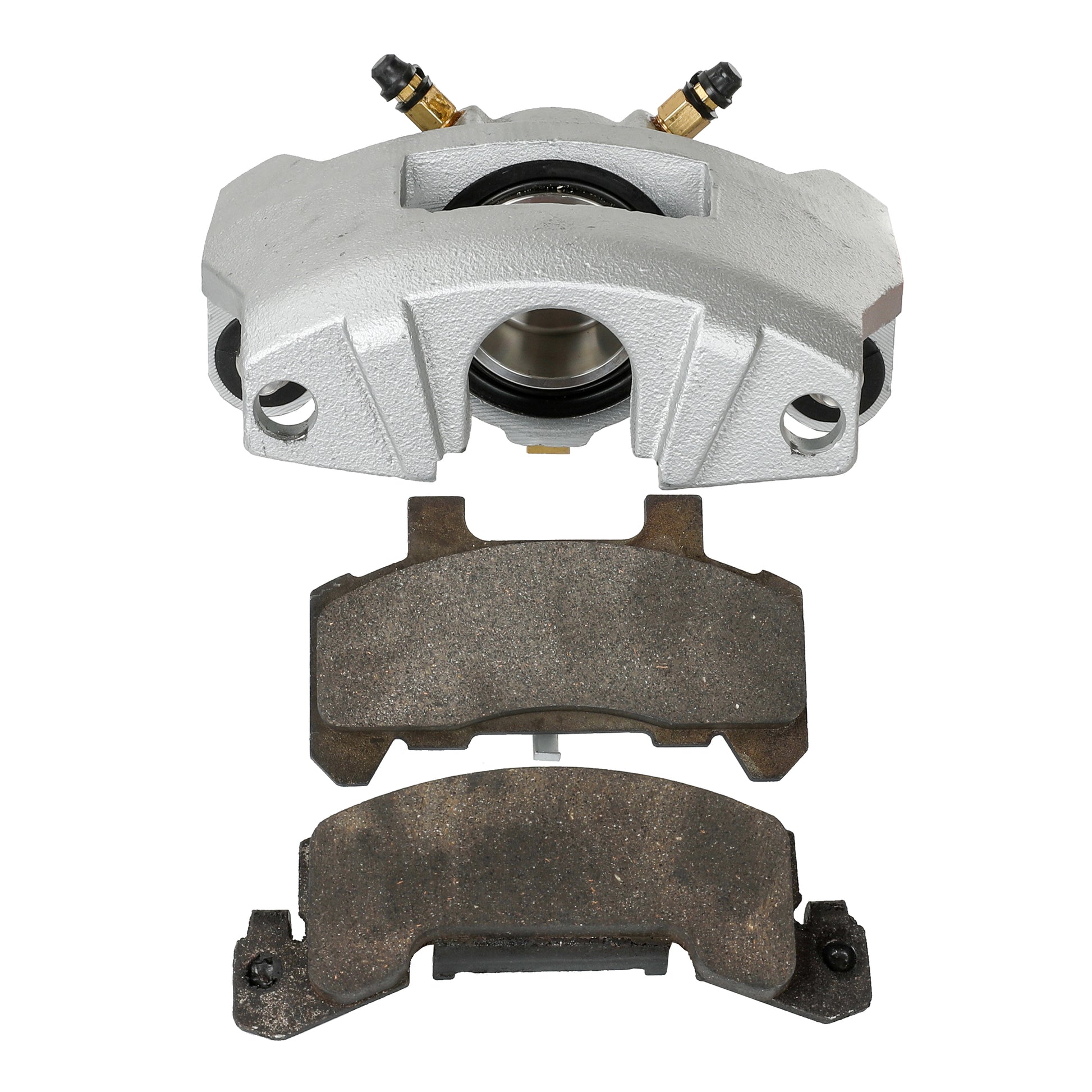

This brake caliper comes with a set of disc pads, for additional and spare disc pads see part number DPT225.

Ref: DBC-225-DAC, BB225SCAD
