12 inch 7/8 Ventilated Disc Hub Assy 6 Stud 15123 / 25580

Name: 12 inch 7/8 Ventilated Disc Hub Assy 6 Stud 15123 / 25580
Brand: LoadForce
SKU: DH78LCUS2.5
Price: 209.99 AUD
Availability: InStock

$209.99

Tax included. Shipping calculated at checkout.

DH78LCUS2.5

Product Information

LoadForce ventilated trailer disc brake hub 12 inch x 7/8 inch 6 stud USA 2.5t bearing. Supplied with quality Japanese bearings and Australian made hub seal. The hub is dacromet coated which is ideal for marine applications.

6 stud measurements: Stud diameter: 1/2 inch. PCD (Pitch circle diameter): 139.7mm (5.5inches). Stud distance: 70mm. Bearing: US 2.5t: Inner 15123/245 ; Outer 25580/20

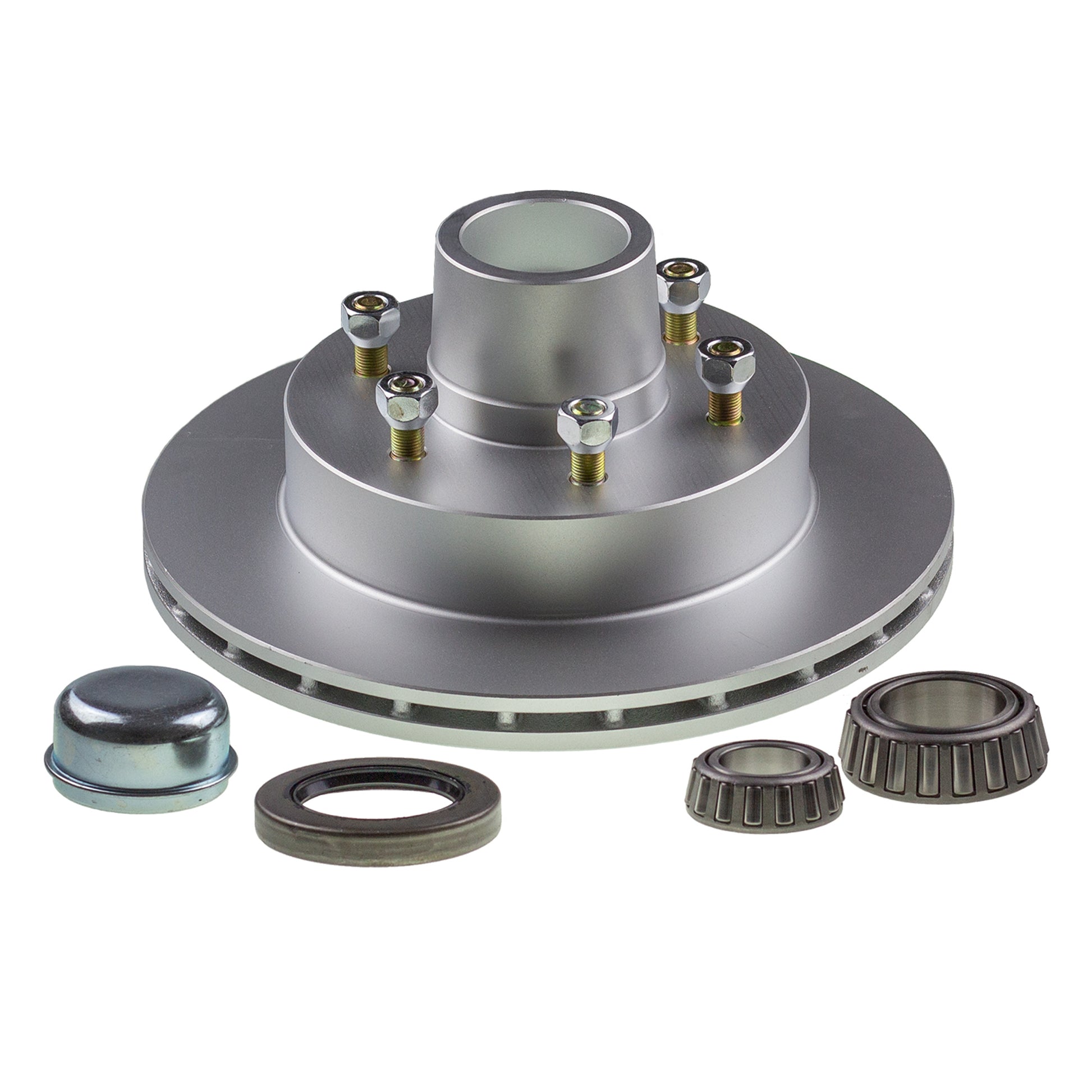

All disc hub assemblies come boxed complete with bearings, seal, dust cap, stud and nuts.

Specifications

Specifications:
Disc Diameter: 300mm (12")
Disc Thickness: 22mm (7/8")
Stud Pattern: Landcruiser 6 Stud (1/2" Stud Diameter)
PCD: 139.7mm
Stud Distance: 70mm
Koyo Japanese Bearings: USA 2.5T - 25580/20 & 15123/245 bearings and cones
High quality seal
Dust cap
Fitted studs & nuts
Finish: Dacromet Coated for Corrosion Resistance
