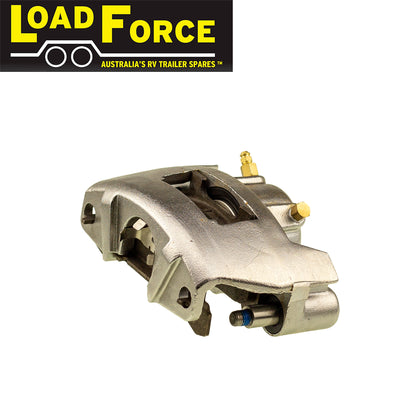

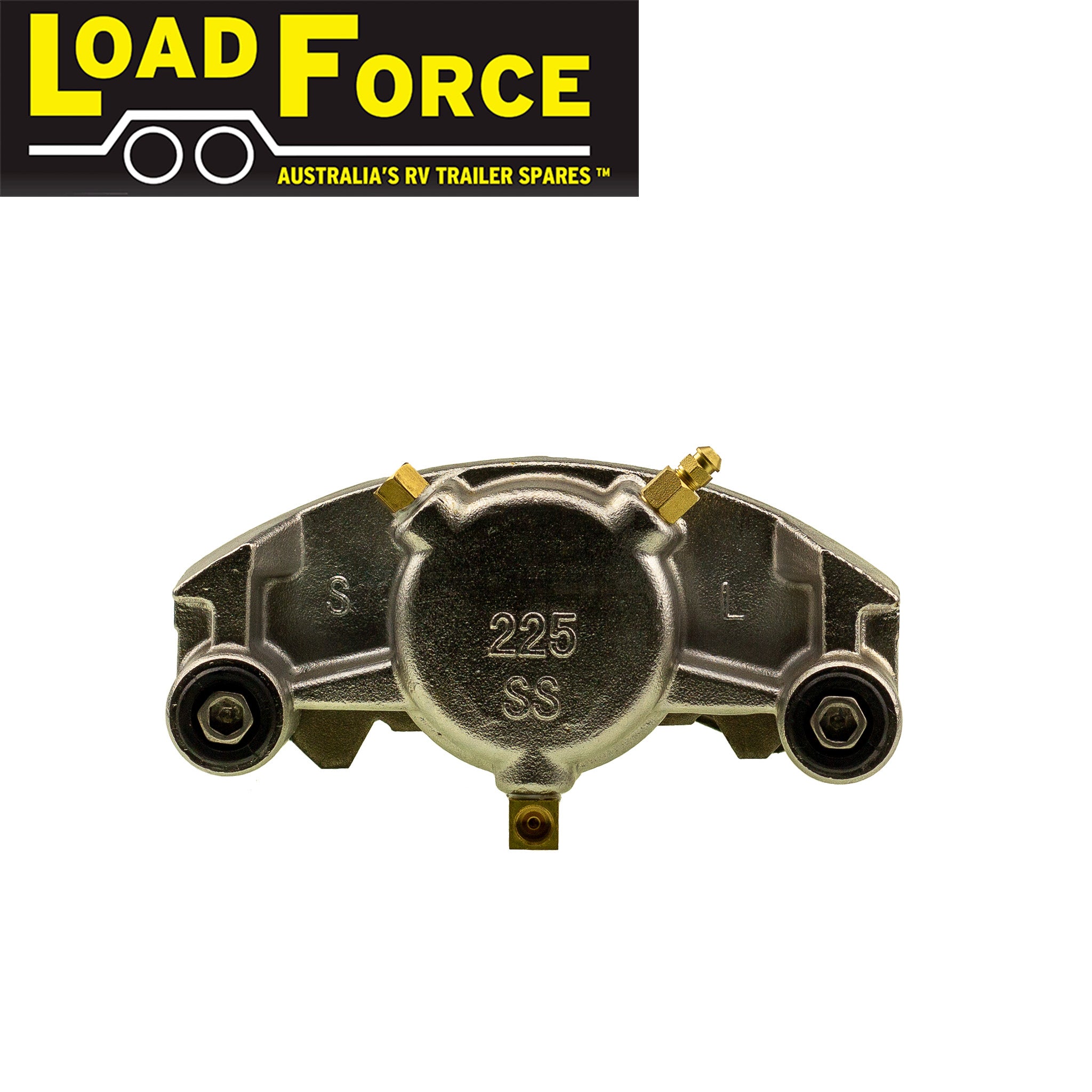

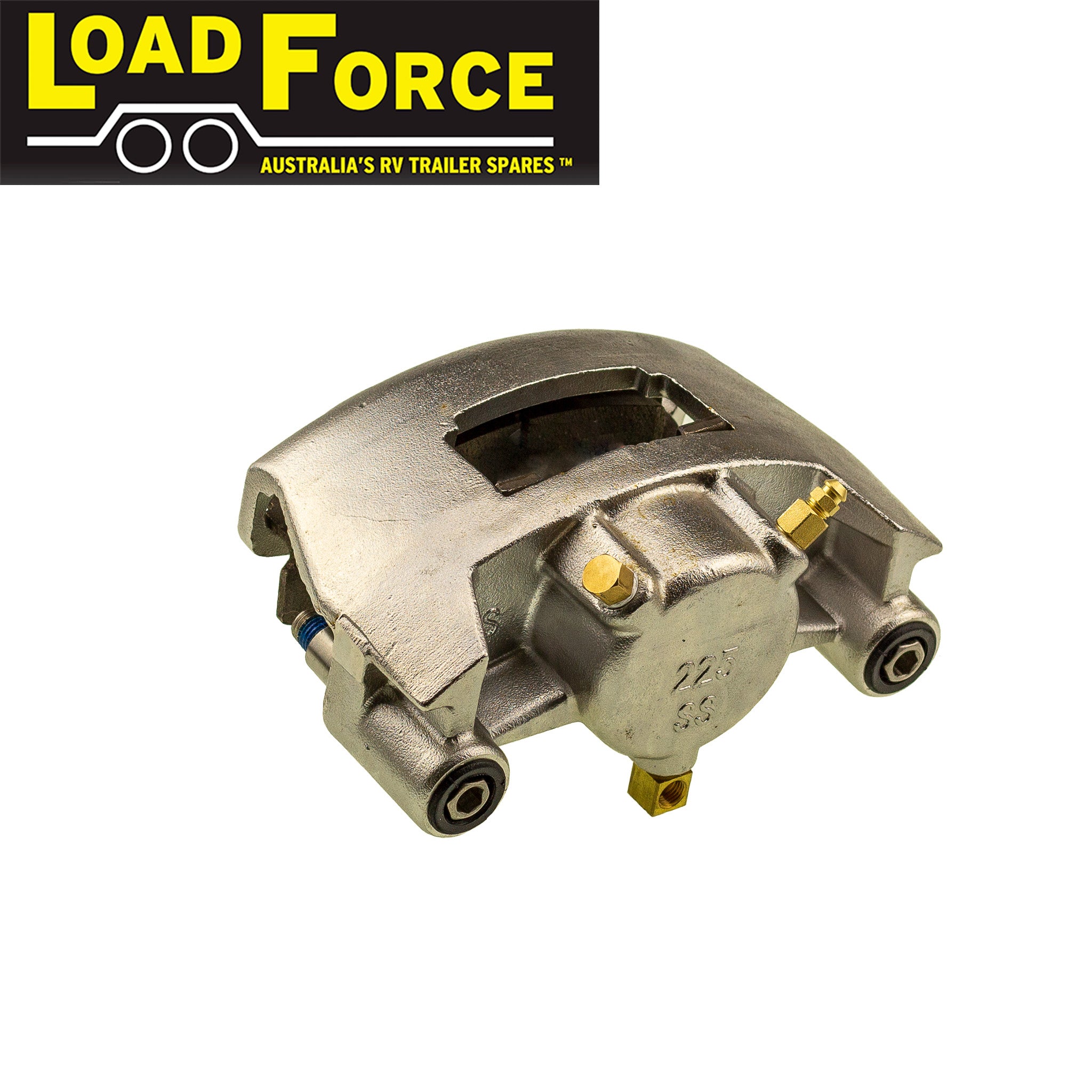

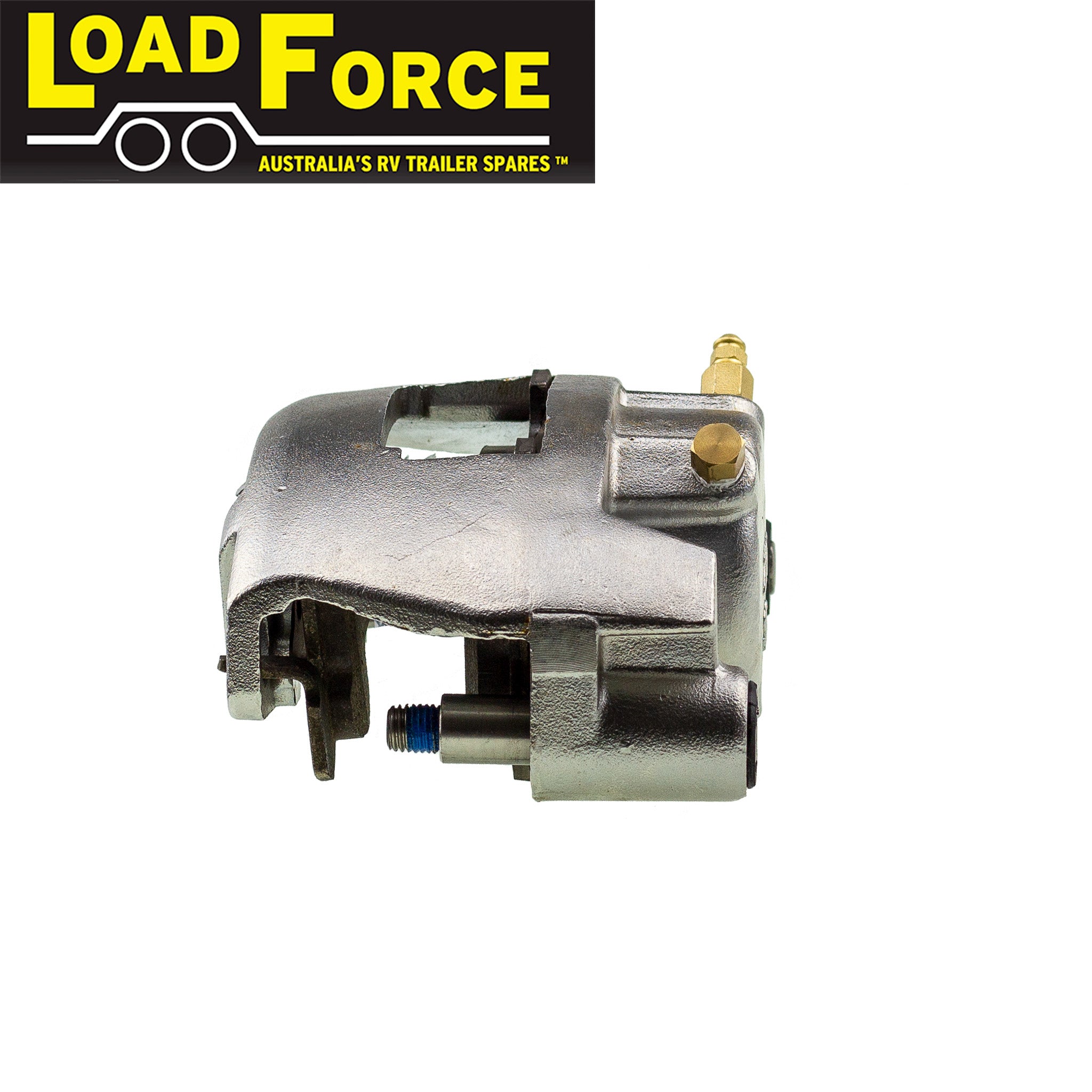

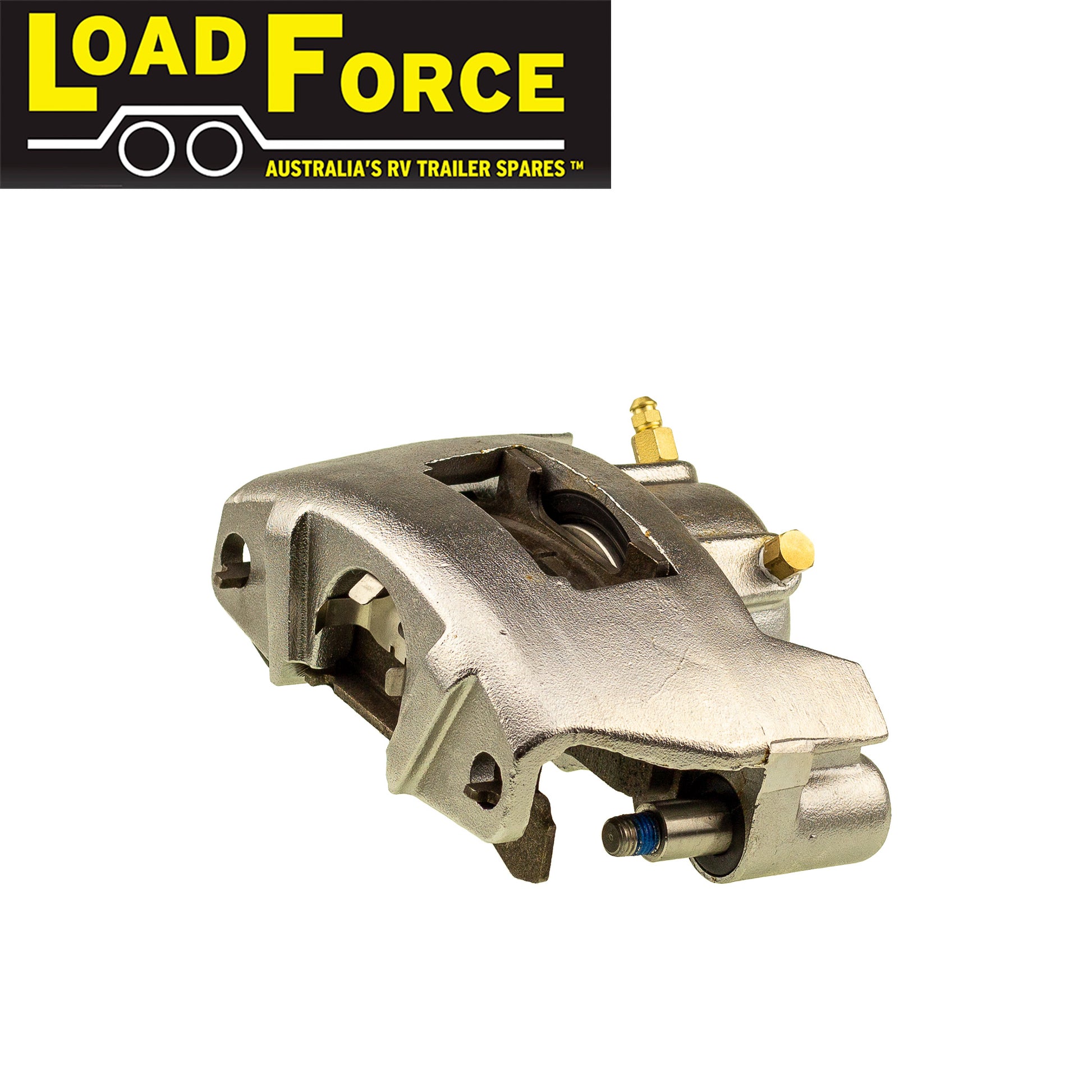

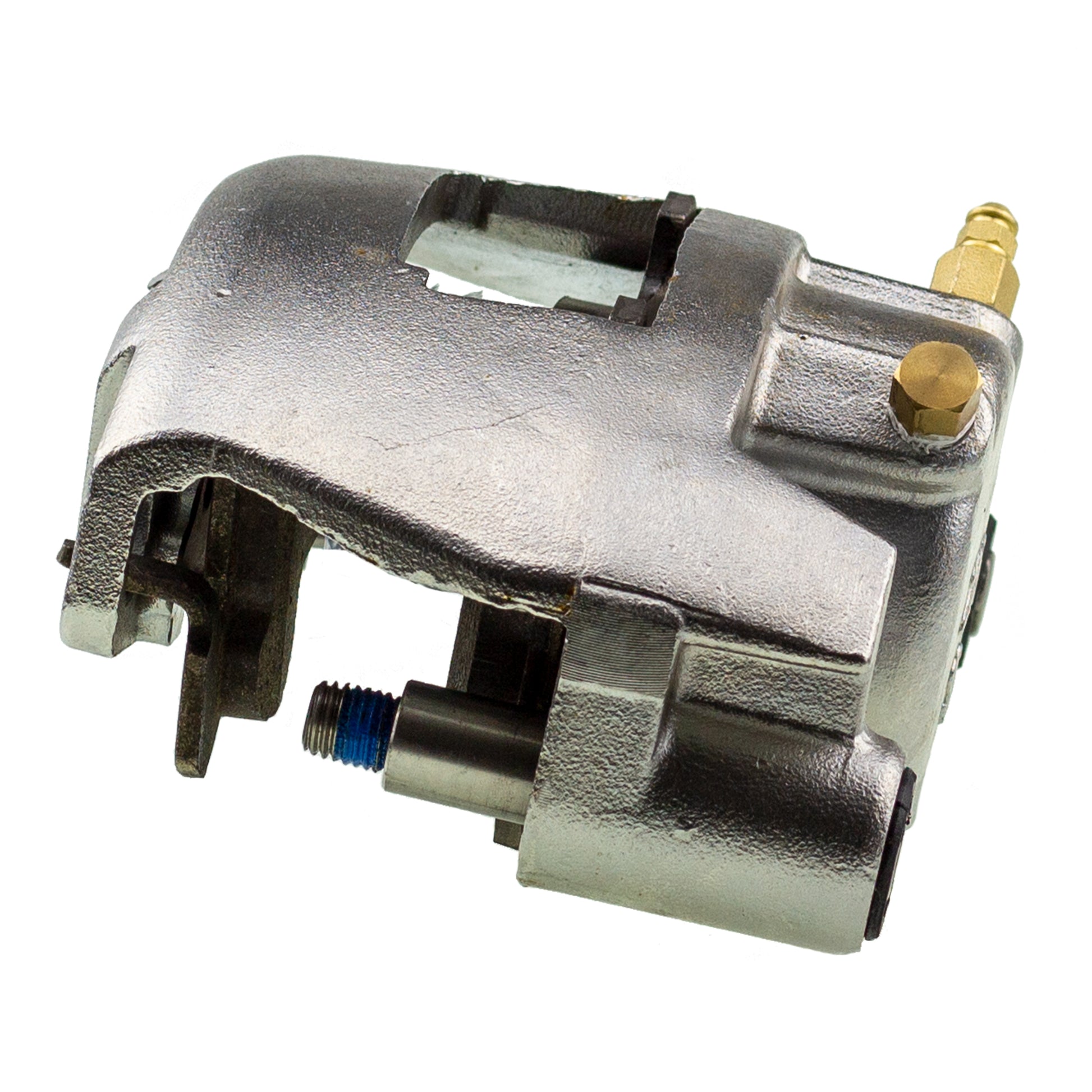

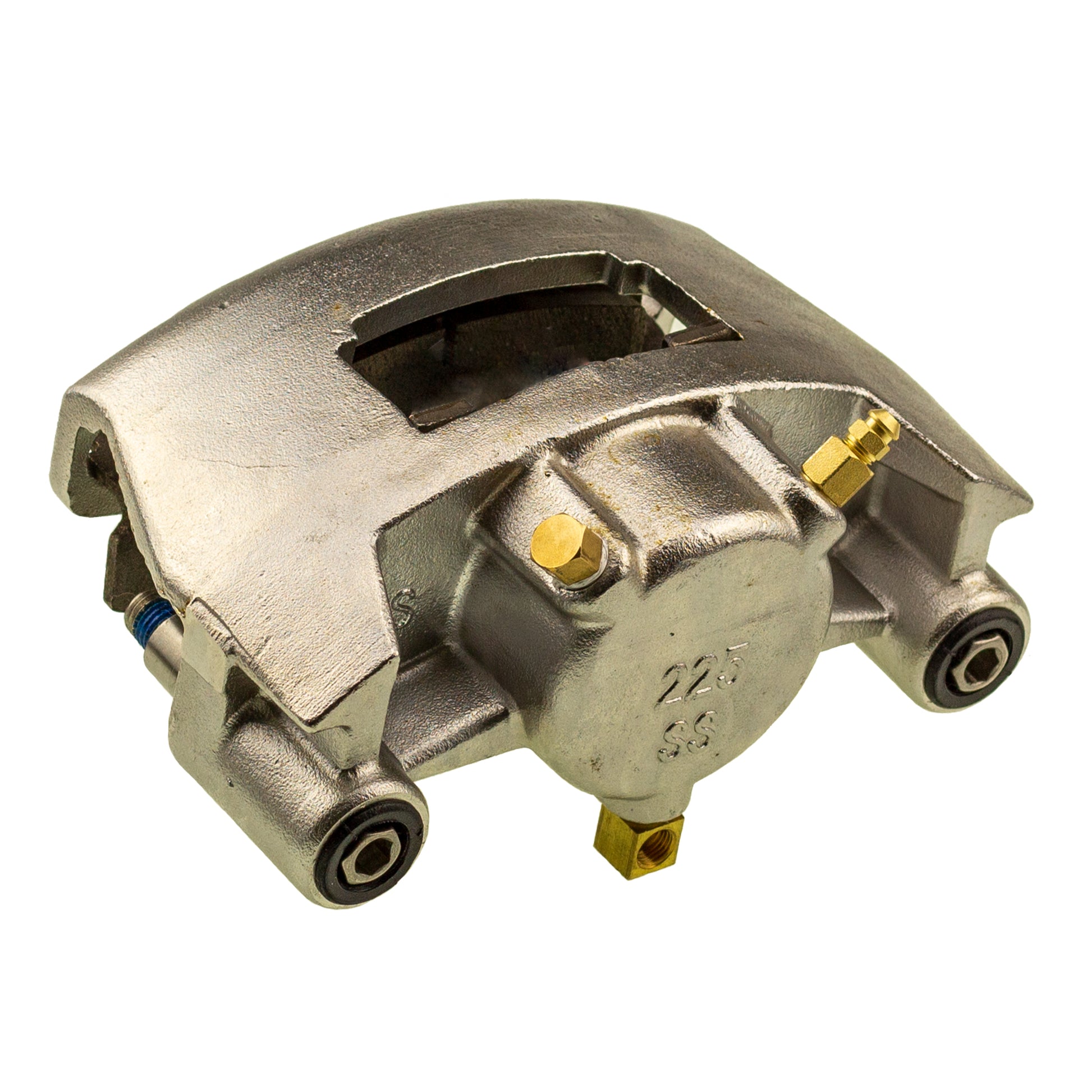

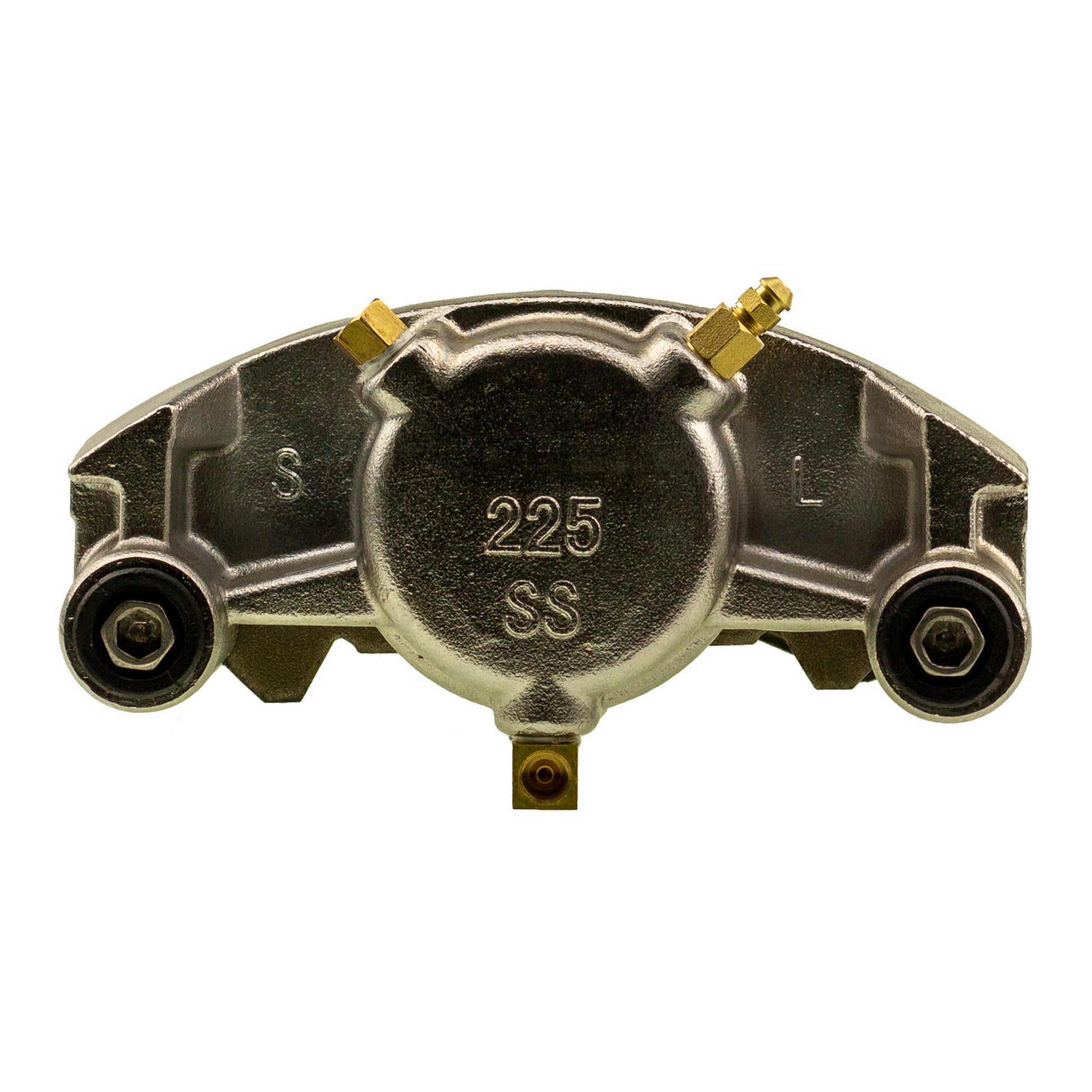

LoadForce DBC-225-SS stainless steel trailer brake caliper replaces Kodiak 225

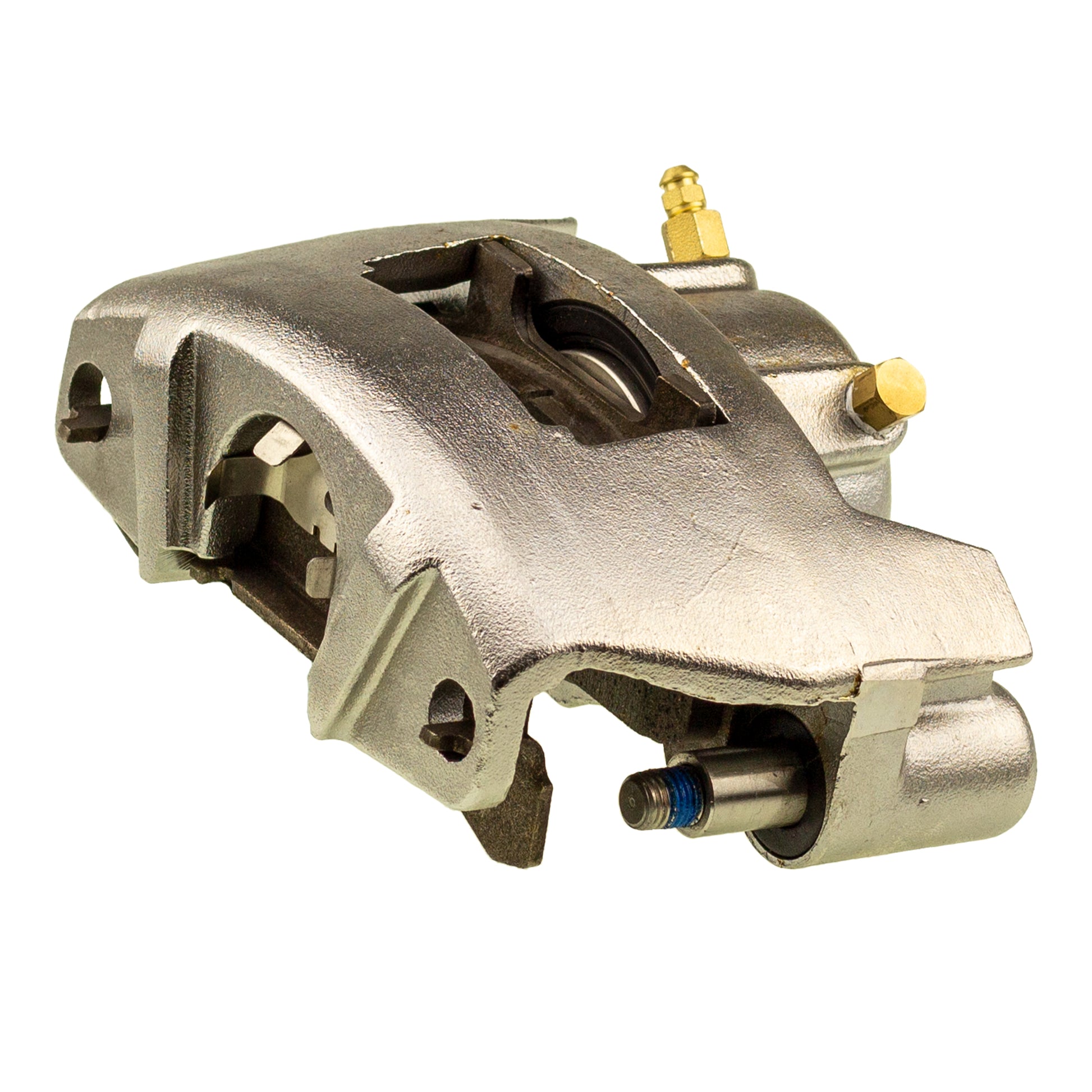

LoadForce DBC-225-SS stainless steel hydraulic trailer brake caliper. Replaces the Kodiak 225 found on imported and American designed trailers. This trailer brake caliper fits on 19mm (3/4 inch) up to 24mm disc. Comes complete with brake pads, stainless slide pins, brass union and bleed screw.

When connecting your new trailer brake caliper to hydraulic brake lines you must flush out the old brake fluid from the actuator (master cylinder or electric/hydraulic pump) and brake lines before connecting this new caliper.

Once flushed, then connect brake lines, refresh the system with new brake fluid and bleed air from the brake system.

Compatible with Dot 3 and Dot 4 brake fluid, however we do recommend using Dot 4 Brake fluid as it has higher moisture resistance. Failure to flush the system could void warranty.

The brake pads used in this caliper are a premium product specifically designed for trailer applications. Large trailers carrying heavy loads can generate very high brake temperatures. The heavy duty asbestos free friction material formulation used in the LoadForce product is capable of handling high temperatures for long time periods and minimizes the chances of brake fade.

A set of disc pads come with the caliper, for spares and additional disc pads for this brake caliper order part number DPK225.

Ref: DBC-225-SS, BB225SS
