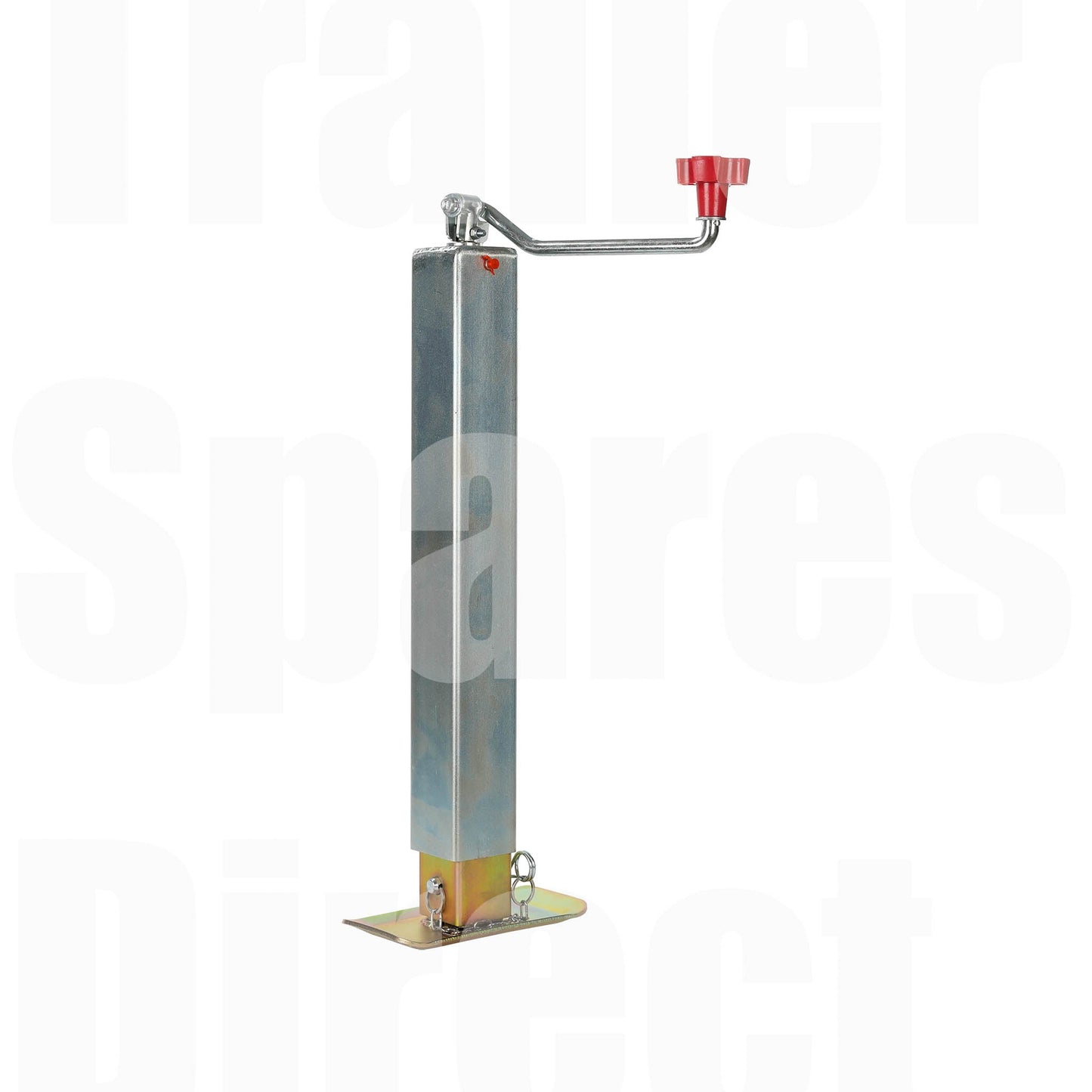

Jack Stand 65mm Drop Leg Top Wind - capacity 1250kg

Name: Jack Stand 65mm Drop Leg Top Wind - capacity 1250kg
Brand: Trailer Spares Direct
SKU: JSTW65-DL
Price: 229.99 AUD
Availability: InStock

$229.99

Tax included. Shipping calculated at checkout.

JSTW65-DL

Product Information

Jack stand 65mm top wind drop leg. Handle swings away to protect it when in storage position. Zinc plated for corrosion protection. Grease nipple for lubrication of the worm drive gears. Swivel tube mounts are also available.

Outer tube 65x65mm

Drop leg 50x50mm

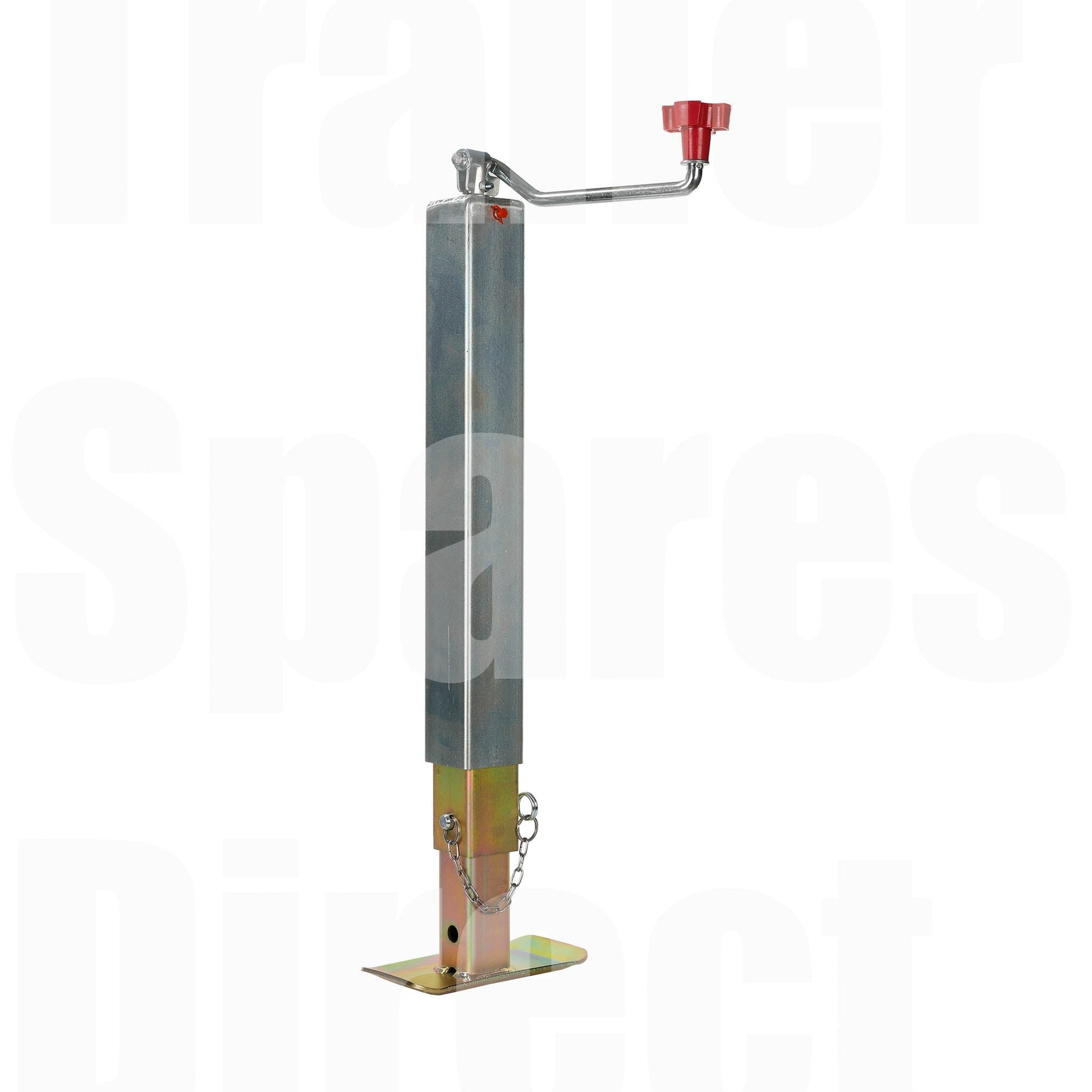

Compressed length 555mm with a winding lift of 350mm and up to an additional 300mm when the drop leg is deployed.

Static load capacity 1250kg Lifting capacity of 325kg

Specifications

Outer Tube: 65 x 65 mm — Main structural tube for robust support.

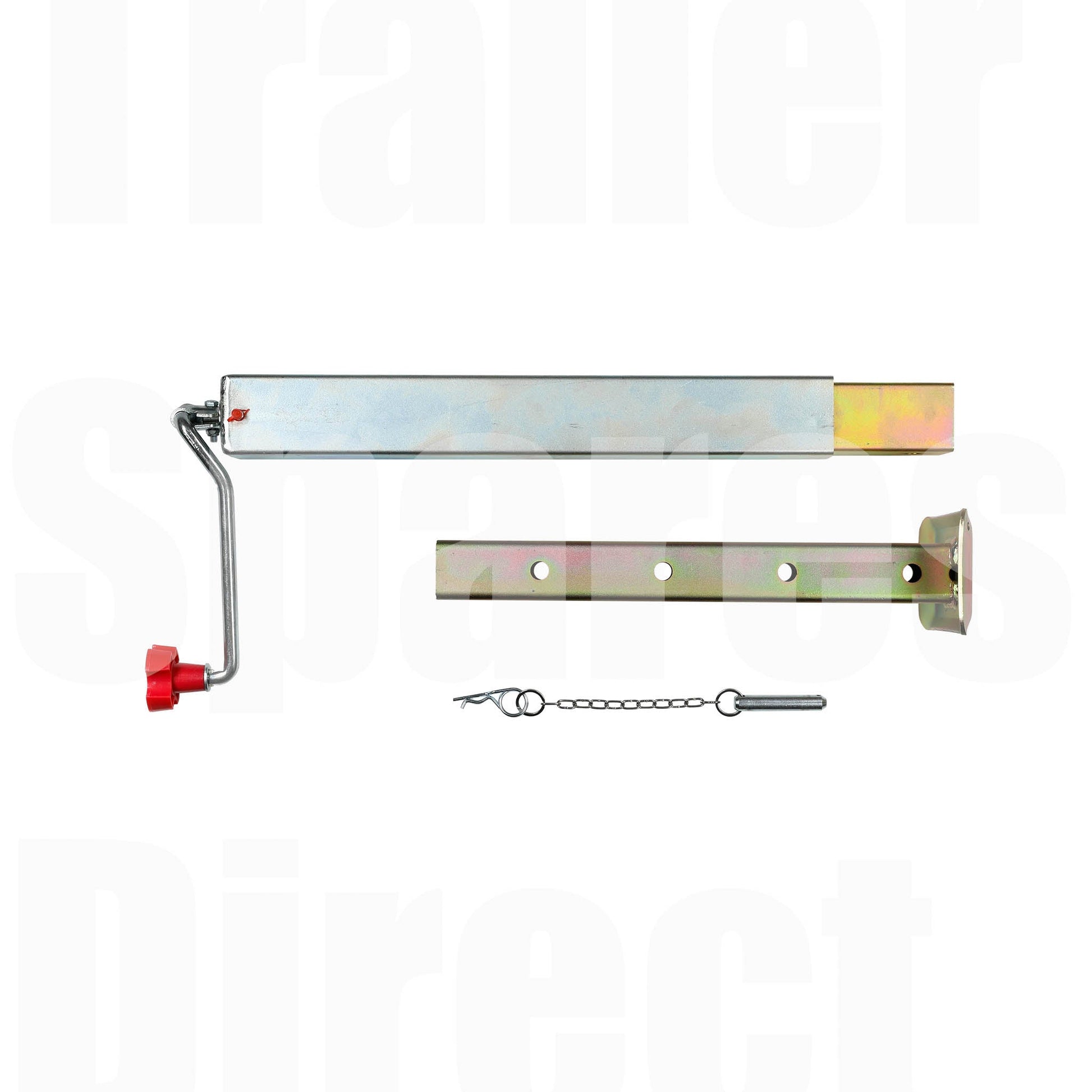

Drop Leg Tube: 50 x 50 mm — Inner sliding leg for adjustable height.
Compressed Length: 555 mm with 350 mm winding lift; additional 300 mm extension when the drop leg is deployed.
Load Ratings: Static load capacity 1,250 kg; lifting capacity 325 kg.

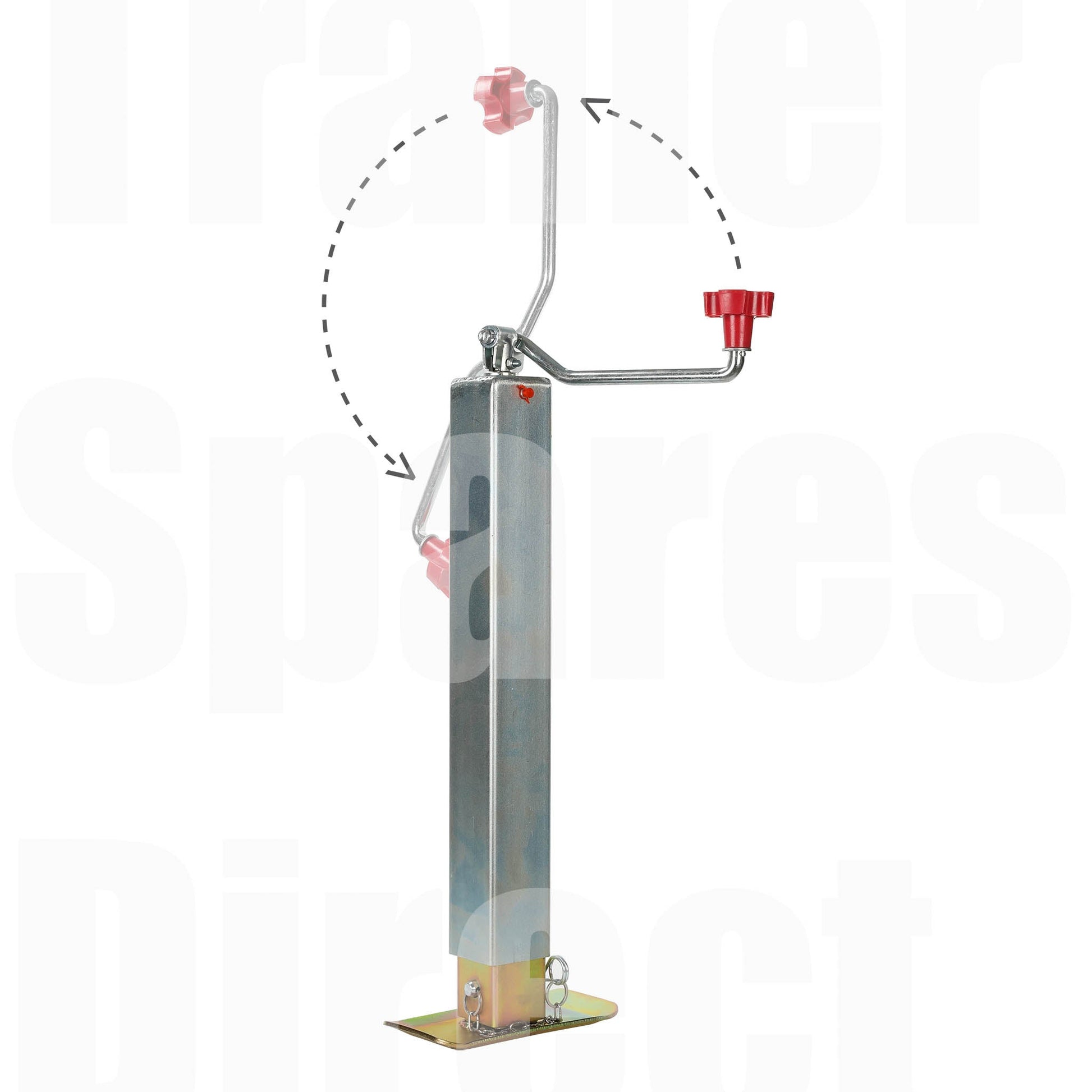

Handle: Swing-away design protects the handle when stored.
Finish: Zinc-plated for corrosion resistance.

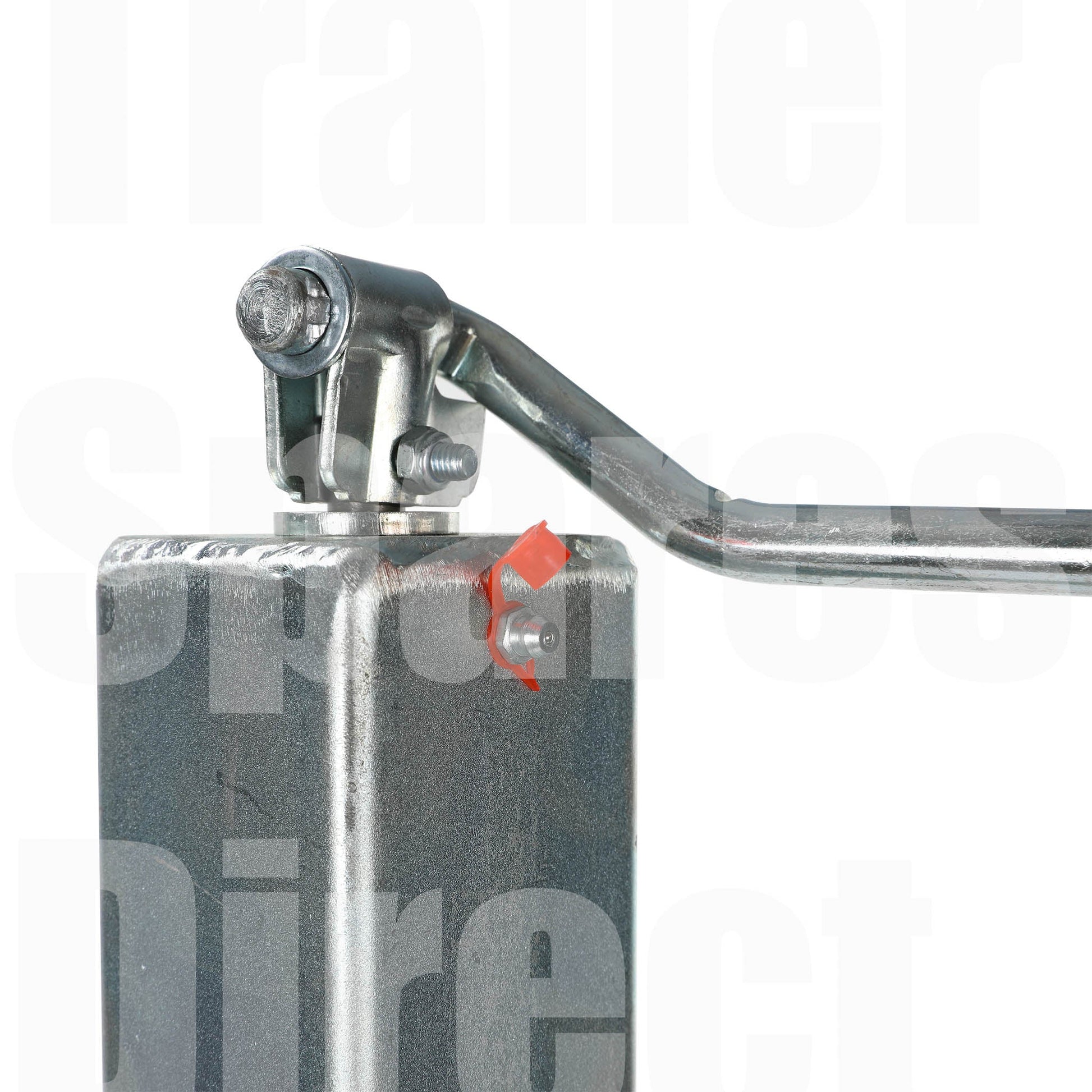

Maintenance: Grease nipple for convenient maintenance
