Raptor 63.5mm 4500kg Receiver Bar Hitch - US truck models - RAM, Chev, GMC

Product Description
$559.35 incl. GST
Maximum quantity available reached.

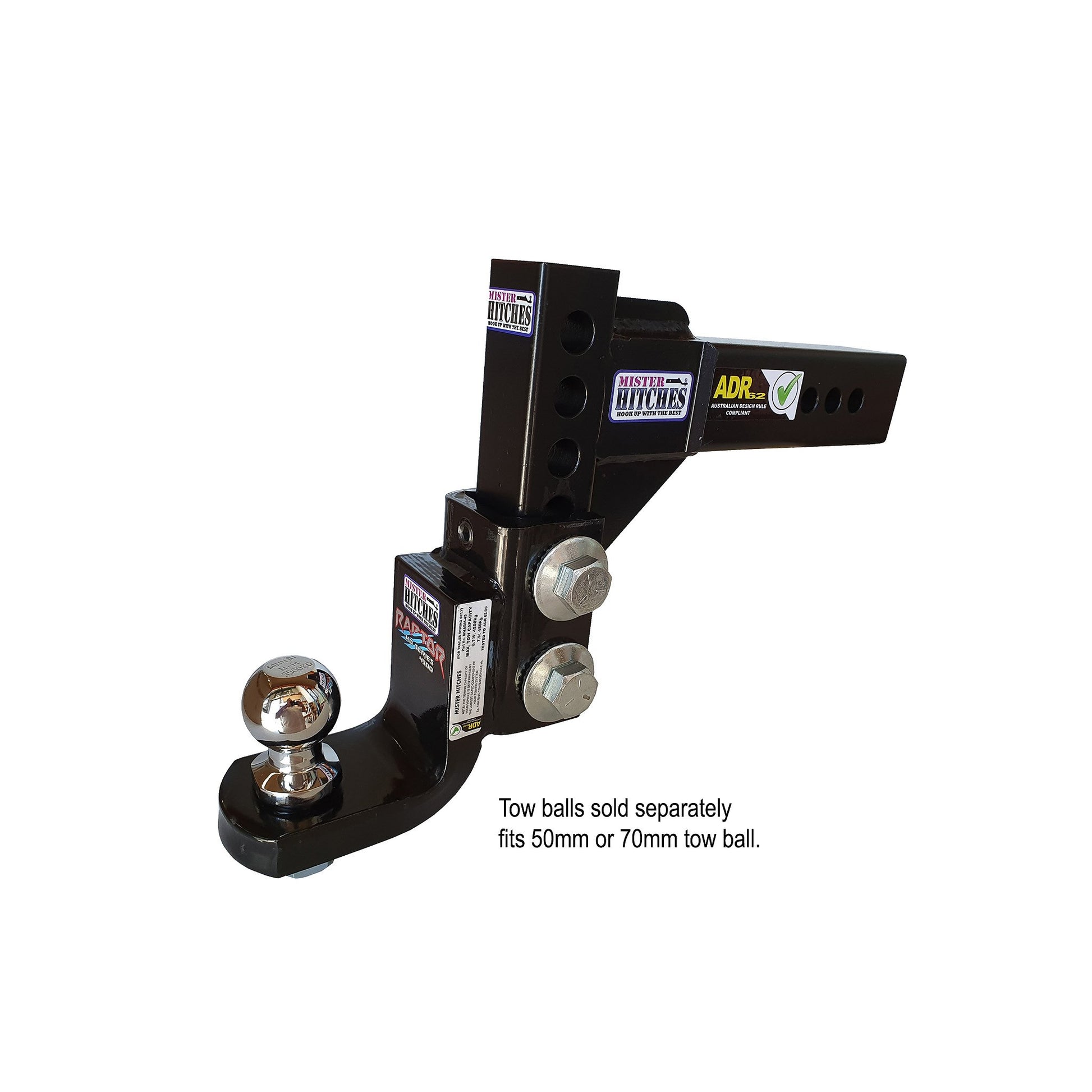

Mister Hitches Raptor heavy-duty ball mount hitch to suit 63.5mm (2 1/2inch) square shanked tow bar receivers. Designed for the popular American truck import vehicles such as Dodge Ram, GMC Sierra, Chev Silverado, Ford F-Series and Toyota Tundra. Rated at 4.5 tonne.

Raptor 4.5 tonne is a 20 stage adjustable hitch with:

  • G.T.W: 4500kg
  • T.W: 450kg

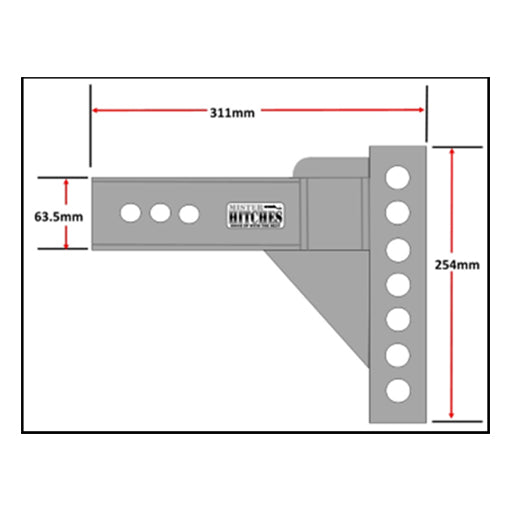

  • 3 pin holes for adjustable lengths 330mm 355mm 380mm
  • 20 adjustable tow positions
  • Maximum drop 245mm
  • Maximum rise 205mm
  • Solid 63.5mm square shank - 2-1/2inch
  • reversible shank and ball platform

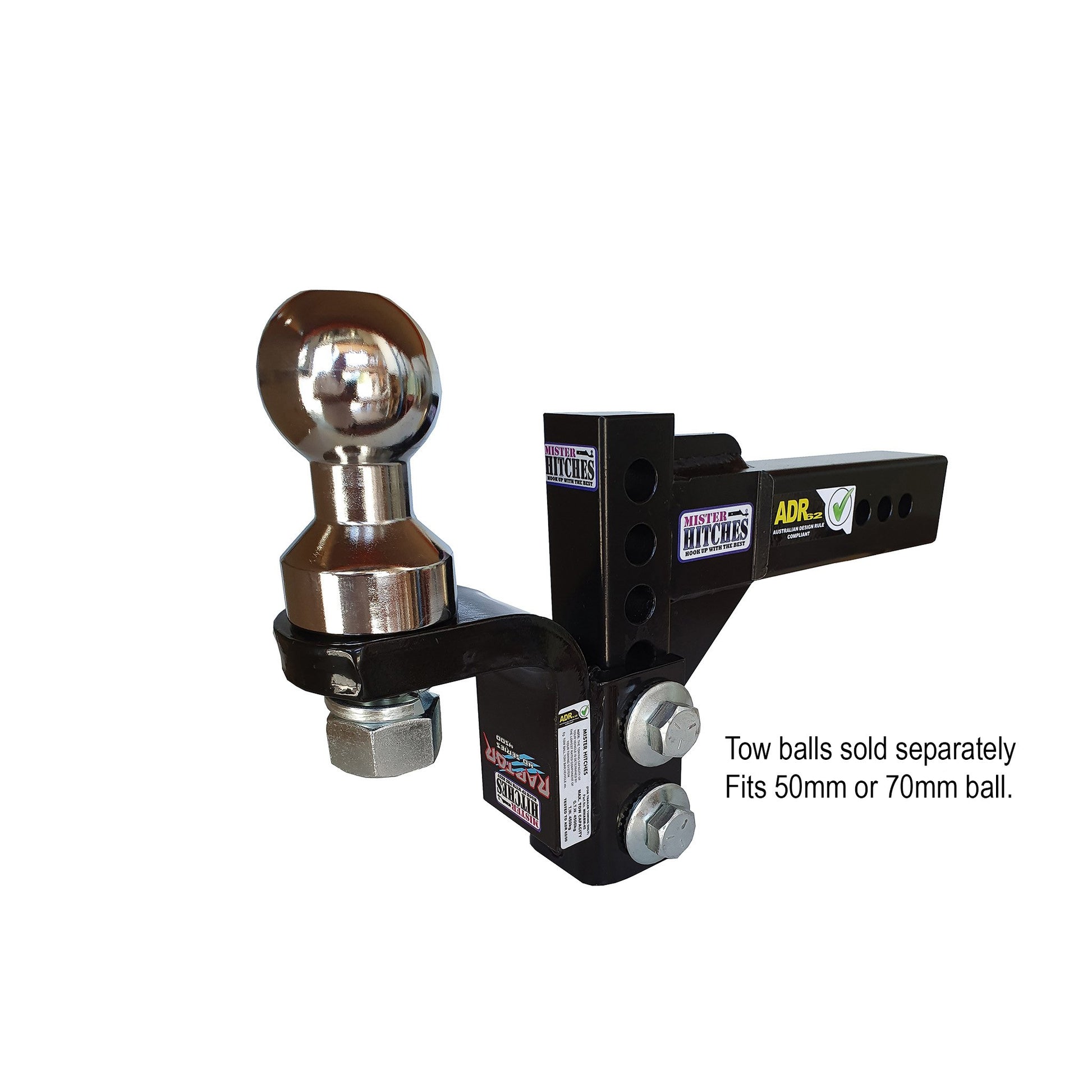

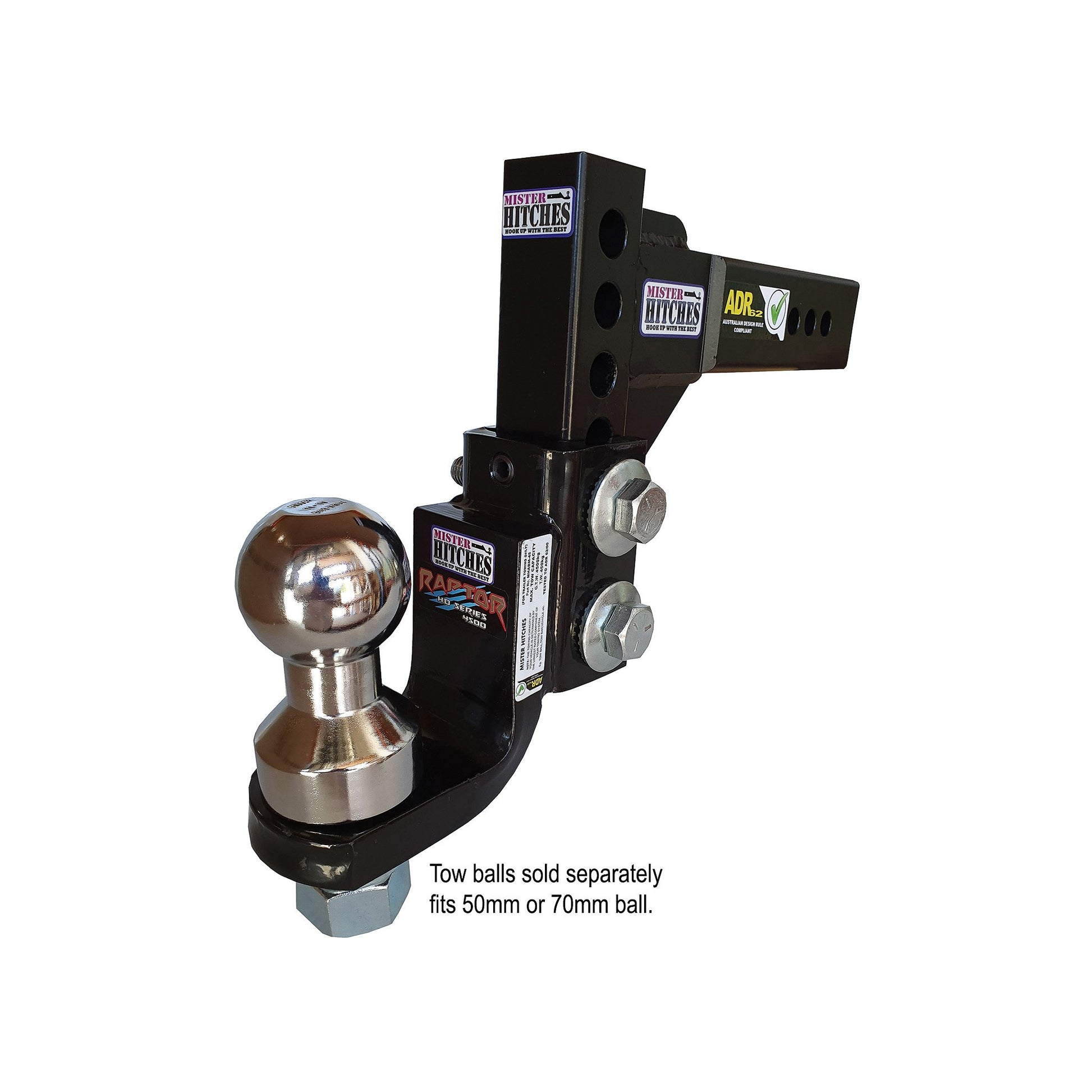

  • Reducing bush included - can be used with a 50mm or 70mm ball
  • tested to ADR62/02

Tow balls sold separately.
Ion Forged Hitch MHFBM252 and MHFBM254 also available.

Standard hitch pin to suit.

Locking hitch pin to suit

50mm chrome tow ball to suit.

70mm chrome tow ball to suit.

Part no.: MHABM45-S25
