Drop Leg Quick Release 420mm with 130mm Lift

Name: Drop Leg Quick Release 420mm with 130mm Lift
Brand: Trailer Spares Direct
SKU: DL1-420
Price: 84.99 AUD
Availability: InStock

$84.99

Tax included. Shipping calculated at checkout.

DL1-420

Product Information

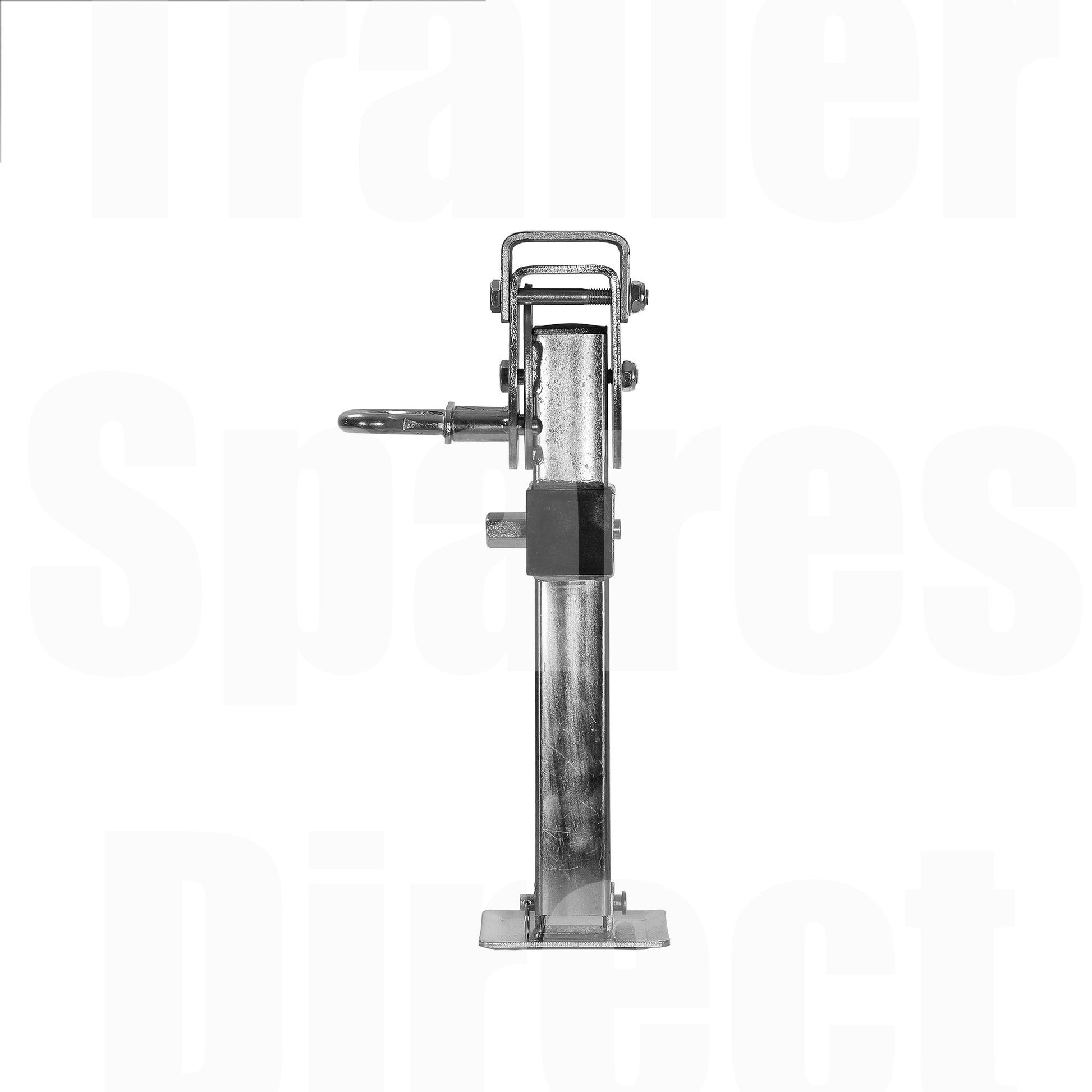

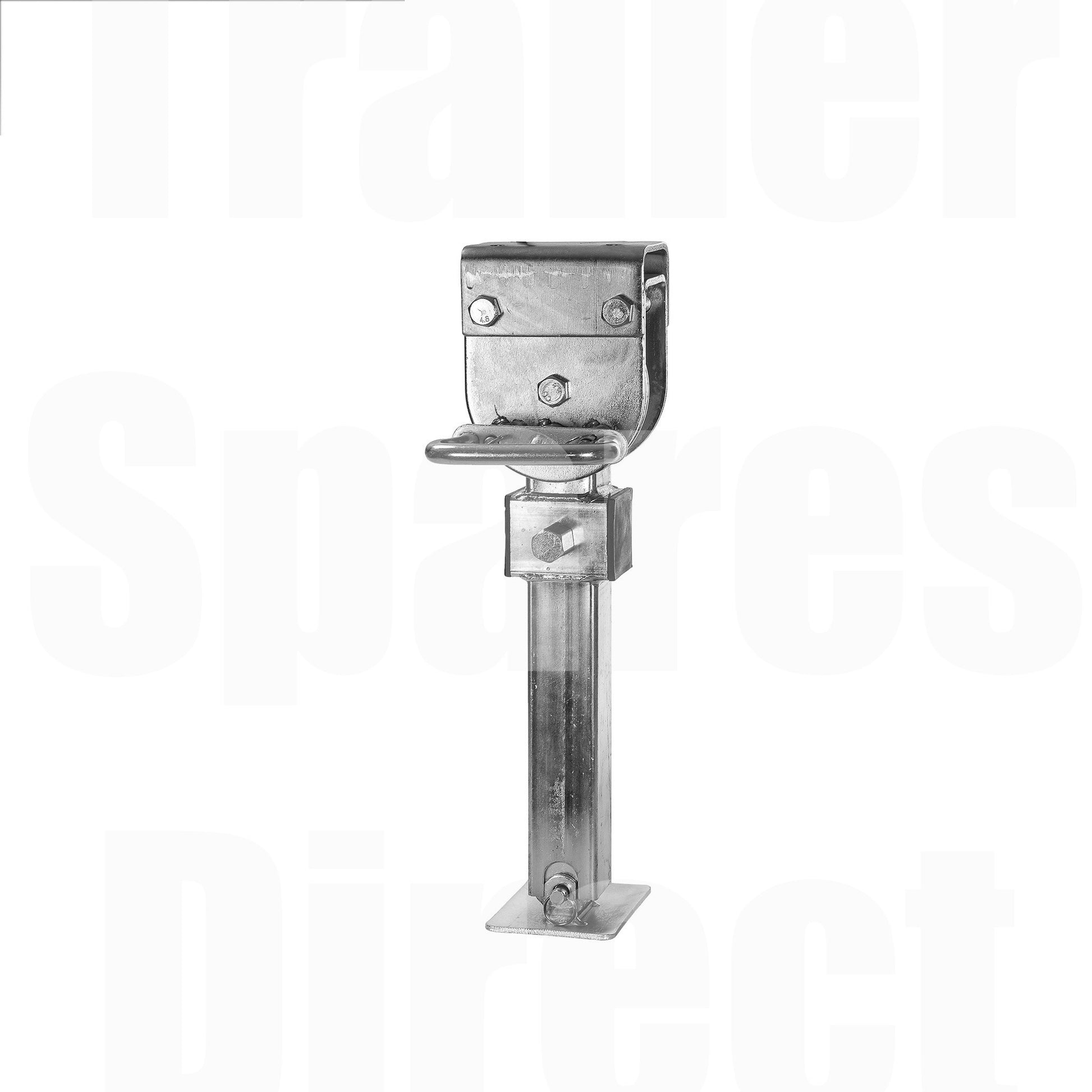

DL Series quick release drop leg 420mm for use on caravan and camper trailers as stabilising landing legs.

Features:

Pull out locking handle 180 degree multiple position adjustable.
19mm hex head gear box.

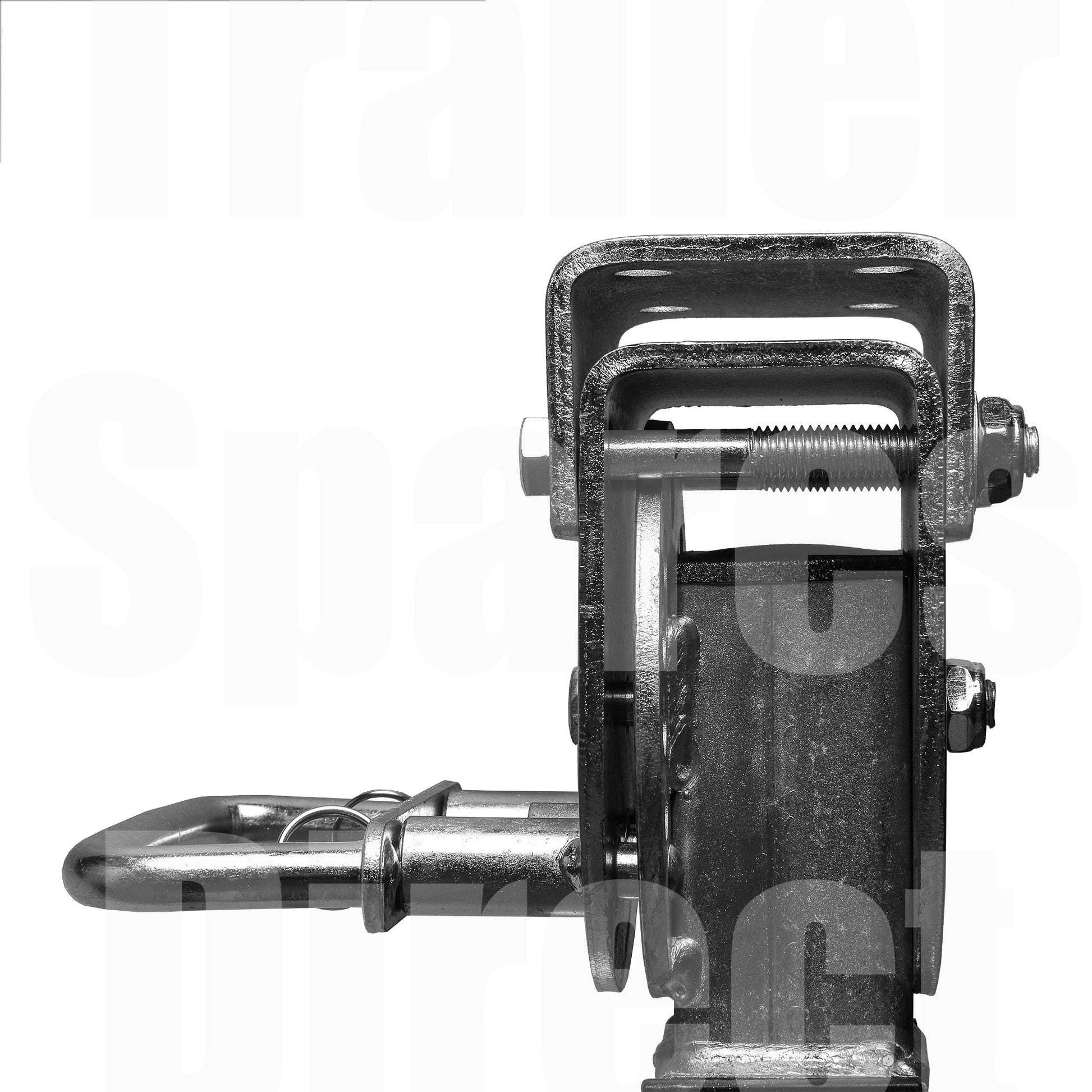

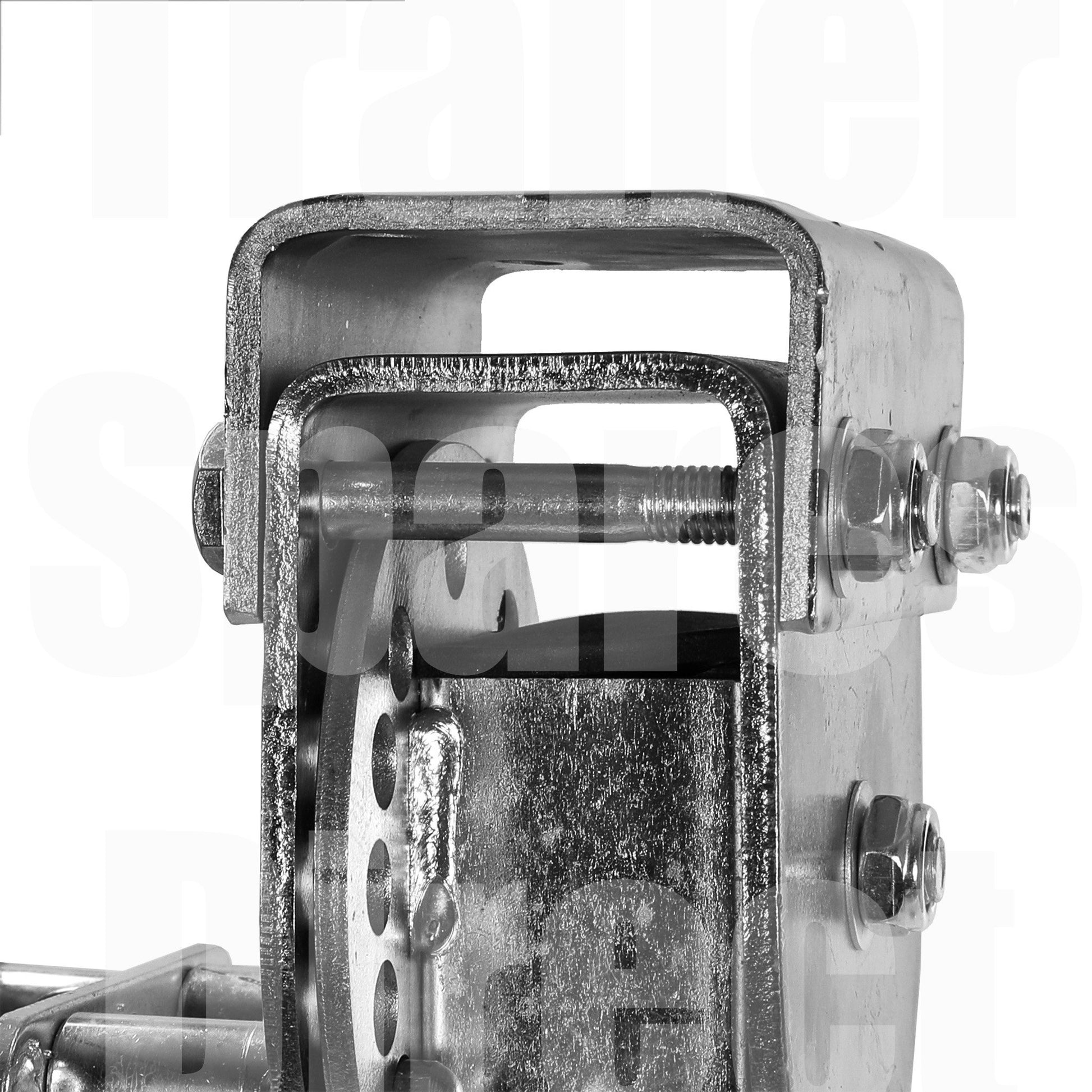

Mounting bracket that can be welded or bolted to chassis.

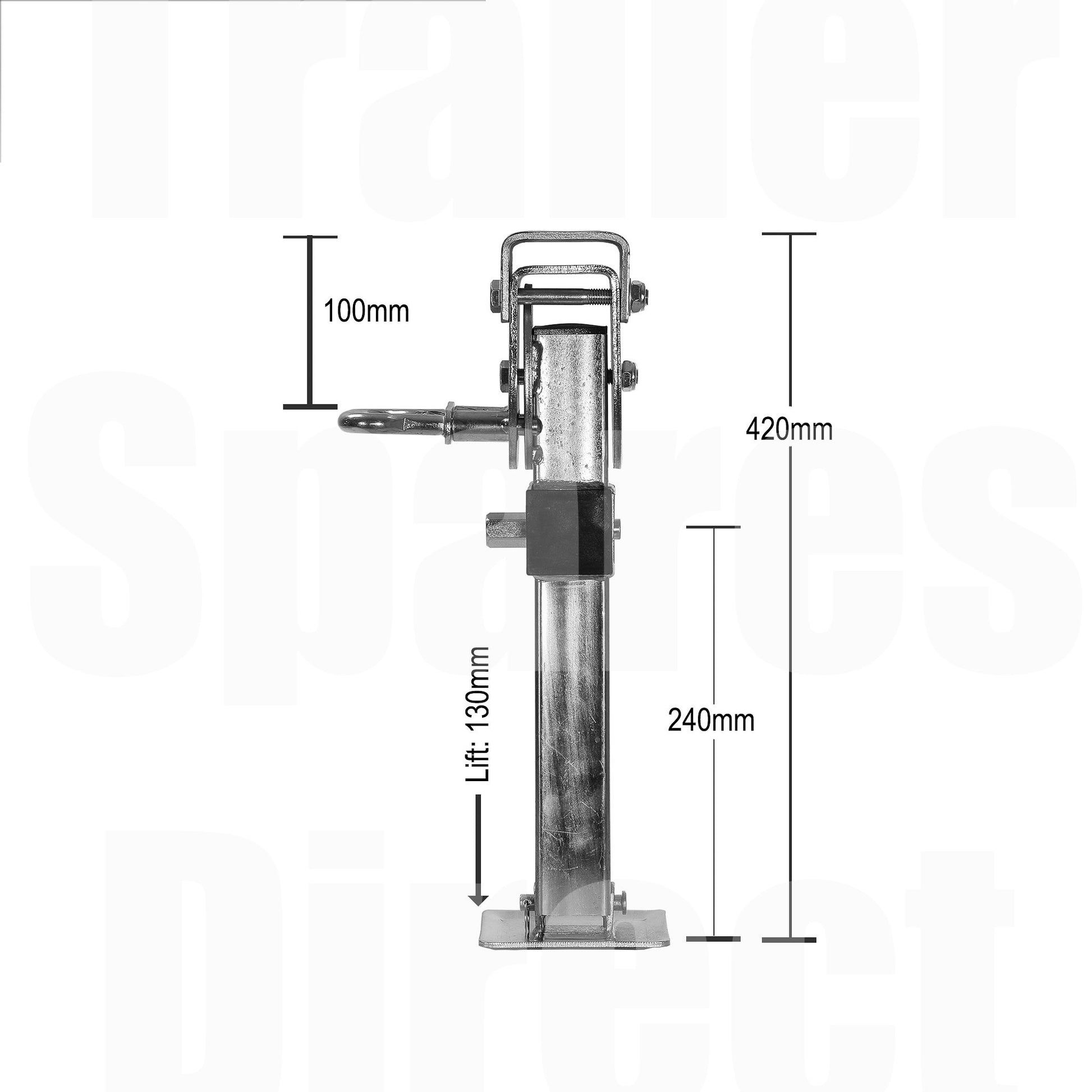

130mm of lift which will extend the total length of this unit to 550mm.
Zinc plated for extra corrosion resistance.
Metal pull out handle

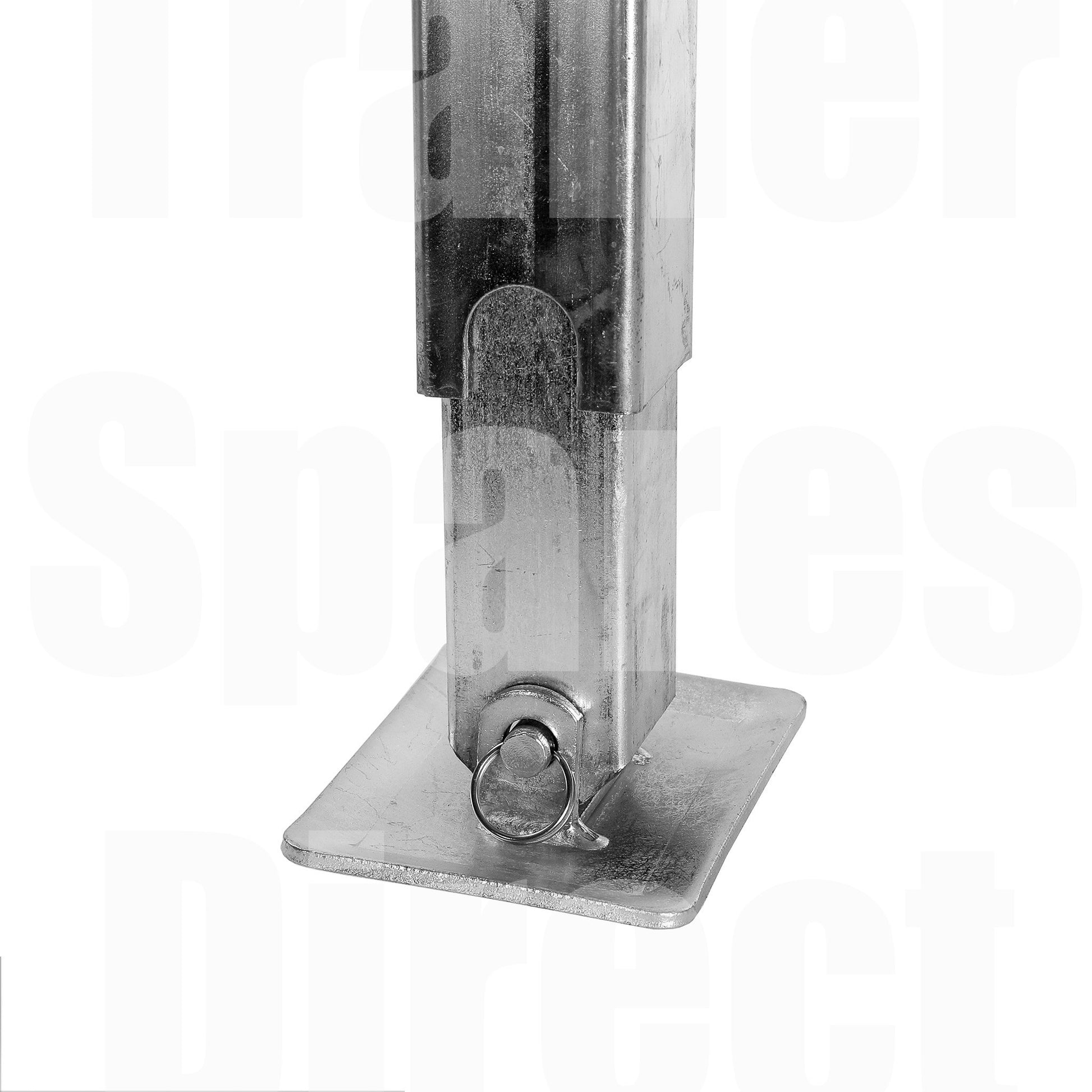

Large metal foot for a good size foot print on soft ground.
Durable unit

No plastic handle or foot plate which is easy to break or deteriorate with UV. Spare parts are also available.

19mm hex head handle sold separately.

DL series drop legs also available in 470mm height with 180mm lift and 520mm height with 230mm lift

Specifications

Adjustable Handle: Pull-out locking handle with 180° multi-position adjustment for precise leveling.
Gearbox: 19 mm hex head gearbox for smooth and reliable operation.
Mounting: Heavy-duty bracket can be welded or bolted directly to the chassis.
Lift Range: 130 mm of lift, extending the total leg length to 550 mm.
Finish: Zinc-plated for enhanced corrosion resistance.
Handle: Sturdy metal pull-out handle for secure operation.
Footprint: Large metal foot provides stability on soft or uneven ground.
Durability: Built to withstand repeated use in demanding trailer applications.
