DO45 Plus (With Handbrake)

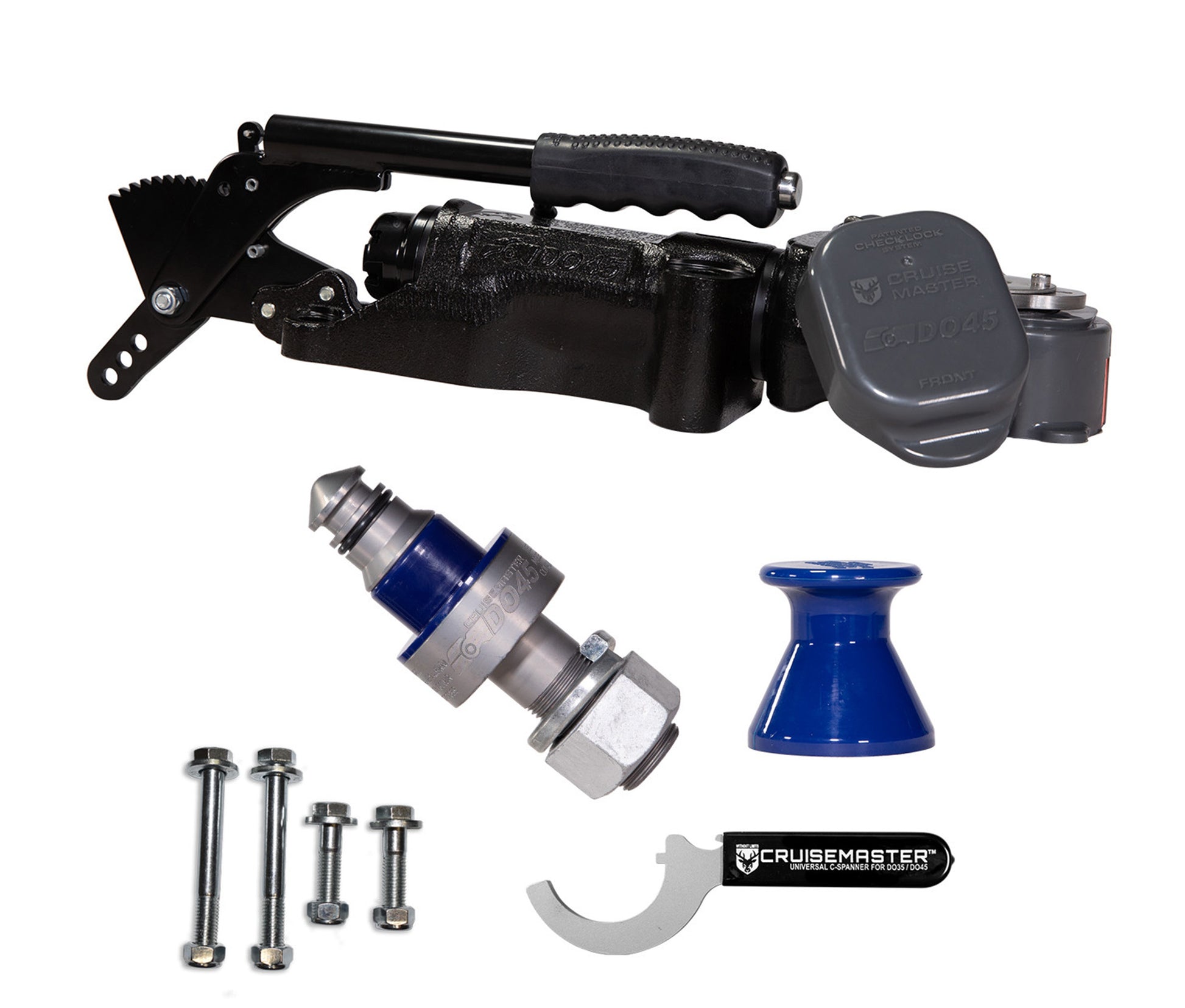

Item Includes:

• DO45 Plus (with Handbrake)

• Tow Pin 1 1/4" Shaft

• Tow Pin Cover

• Universal C-Spanner

• Fitment Bolts

• User Guide

Plus Series Exclusive Features:

• Patented “Checklock” Gen.2 Dust Cap & Bumper for a secure, easy seal

• Improved bumper with reflective reversing strip for easy alignment

• Rear support webbing allows upside-down mounting on the underside of the drawbar

Key Features:

• D-Value & V-Value ADR Compliant

• 2-stage ADR-compliant locking mechanism with automatic secondary lock

• Low-profile bumper & cap for maximum clearance

• High articulation for off-road and rough terrain handling

• Compatible with Weight Distribution Systems (where applicable)

• Forged yoke and rear nut for added strength

• One-piece lightweight cast housing

• Superior corrosion protection with Zn-Ni and E-coat coating

• Greaseable bushes for easy maintenance and quiet towing

• No tow ball height restrictions

• R.A.T tested and proven

Technical Specifications:

• Articulation: 360° axial, minimum 70° other axes

• Bolt Pattern: 4 bolts at 185mm x 76mm (Front) x 54mm (Rear)

• Rating: 4.5 Tonne

• Action: Drop-On

• Maintenance: Fully greasable

The DO45 Plus is built for heavy-duty towing, giving you confidence, control, and durability — whether on-road or off the beaten track.
