Disc Hub 12 inch 3/4 Ventilated Dacromet 6 Stud US2.3 Japan Bearing

Disc Hub 12 inch 3/4 Ventilated Dacromet 6 Stud US2.3 Japan Bearing

$259.99
$259.99
Tax included. Shipping calculated at checkout.

DH34LCUS2.3

Product Information

LoadForce ventilated trailer disc brake hub 12 inch x 3/4 inch 6 stud USA 2.3t bearing. Supplied with quality Japanese bearings and Australian made hub seal. The hub is dacromet coated which is ideal for marine applications.

6 stud measurements: Stud diameter: 1/2 inch. PCD (Pitch circle diameter): 139.7mm (5.5inches). Stud distance: 70mm. Bearing: US 2.3t: Inner L67048/10 ; Outer 25580/20

Diameter 300mm
Hat height 67mm
Spigot diameter 85mm

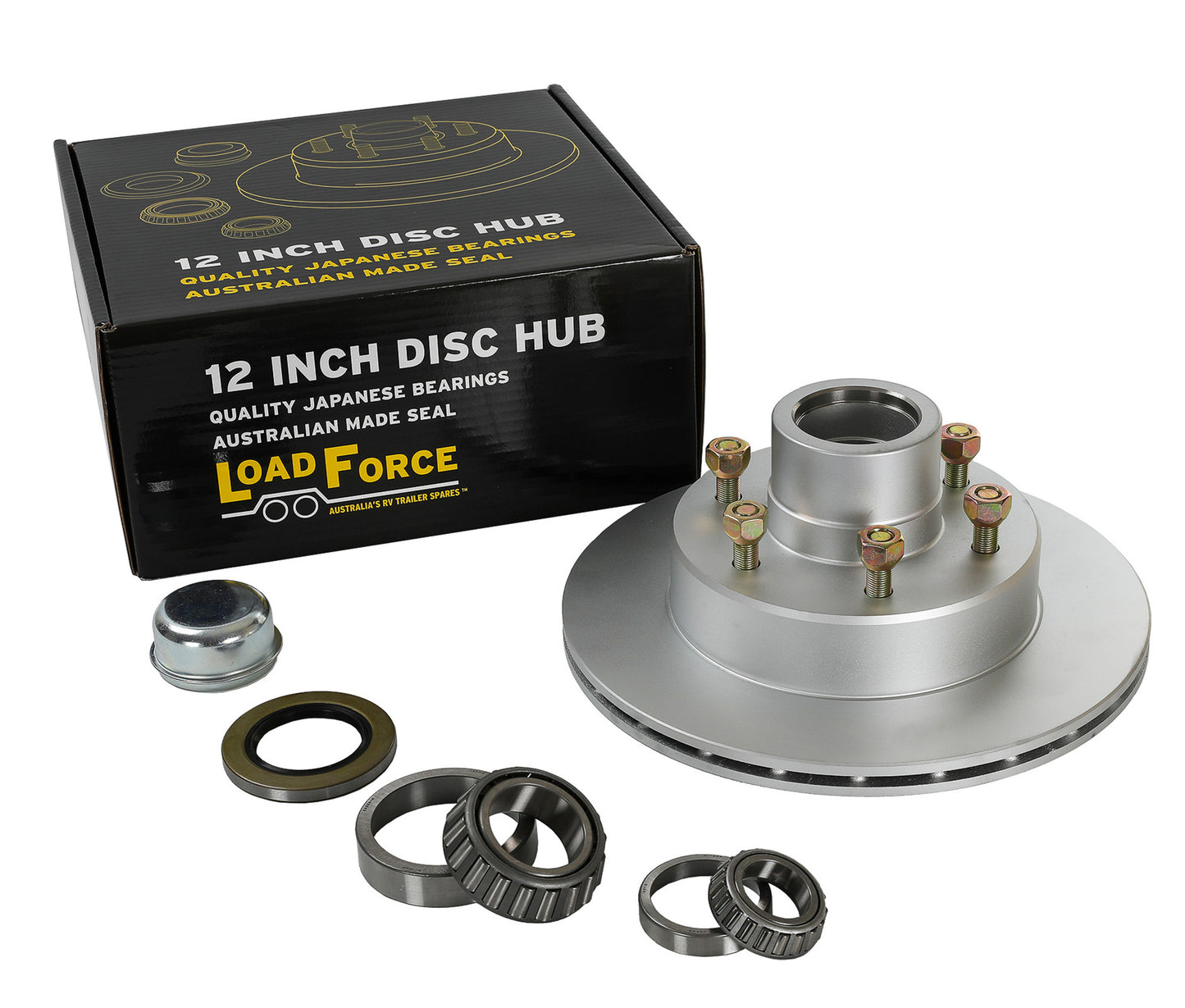

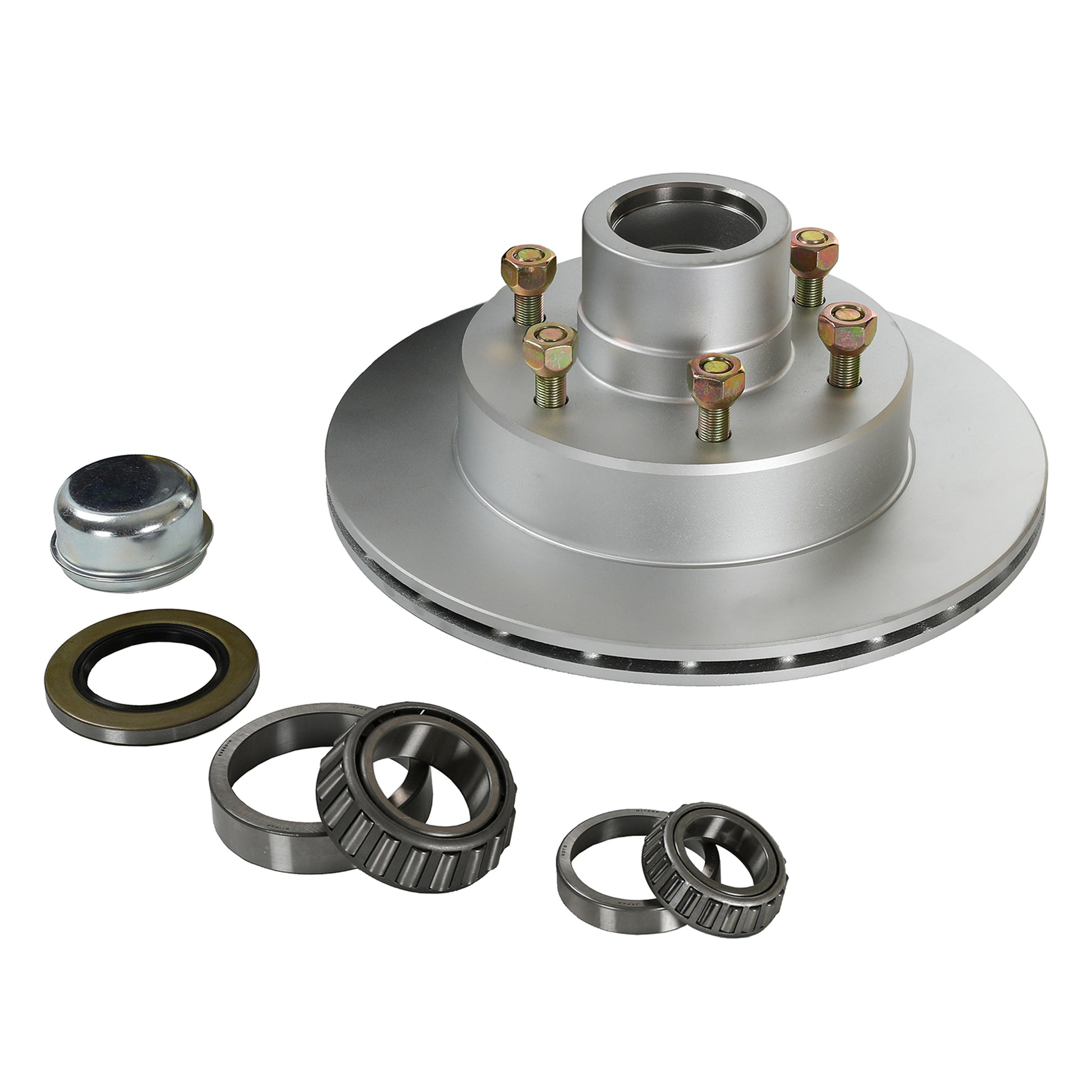

All disc hub assemblies come boxed complete with bearings, seal, dust cap, stud and nuts.

Specifications

  • Specifications:
  • Disc Diameter: 300mm (12")
  • Disc Thickness: 19mm (3/4")
  • Hat Height: 67mm
  • Spigot Diameter: 85mm
  • Stud Pattern: Landcruiser 6 Stud (1/2" Stud Diameter)
  • PCD: 139.7mm
  • Stud Distance: 70mm
  • Koyo Japanese Bearings: USA 2.3T - 25580/20 & L67048/10 bearings and cones
  • High quality seal
  • Dust cap
  • Fitted studs & nuts
  • Finish: Dacromet Coated for Corrosion Resistance
