LoadForce

Disc Hub 12 inch 3/4 Ventilated Dacromet 6 Stud US2.5 Bearing

Disc Hub 12 inch 3/4 Ventilated Dacromet 6 Stud US2.5 Bearing

$270.00
$270.00
Tax included. Shipping calculated at checkout.

DH34LCUS2.5

Product Information

LoadForce ventilated trailer disc brake hub 12 inch x 3/4 inch 6 stud USA 2.5t bearing. Supplied with quality Japanese bearings and Australian made hub seal. The hub is dacromet coated which is ideal for marine applications.

  • Diameter of rotor 308mm.
  • Hat height 65mm.
  • Spigot diameter 89mm.
  • 6 stud measurements: Stud diameter: 1/2 inch.
  • PCD (Pitch circle diameter): 139.7mm (5.5inches).
  • Stud distance: 70mm.
  • Bearing: US 2.5t: Inner 15123/245 ; Outer 25580/20

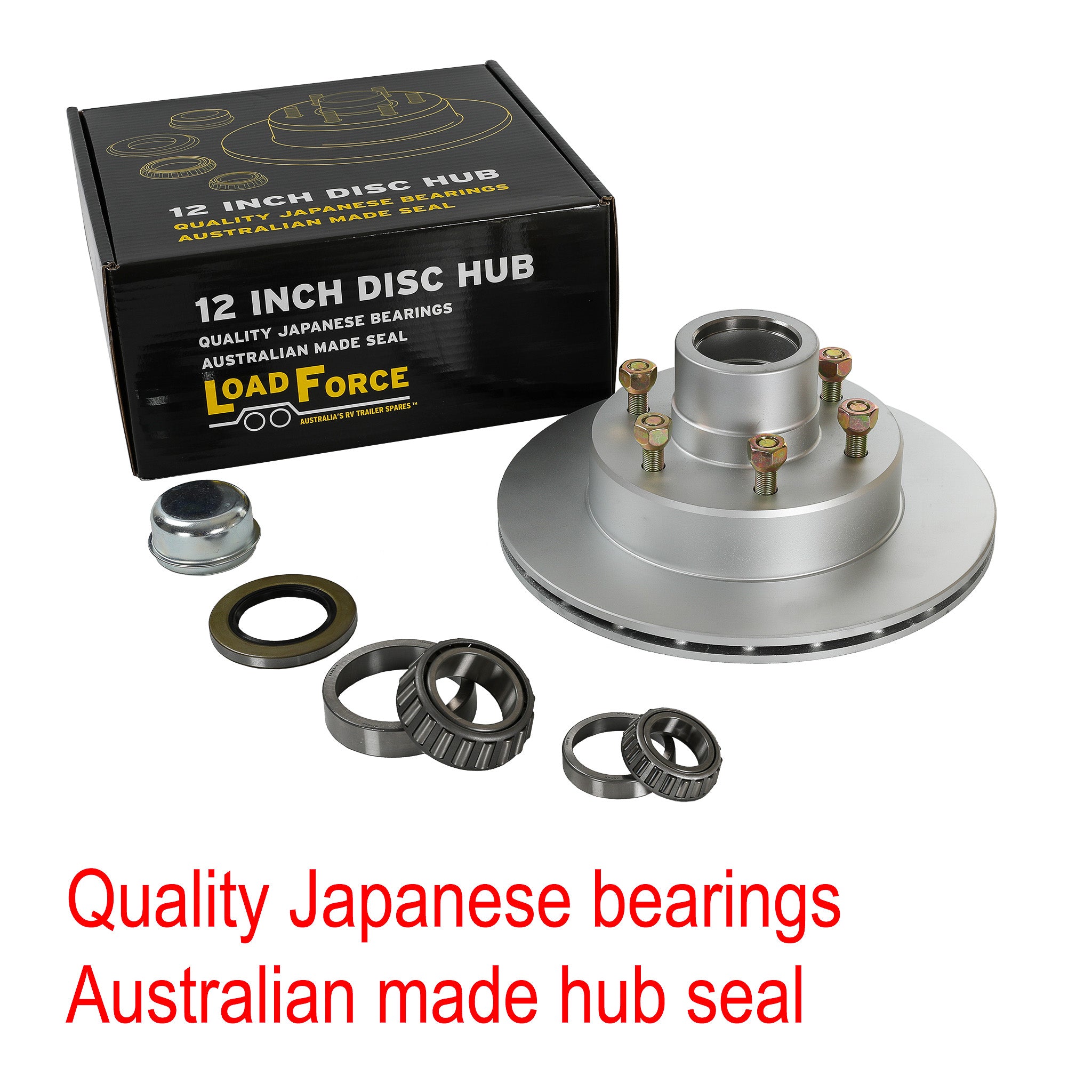

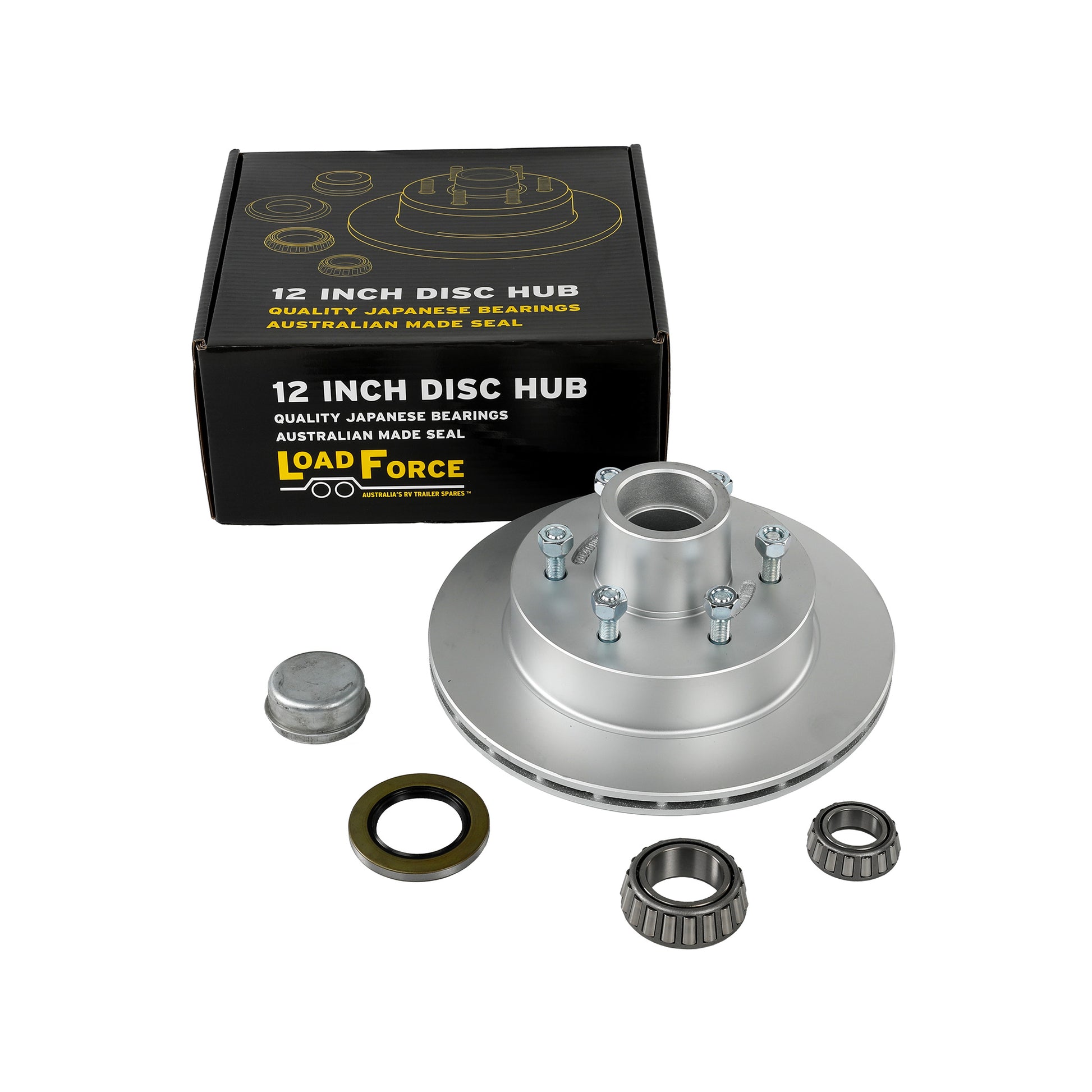

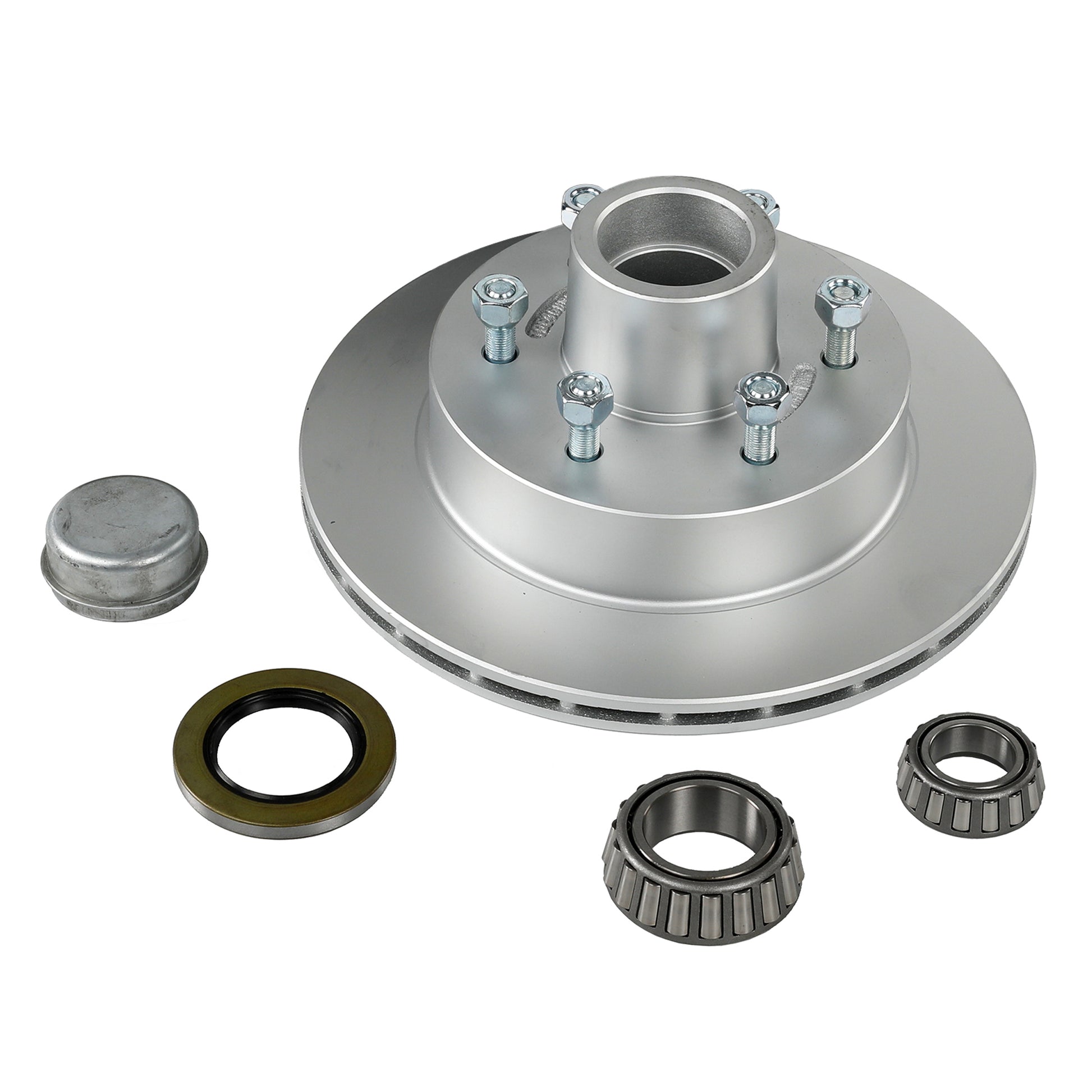

All disc hub assemblies come boxed complete with bearings, seal, dust cap, stud and nuts.

Replacement for Tie Down 12 inch disc hub. TieDown P.N.46895

Specifications

  • Specifications:
  • Disc Diameter: 300mm (12")
  • Disc Thickness: 19mm (3/4")
  • Hat Height: 67mm
  • Spigot Diameter: 89mm
  • Stud Pattern: Landcruiser 6 Stud (1/2" Stud Diameter)
  • PCD: 139.7mm
  • Stud Distance: 70mm
  • Koyo Japanese Bearings: USA 2.5T - 25580/20 & 15123/245 bearings and cones
  • High quality seal
  • Dust cap
  • Fitted studs & nuts
  • Finish: Dacromet Coated for Corrosion Resistance
