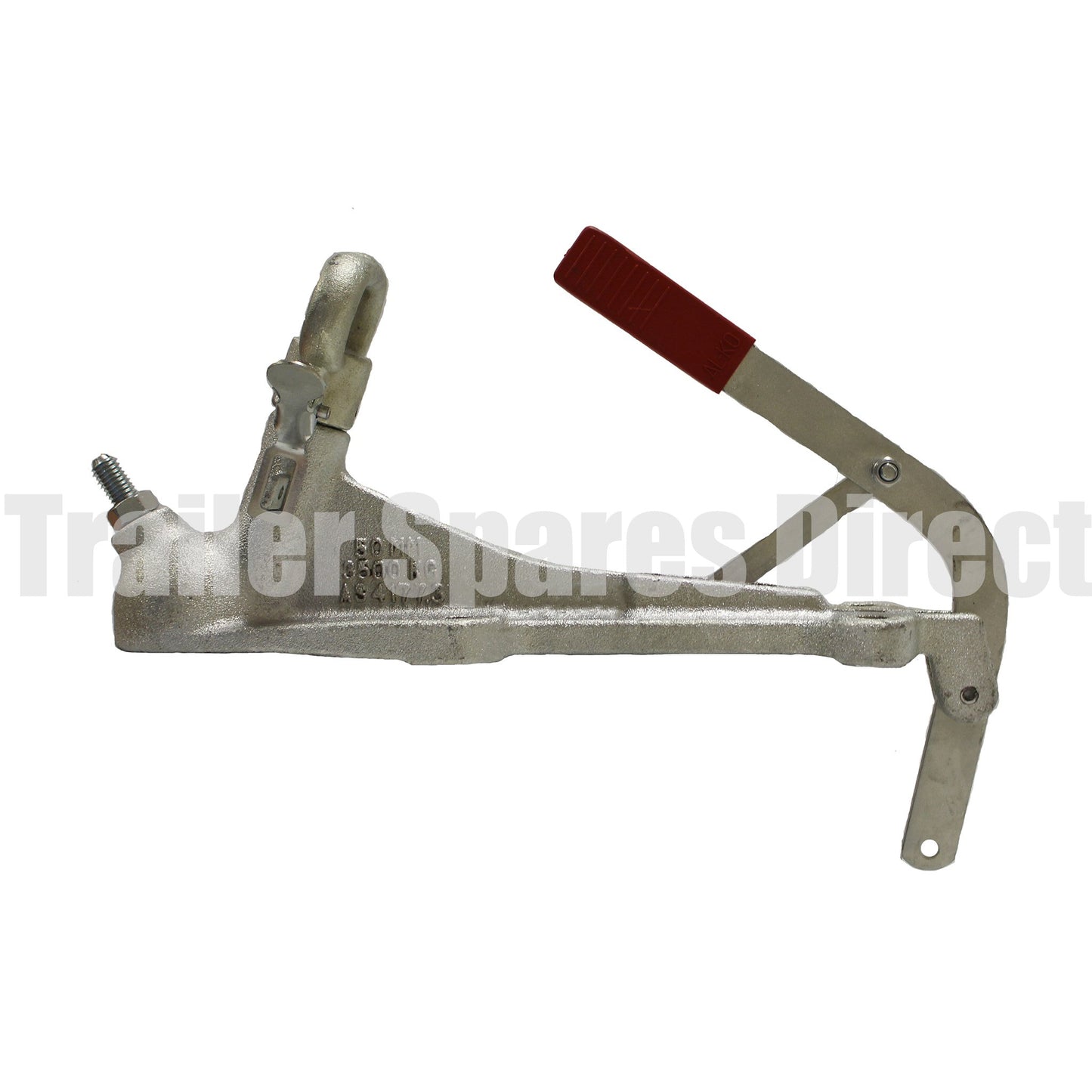

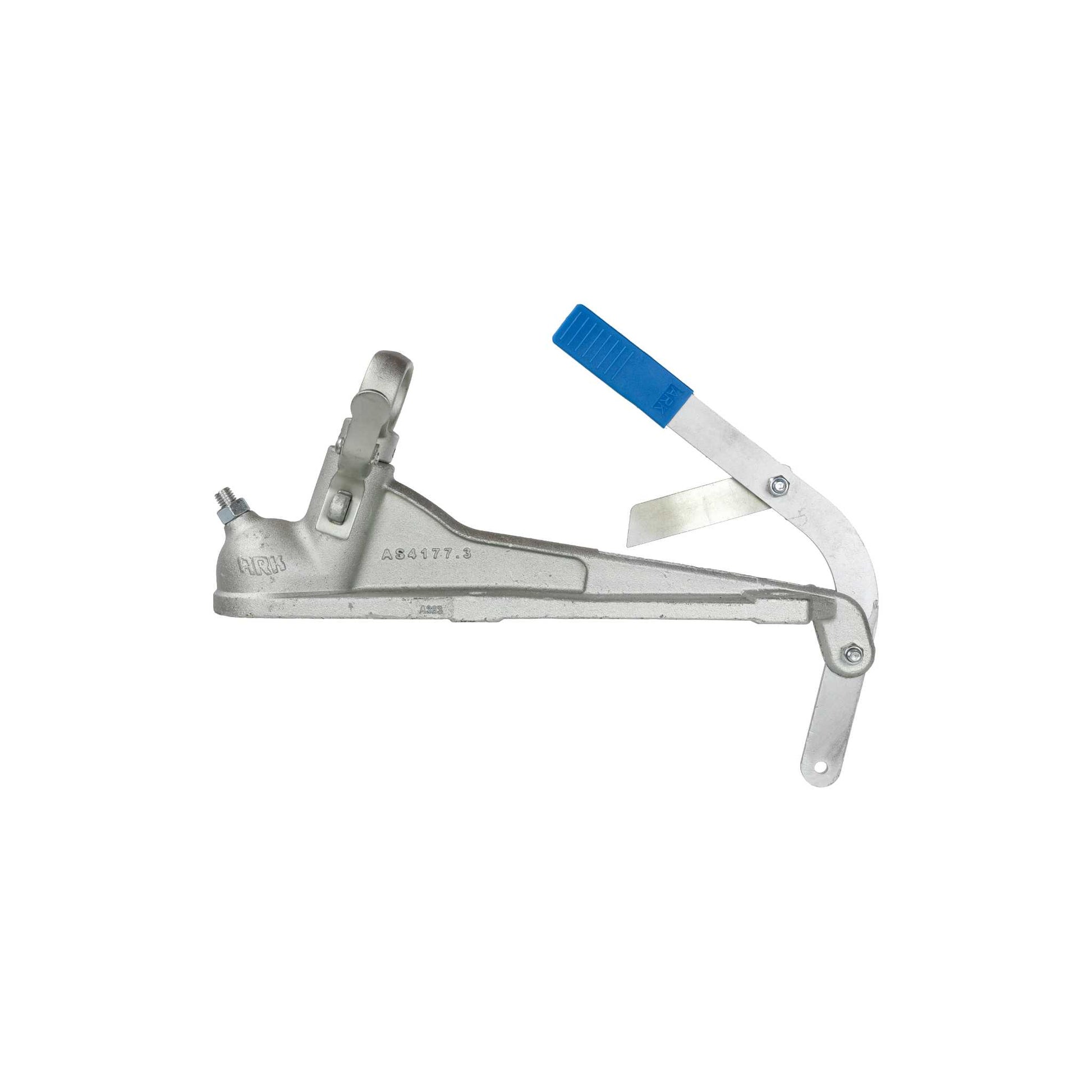

50mm coupling rating 3500kg with electric handbrake lever - 4 bolt holes - zinc

50mm coupling with 4 bolt holes and electric handbrake lever. For trailers and caravans up to a rating of 3500kg (3.5 tonne). Complies with AS4177

Zinc plated finish with anti-rattle head adjustment screw and padlock compatibility.

Anti-swing ratchet on a contoured handbrake lever.

* Unfortunately the version without the handbrake is no longer available.

Mounting hole spacing and diameter 184mm x 54mm x 12.7mm (1/2 inch)

Coupling base plate & coupling bolts can be found here.

Component type approval numbers:

ARK brand CTA-060743

Al-Ko brand CTA-060191
