Adjustable Towbar Receiver Mount Short Shank 4000kg

SKU: MHABM-5XHDS
Price
$247.50
GST included. Shipping calculated at checkout.
In stock and ready to ship

You may also need...

50mm tow ball chrome rated 3500kg

50mm tow ball chrome rated 3500kg

$15.95
Mister hitches tow ball chrome cover

Chrome 50 mm tow ball cover

$6.60
Hitch pin with R clip

Hitch pin with R clip 65mm-80mm

$9.90

Product Information

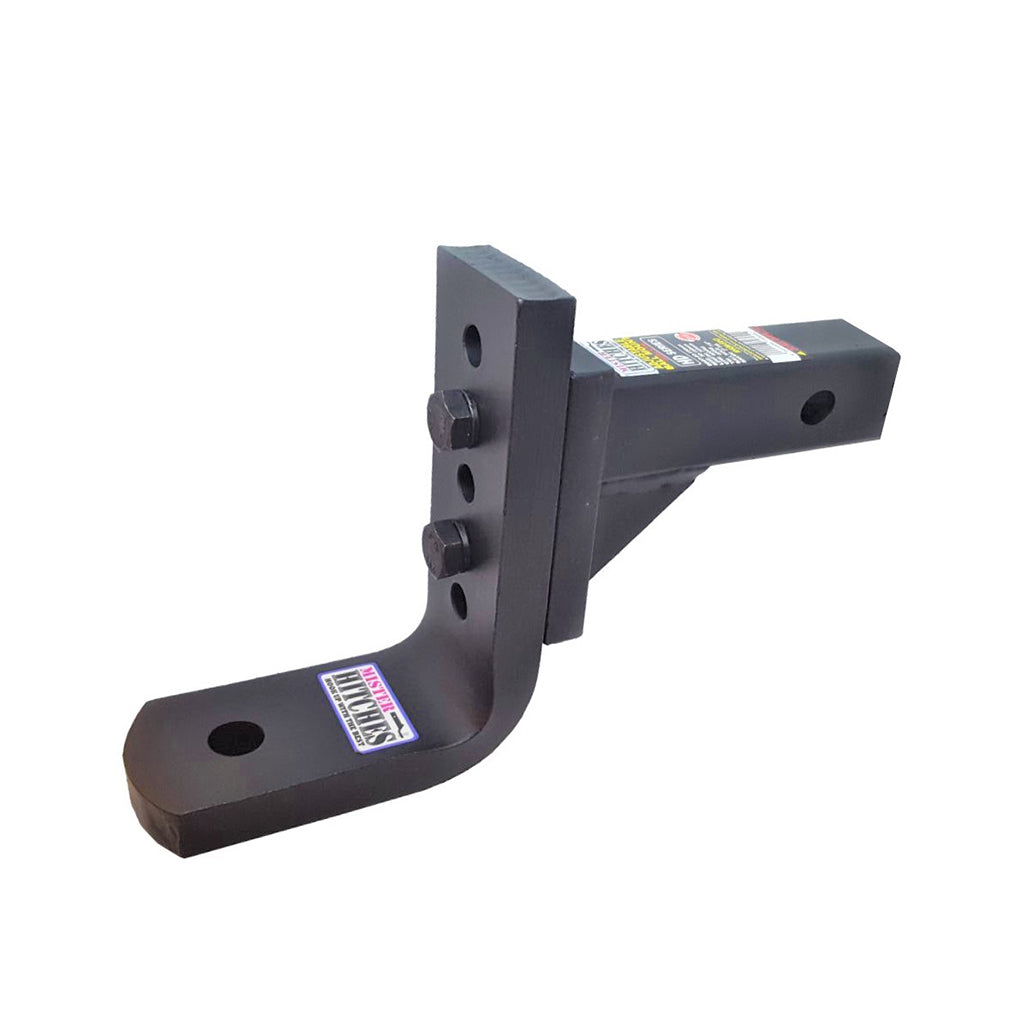

Mister Hitches 12 stage 4000kg Adjustable Ball Mount Short Shank Style.

This hitch is suitable for shorter shanked towbars like the Ford Ranger.

  • reversible giving you 12 mounting adjustments.
  • Dual 10mm gussets,
  • 5.75mm thick shank wall for strength
  • high tensile 12.9 grade mounting hardware

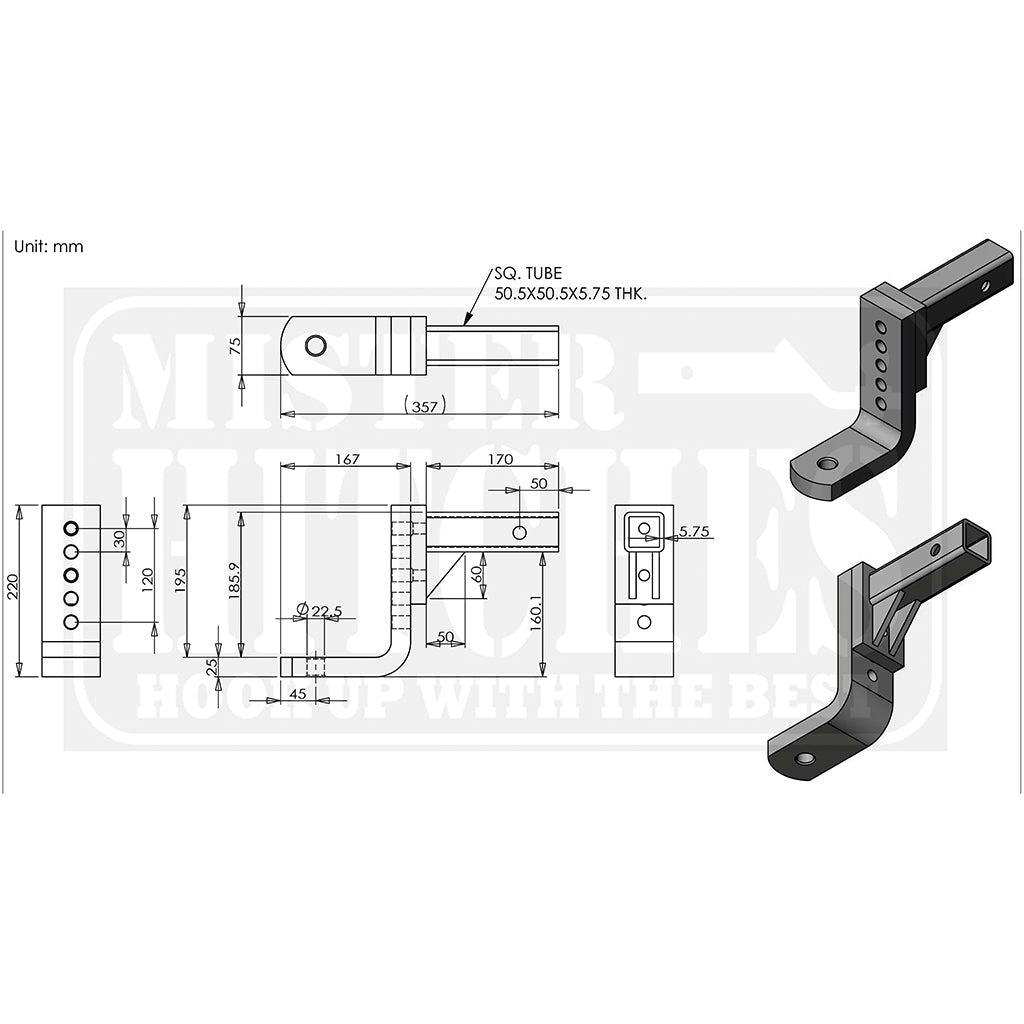

  • Ball Platform: 25mm x 75mm
  • Adjustable drop: 80mm to 186mm
  • Adjustable rise: 50mm to 160mm
  • Pin hole to Gusset 70mm
  • GTW: 4000kg. TW: 400kg

Shank length 170mm Tongue length 167mm

Do Not Overload.
