hub drum 9 x 1.75 inch Commodore 5 stud with slimline (Ford) bearing

hub drum 9 x 1.75 inch Commodore 5 stud with slimline (Ford) bearing

$91.99
$91.99
Tax included. Shipping calculated at checkout.

HD9X134CDF

Product Information

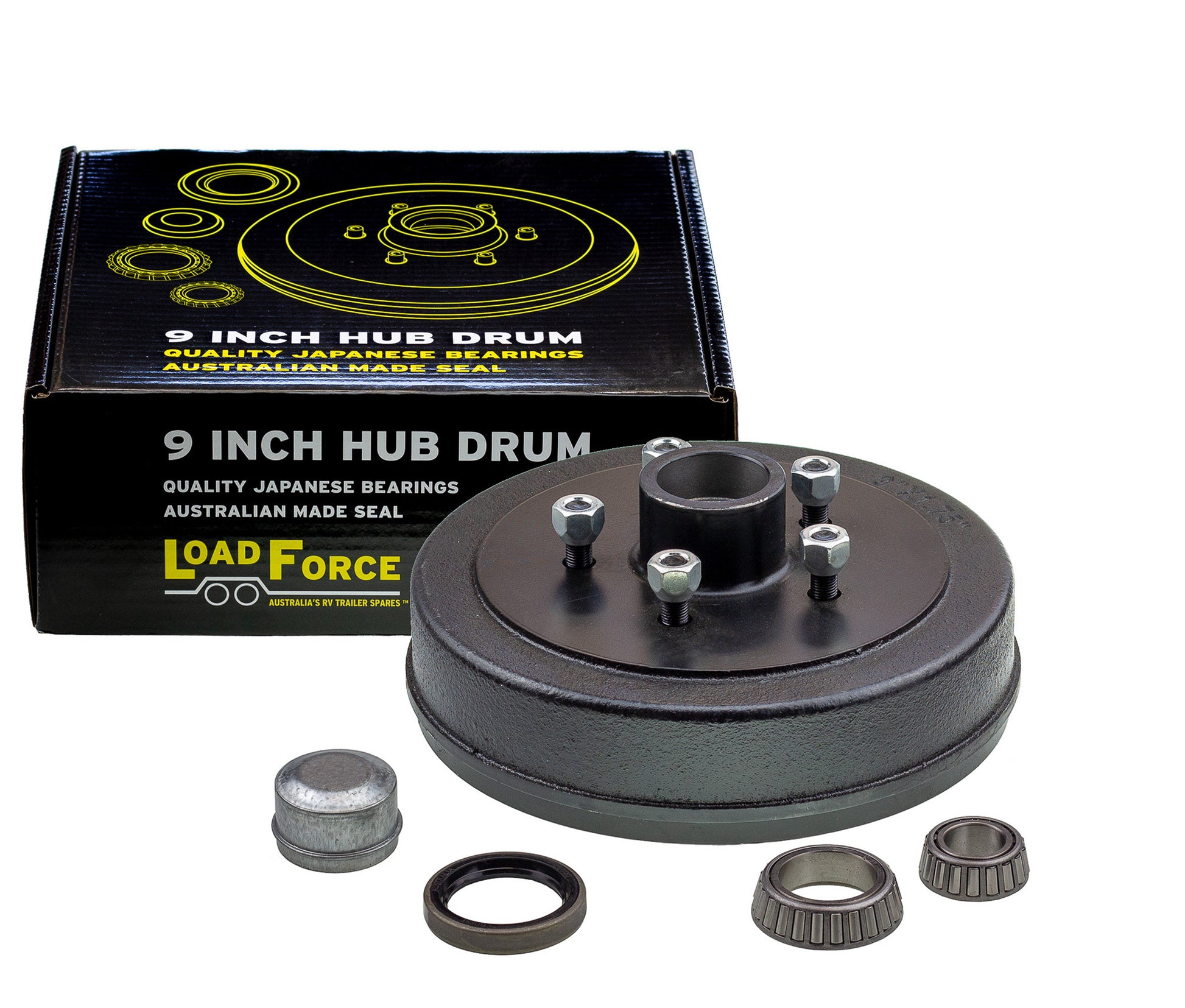

LoadForce hub brake drum 9-inch x 1.75 inch Commodore 5 stud with slimline bearing. Supplied with quality Japanese bearings and Australian made hub seal.

Stud diameter: 7/16 inches.

PCD (Pitch circle diameter): 120mm (4.7813 inches)

Stud distance: 71mm.

Bearing: Slimline / Ford: Inner LM68149/10 ; Outer LM12749/10.

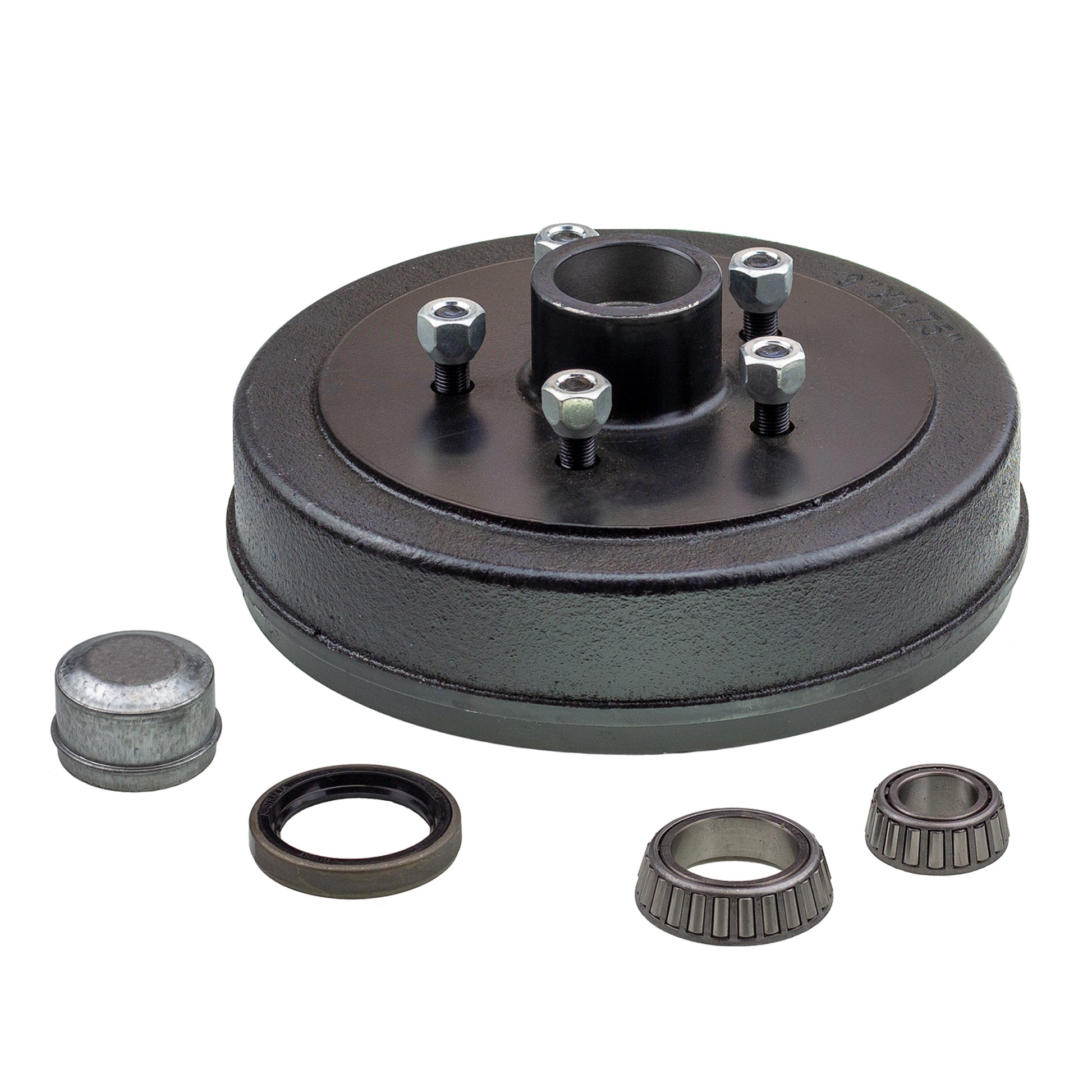

All brake drum assemblies come complete with studs, nuts, bearings, seal and dust cap.

Our 5 stud commodore with LM (Holden) bearings can be found here

Specifications

  • Specifications:
  • Drum Diameter: 228mm (9")
  • Drum Width: 1.75 inch
  • Stud Pattern: 5 Stud Commodore (7/16" Stud Diameter)
  • PCD: 120mm
  • Stud Distance: 71mm
  • Koyo Japanese Bearings: Ford SLimline - 12749/10 & 68149/10 bearings and cones
  • High quality bearing seal
  • Dust cap
  • Fitted studs & nuts
