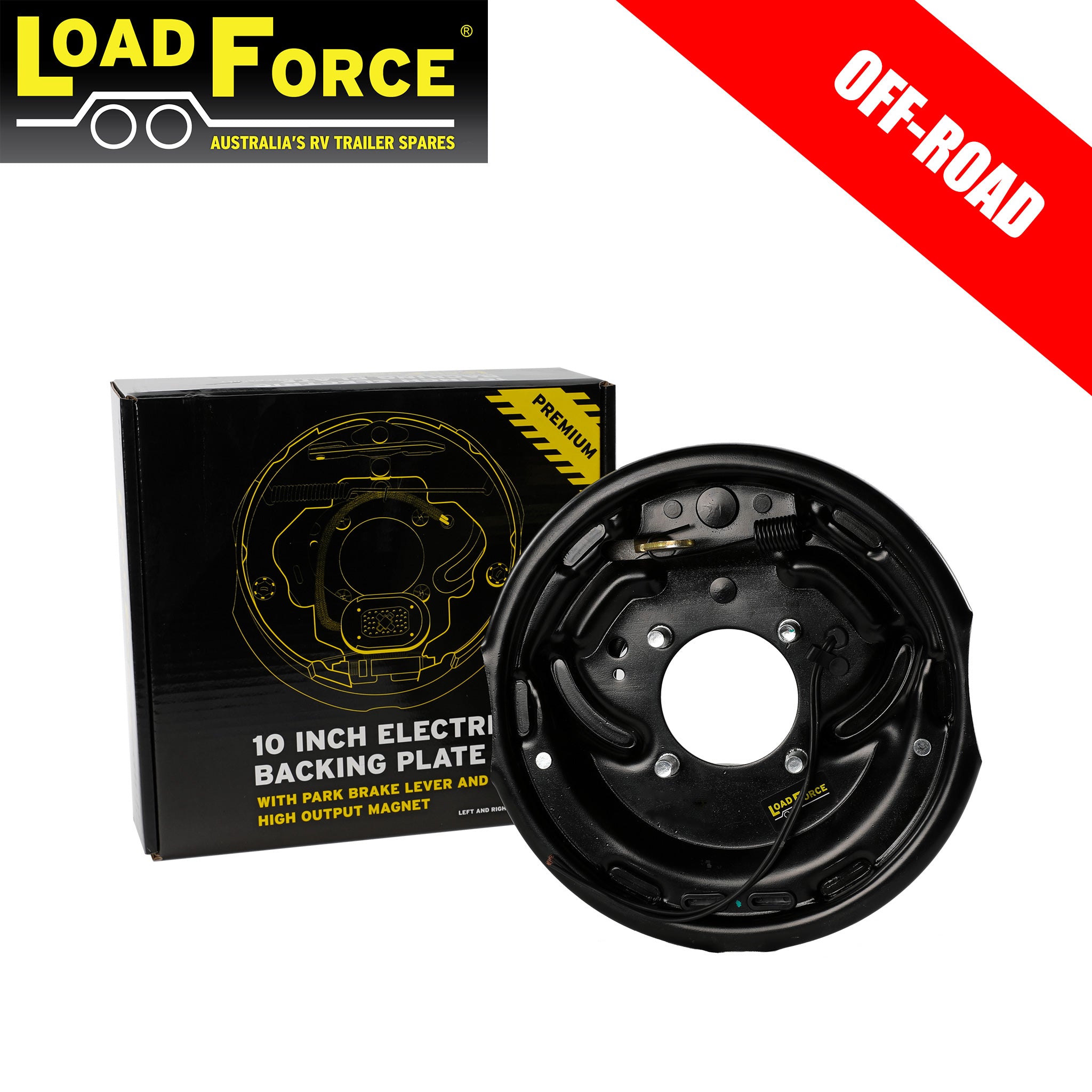

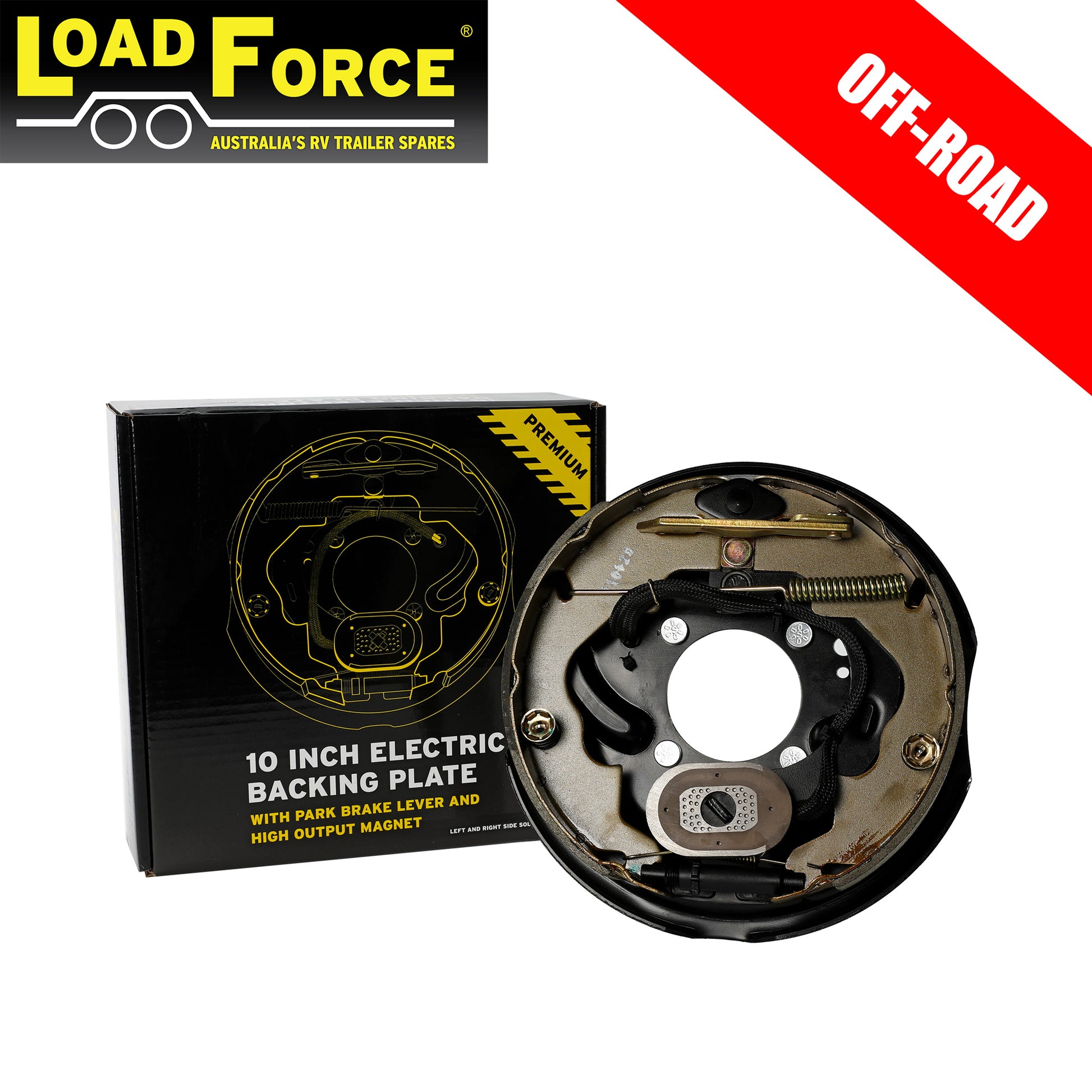

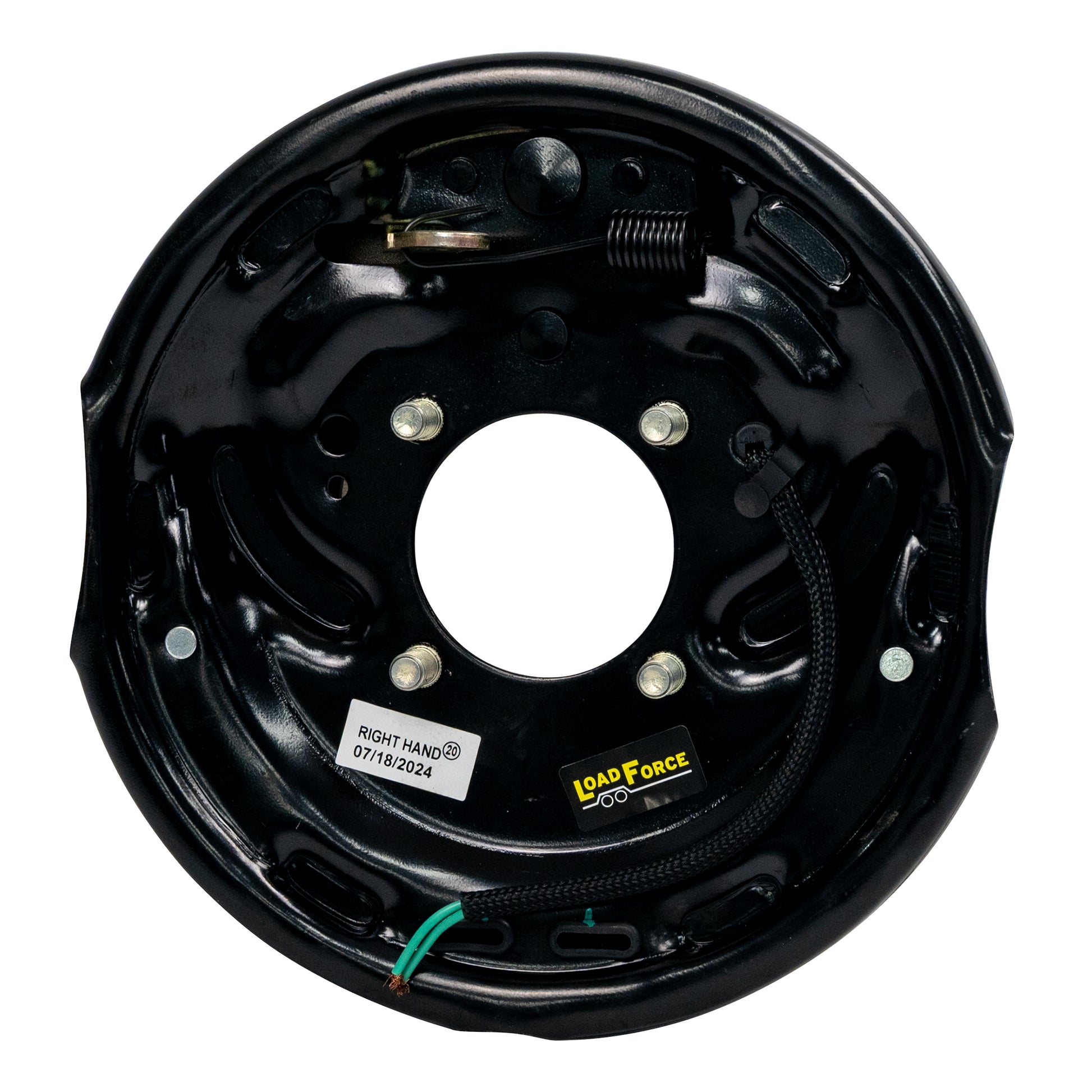

10 inch Off Road Electric Backing Plate Assembly Right Hand

LoadForce premium 10 inch Off Road electric brake backing plate assembly right hand with park brake. Electric backing plate assemblies are fitted with off road magnet. Ideal for camper trailers and off road caravans. Left and right-hand side specific on trailers and caravans due to the direction of the park brake lever

The LoadForce backing plates are Australian design some times referred to as AL-KO type and are interchangeable with most other 10x2.25 inch backing plates such as AL-KO and American style backing plates such as Dexter.

Four 7/16 inch nyloc nuts are required to fit this to the weld on mounting plate.

Full range of serviceable backing plate spare parts are available for this product.

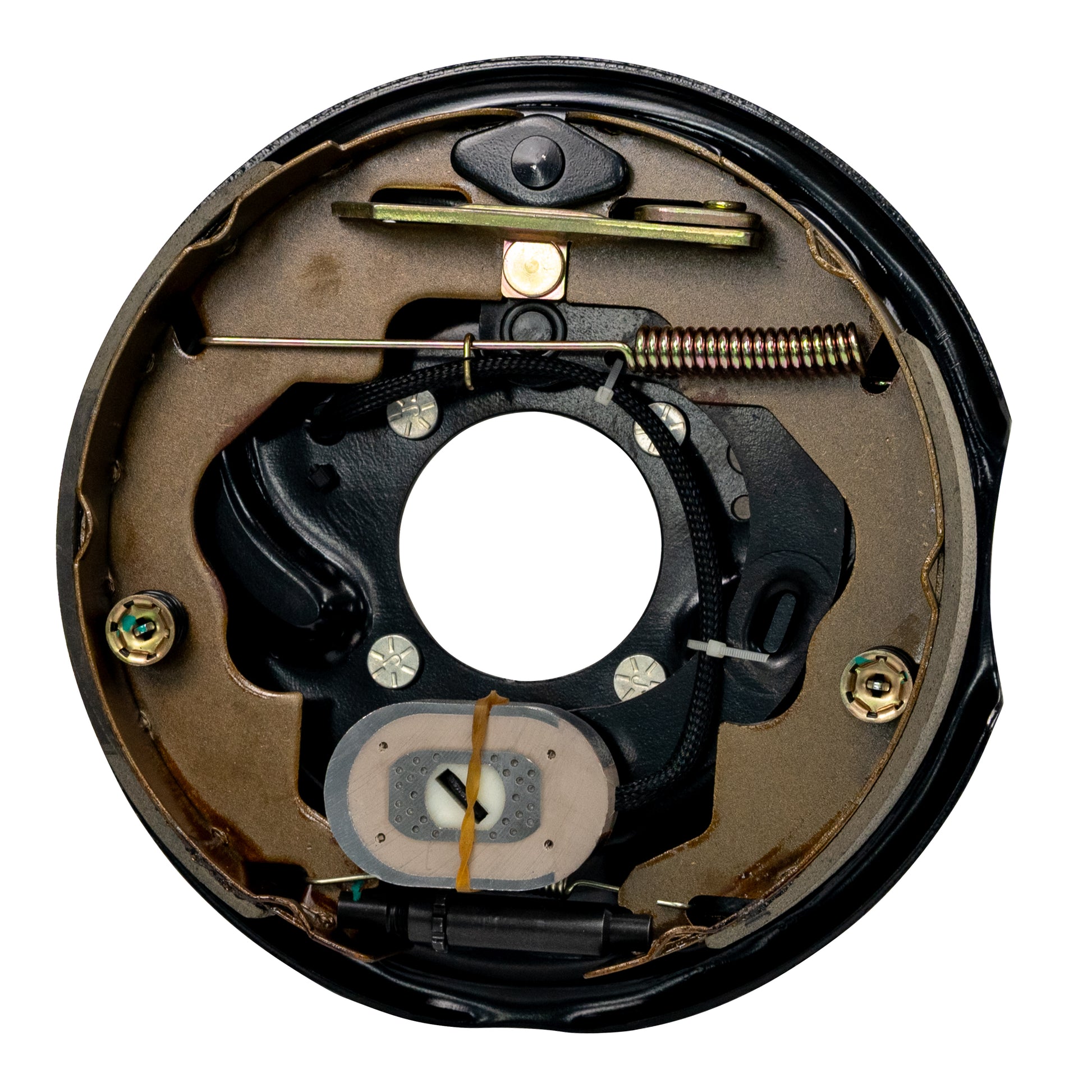

Wear depth indicators are small holes located around the front face of the electric magnet. When they are not visible, the magnet has reached the end of its service life. Replacement right hand off road magnets for this assembly are also available.
