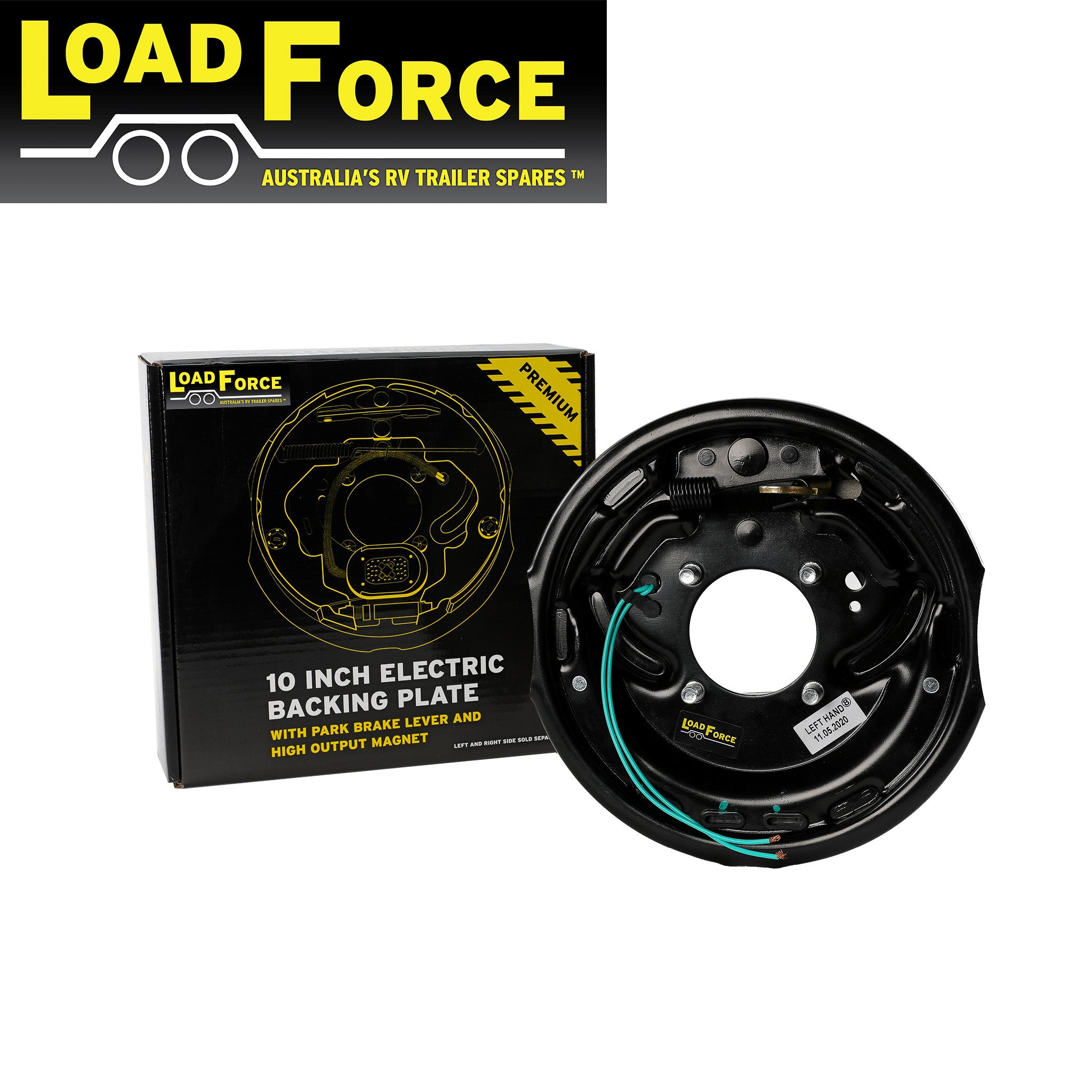

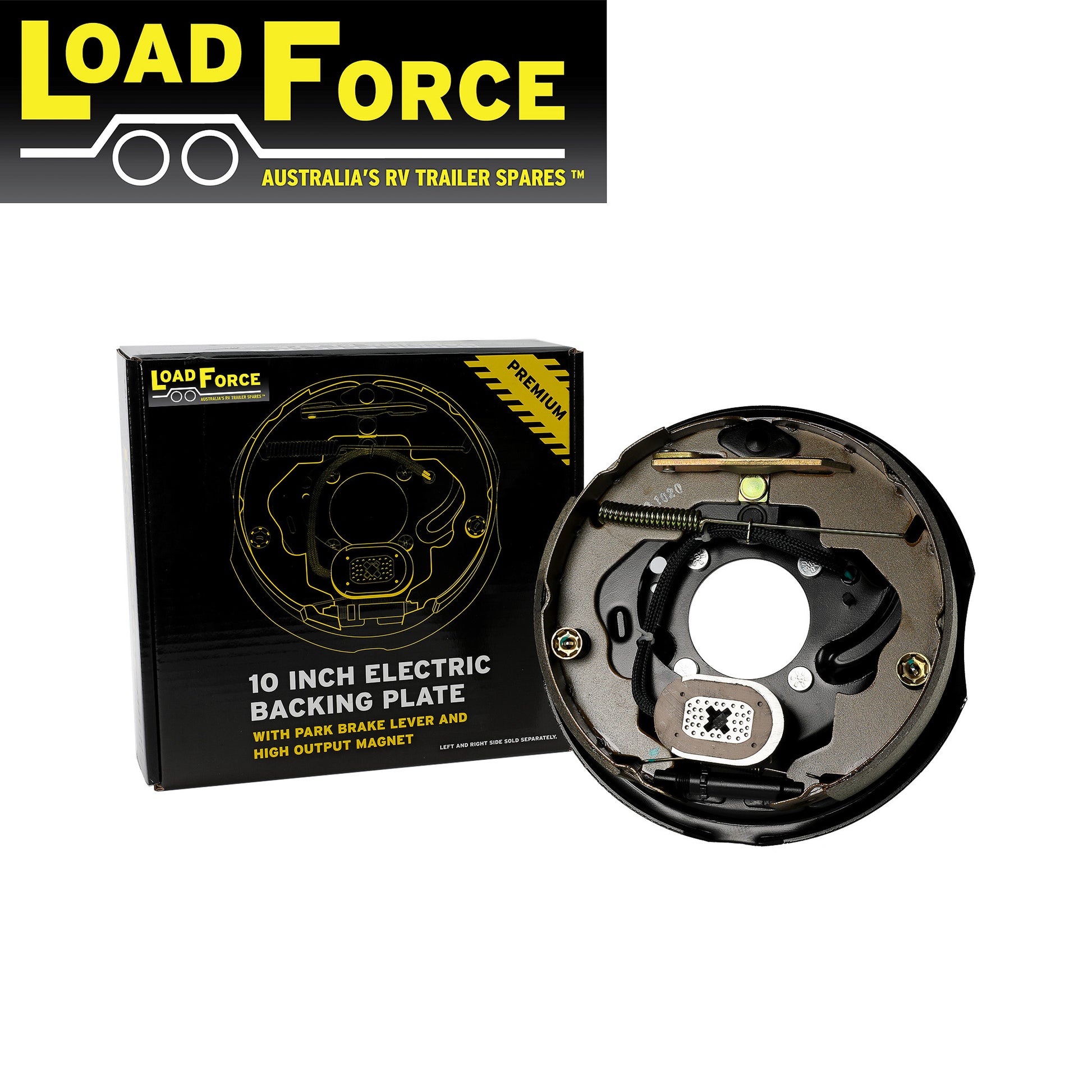

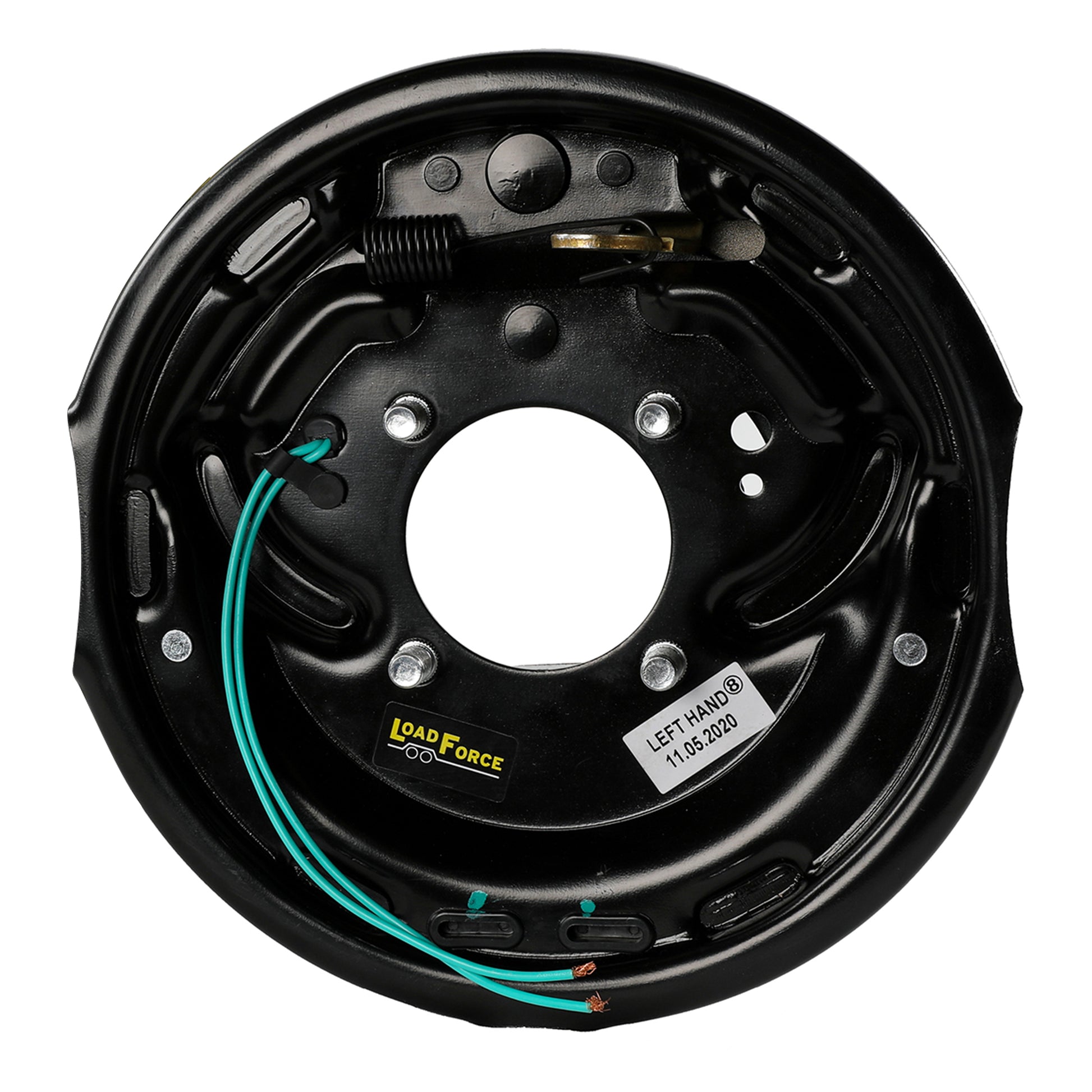

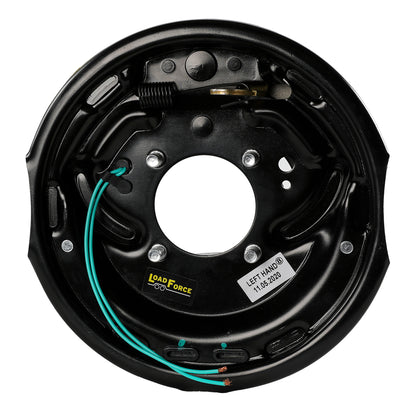

LoadForce 10 inch left hand electric backing plate assembly with park brake

Part #: EBP10L
Includes GST. Shipping calculated at checkout.
In stock and ready for shipping

Product Information

LoadForce premium 10-inch left-hand electric brake backing plate assembly with park brake. Electric backing plate assemblies are left and right-hand side specific on trailers and caravans due to the direction of the park brake lever. The LoadForce backing plates are Australian design some times referred to as AL-KO type and are interchangeable with AL-KO and also the American style backing plates such as Dexter.

Four 7/16 inch nyloc nuts are required to fit this to the weld on mounting plate. These can be found here.

Full range of serviceable backing plate spare parts are available for this product.

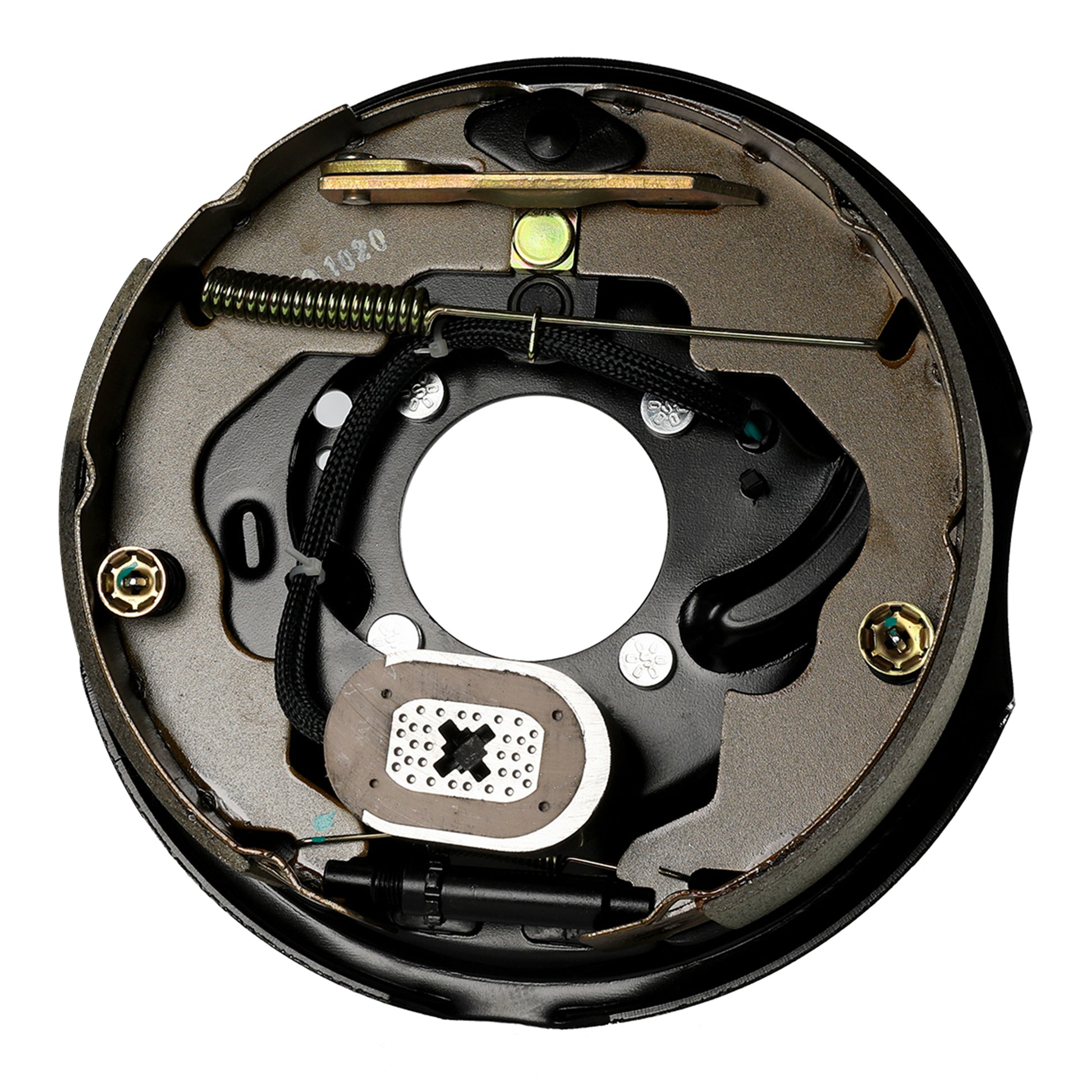

Wear depth indicators are small holes located around the front face of the electric magnet. When they are not visible, the magnet has reached the end of its service life. Replacement electric backing plate magnets are also available.
