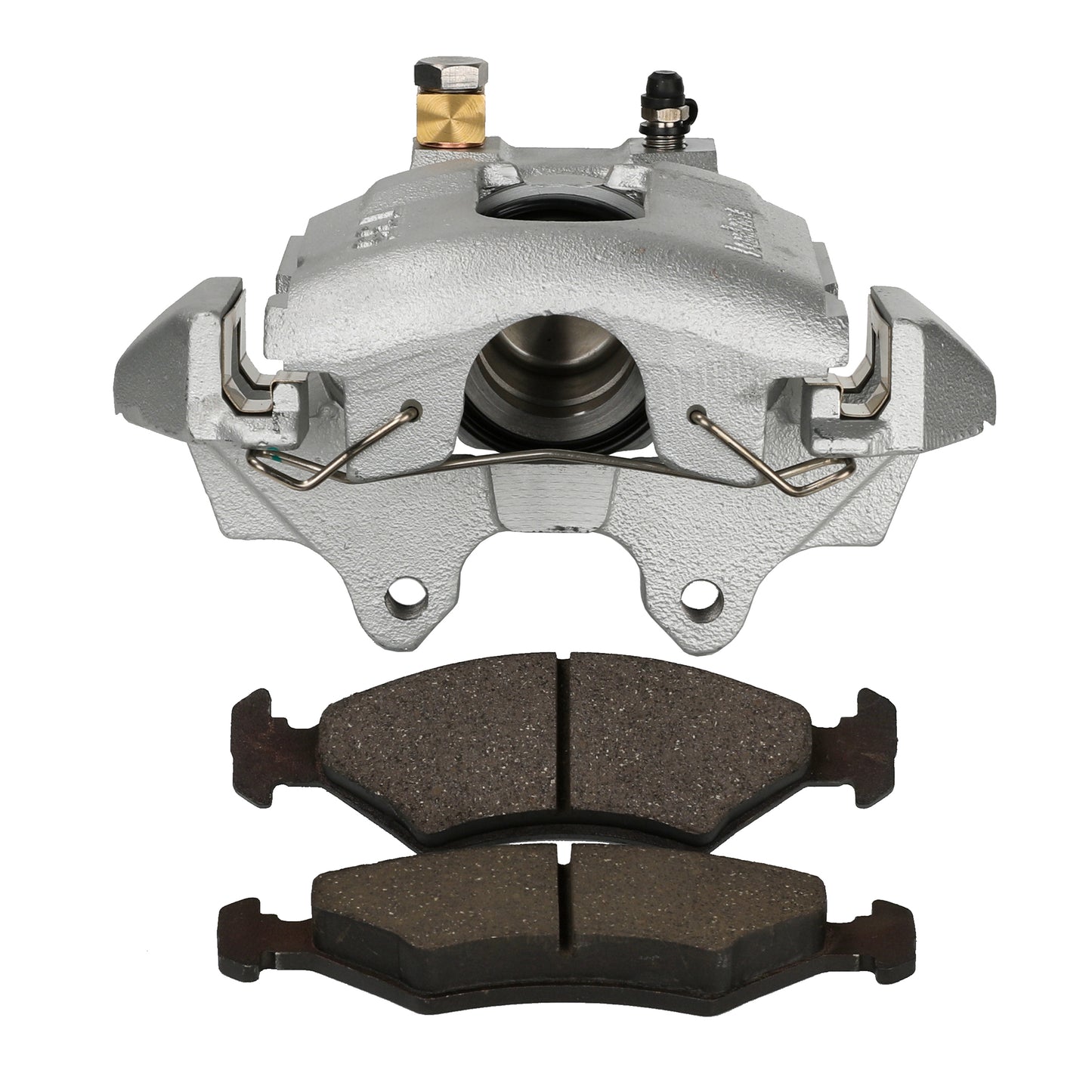

LoadForce T35-A aluminium brake caliper (replaces UFP DB35)

Product Description
$220.00 incl. GST
Maximum quantity available reached.

LoadForce T35-A aluminium brake caliper is an improved design and a direct replacement for the UFP DB35 model found on allot of American trailers.

The T35-A has an upgraded billet stainless steel caliper piston compared with the orginal anodised aluminium piston that will corrode over time once the anodising lets go. The LoadForce T35-A also has a number of small cosmetic upgrades that improve the overall finish of this caliper.

Fits on 19mm (3/4 inch) up to 24mm disc. 1 x UFPBOLTKIT required for mounting. The caliper comes complete with brake pads. The bleed screw and union are interchangeable so the caliper can be set for either left hand or right sides of the trailer.

When connecting your new brake caliper to hydraulic brake lines you must flush out the old brake fluid from the actuator (master cylinder or electric/hydraulic pump) and brake lines before connecting this new brake caliper.

Once flushed, then connect brake lines, refresh the system with new brake fluid and bleed air from the brake system.

Compatible with Dot 3 and Dot 4 brake fluid, however, we do recommend using Dot 4 Brake fluid as it has higher moisture resistance.

Failure to flush the system could void warranty.

Part no. : T35-A
