Hub Drum 12x2 inch 6 Stud HDP Parallel 25590/20 Japan Bearing

Name: Hub Drum 12x2 inch 6 Stud HDP Parallel 25590/20 Japan Bearing
Brand: LoadForce
SKU: HD12X2HDP
Price: 419.99 AUD
Availability: InStock

$419.99

Tax included. Shipping calculated at checkout.

HD12X2HDP

Product Information

LoadForce hub brake drum 12 inch x 2 inch 6 stud with HDP 25590/20 bearing turn. Supplied with quality Japanese bearings and Australian made hub seal. Commonly used on imported camper trailers, MDC, Black Series, Goldfield, Platinum, T-Rex, CUB, Austrack, Sterling, Sovereign, Ezytrail, Star Vision and other brands of camper trailers and caravans.

6 stud measurements: Stud size: 9/16 inch.

PCD (Pitch circle diameter): 139.7mm (5.5 inches). Stud distance: 70mm.

Bearing combination: Parallel 25590/20 Hub seal: 2.25" x 3.375" x 0.5"

Spigot diameter: 108mm

Hat height 84mm over all height 133mm

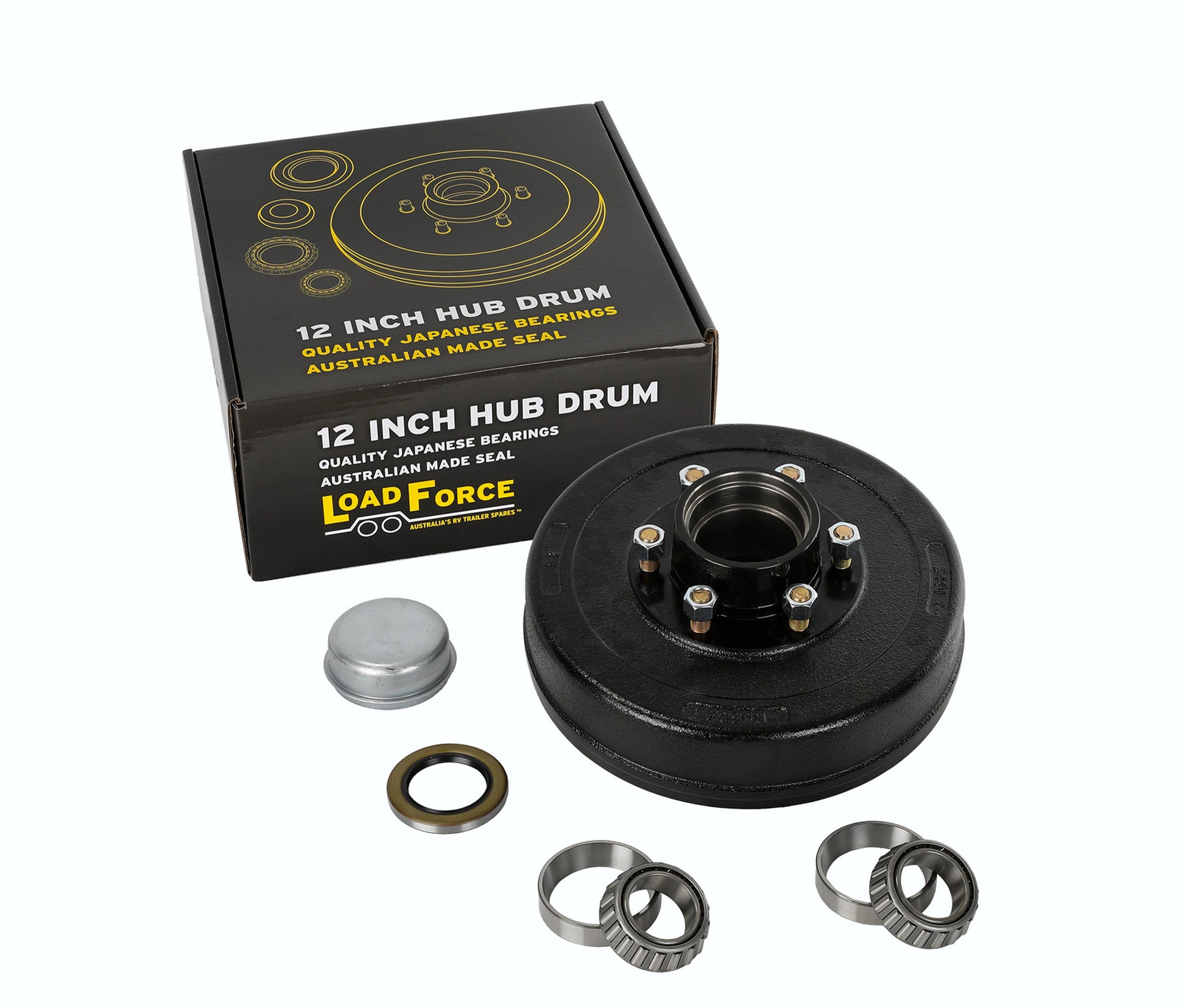

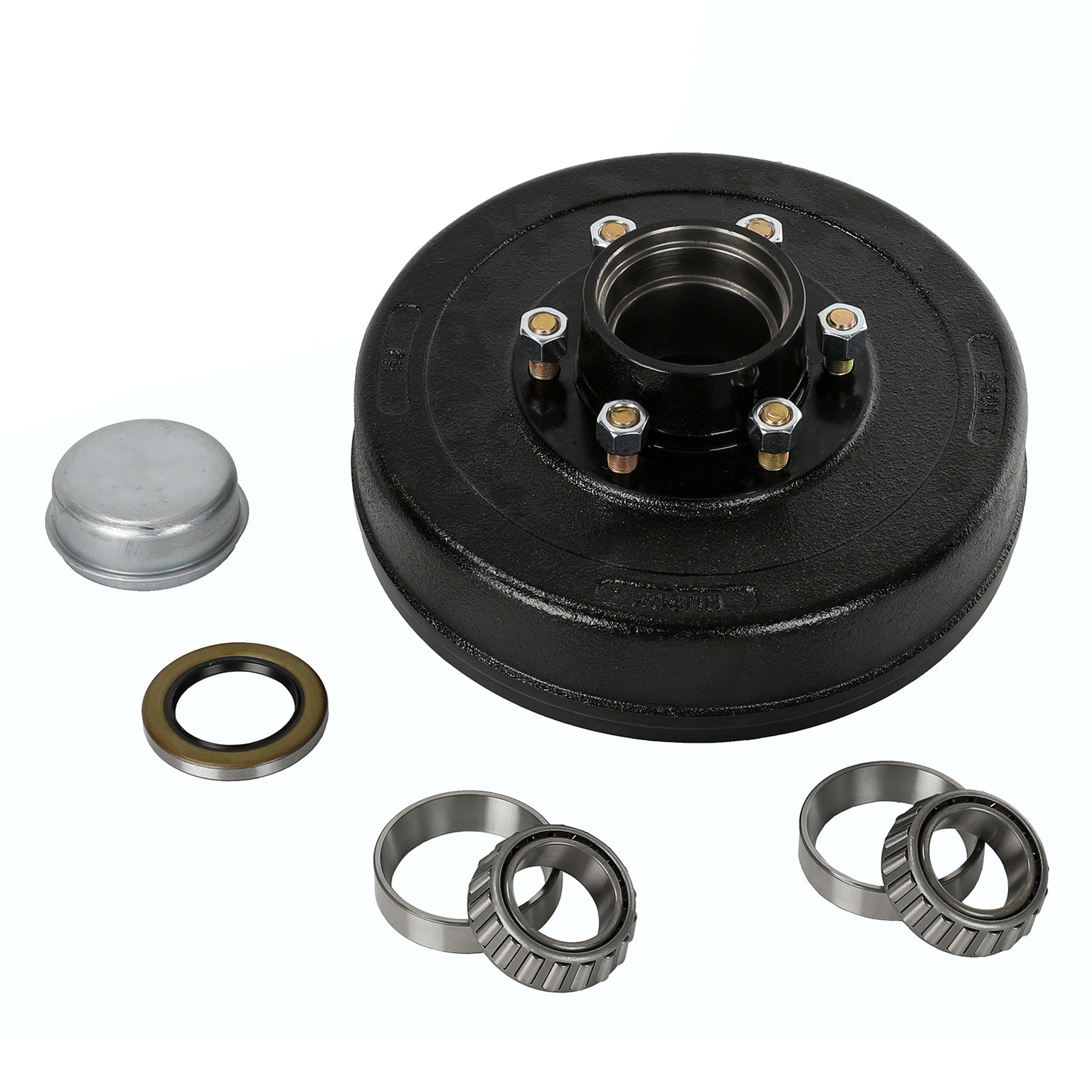

All brake drum assemblies come boxed complete with studs, nuts, bearings, dust cap and hub seal.

Specifications

Specifications:
Drum Diameter: 300mm (12")
Drum Width: 2 inch
Hat Height: 84 mm (Overall Height: 133 mm)
Stud Pattern: 6 Stud Landcruiser (9/16" Stud Diameter)
PCD: 139.7mm
Stud Distance: 70mm
Koyo Japanese Bearings: HDP Parallel - 25590/20 & 25590/20 bearings and cones
High quality bearing seal - 2.25" x 3.375" x 0.5"
Dust cap
Fitted studs & nuts
Please note: Multiple seal sizes will fit this drum. If you require a different size please let our friendly staff know.
